Cabin Temperature Sensor / Switch: Service and Repair

REMOVAL
1. Remove the center A/C register.

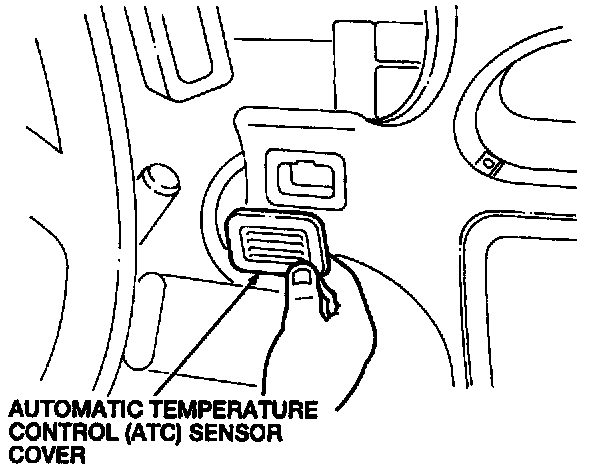

2. Remove the Automatic Temperature Control (ATC) sensor cover.

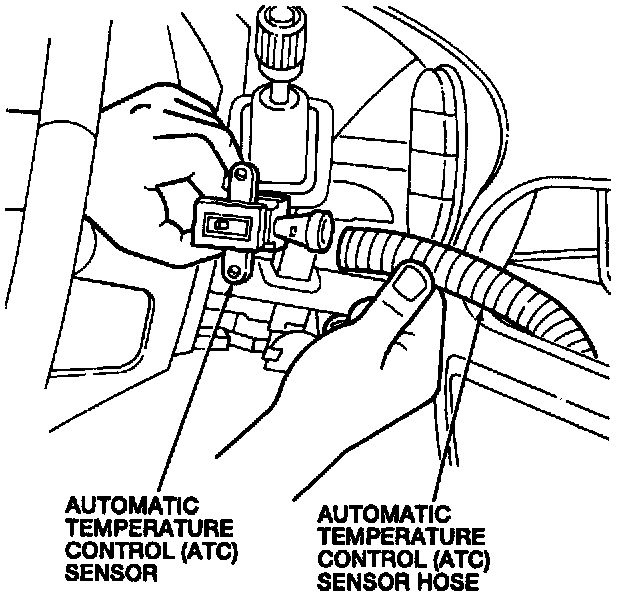

3. Disconnect the ATC sensor hose.
4. Disconnect the ATC sensor electrical connector.
5. Remove the two ATC sensor screws and the ATC sensor.

INSTALLATION
1. Connect the ATC sensor hose.







2. Position the ATC sensor in the instrument panel and install ATC sensor screws.
3. Connect the ATC sensor electrical connector.
4. Snap the ATC sensor cover in place.
5. Install the center A/C register.
