Home >> Mercury Truck >> 1997 >> Mountaineer V8-302 5.0L VIN P EFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Speed Sensor, A/T >> Output Shaft Speed Sensor

Output Shaft Speed Sensor

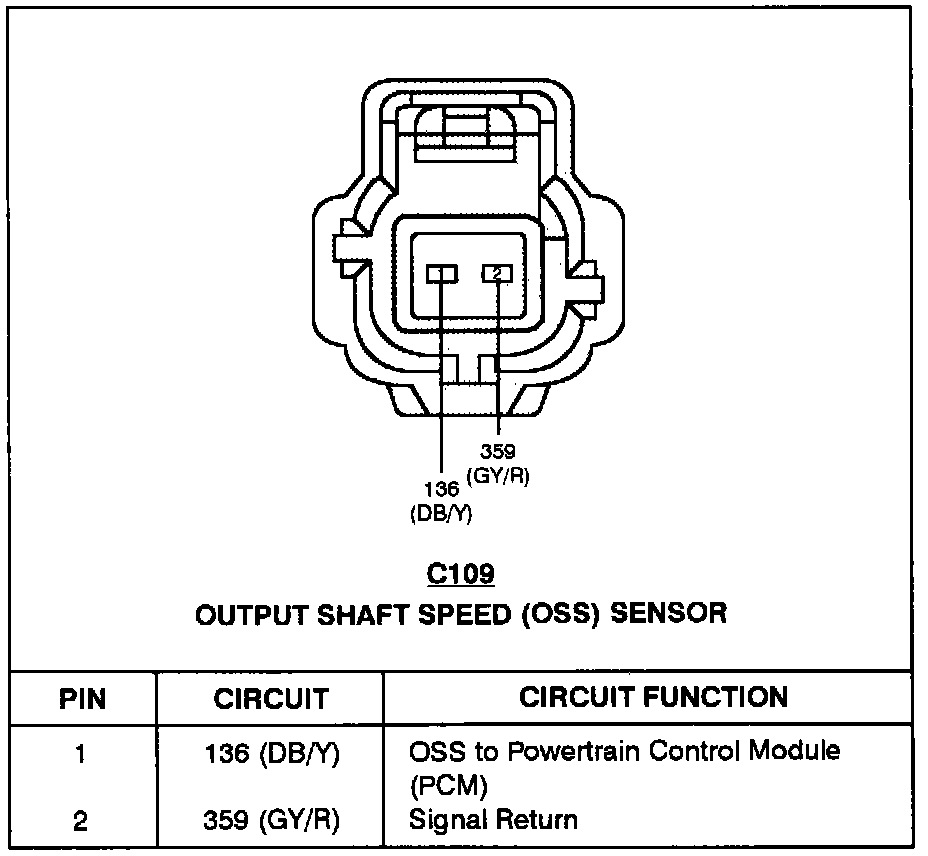

Output Shaft Speed Sensor (C109):
