Mercury Truck
>>
1997
>>
Mountaineer V8-302 5.0L VIN P EFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Temperature Control Switch
Temperature Control Switch

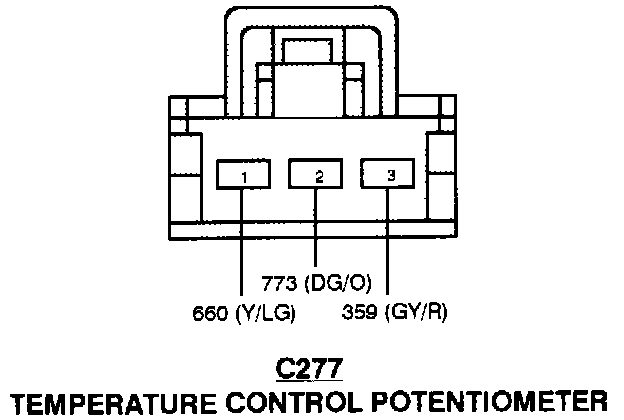

Temperature Control Potentiometer (C277):
