Fuse and Relay Box, As-Built Configuration
Fuse and Relay Box, As-Built Configuration

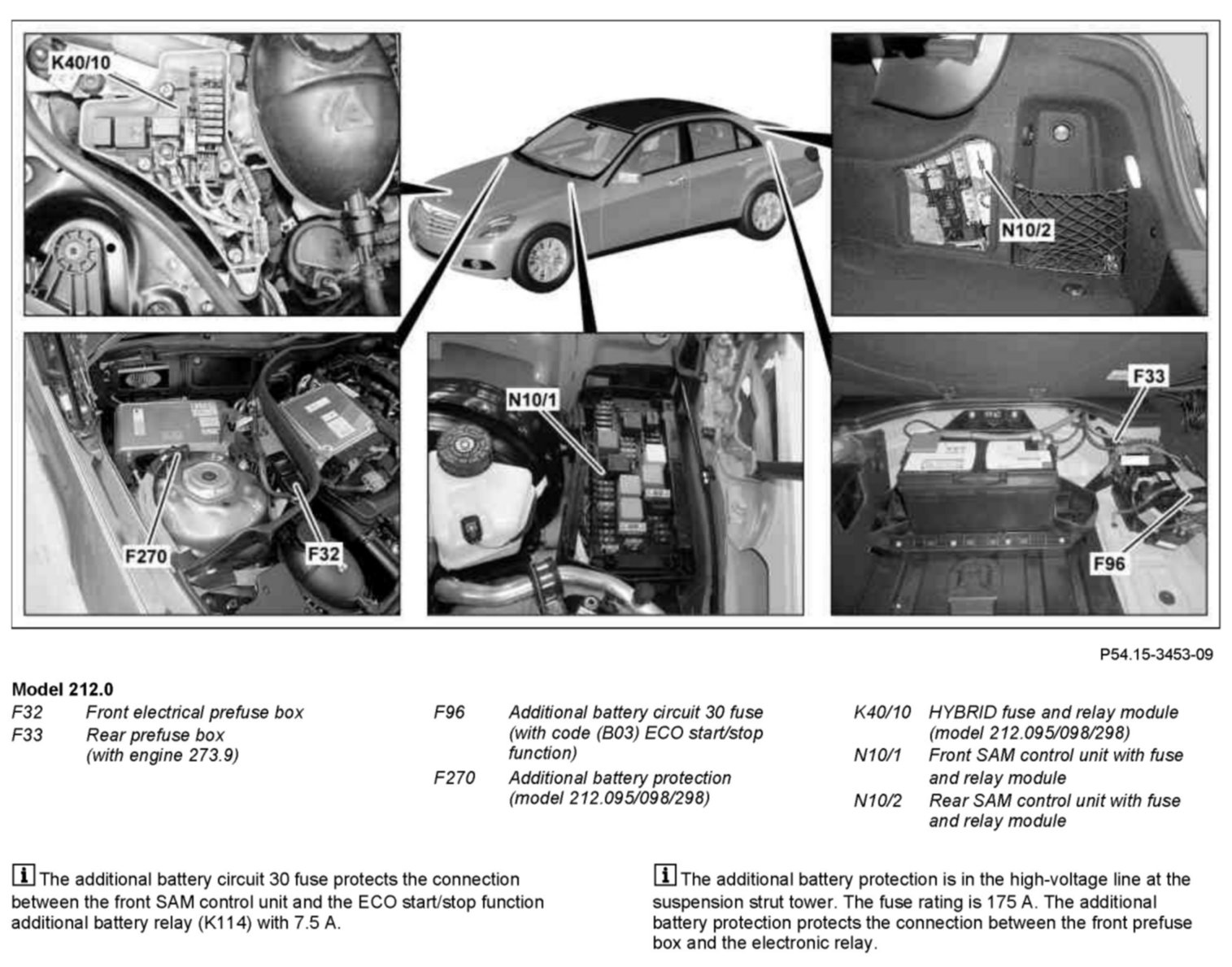

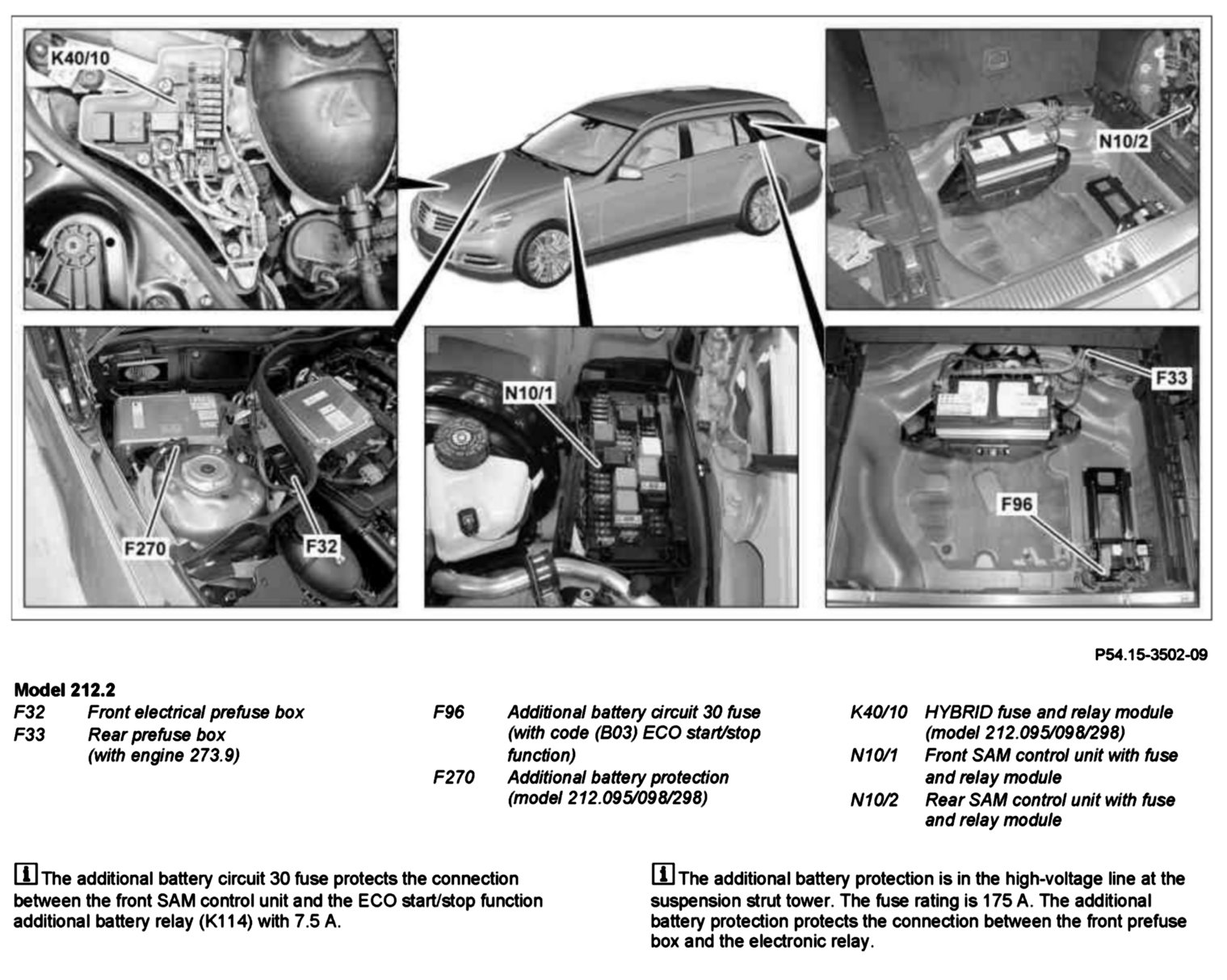

GF54.15-P-0800FL Fuse and Relay Box, As-Built Configuration
