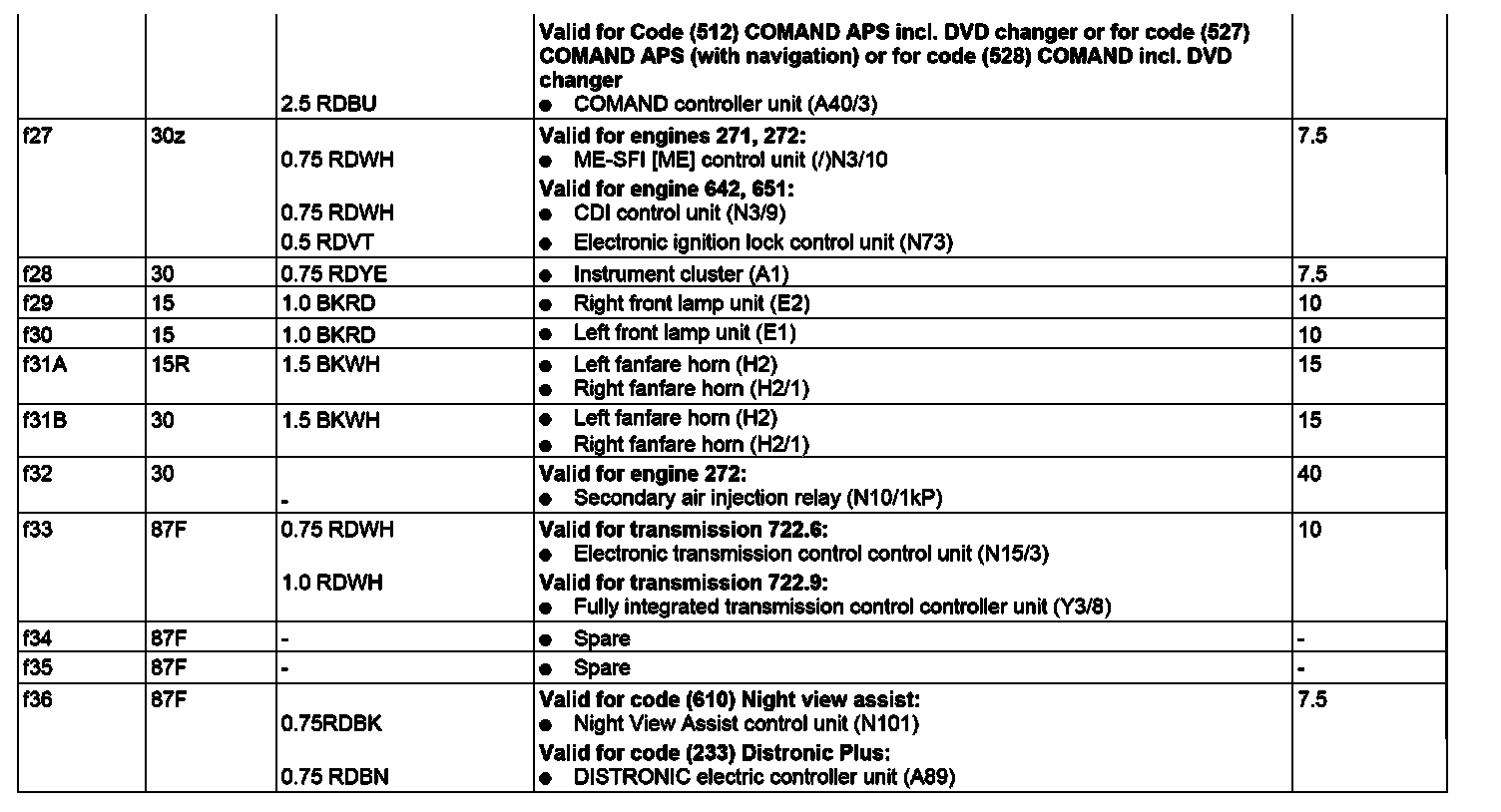

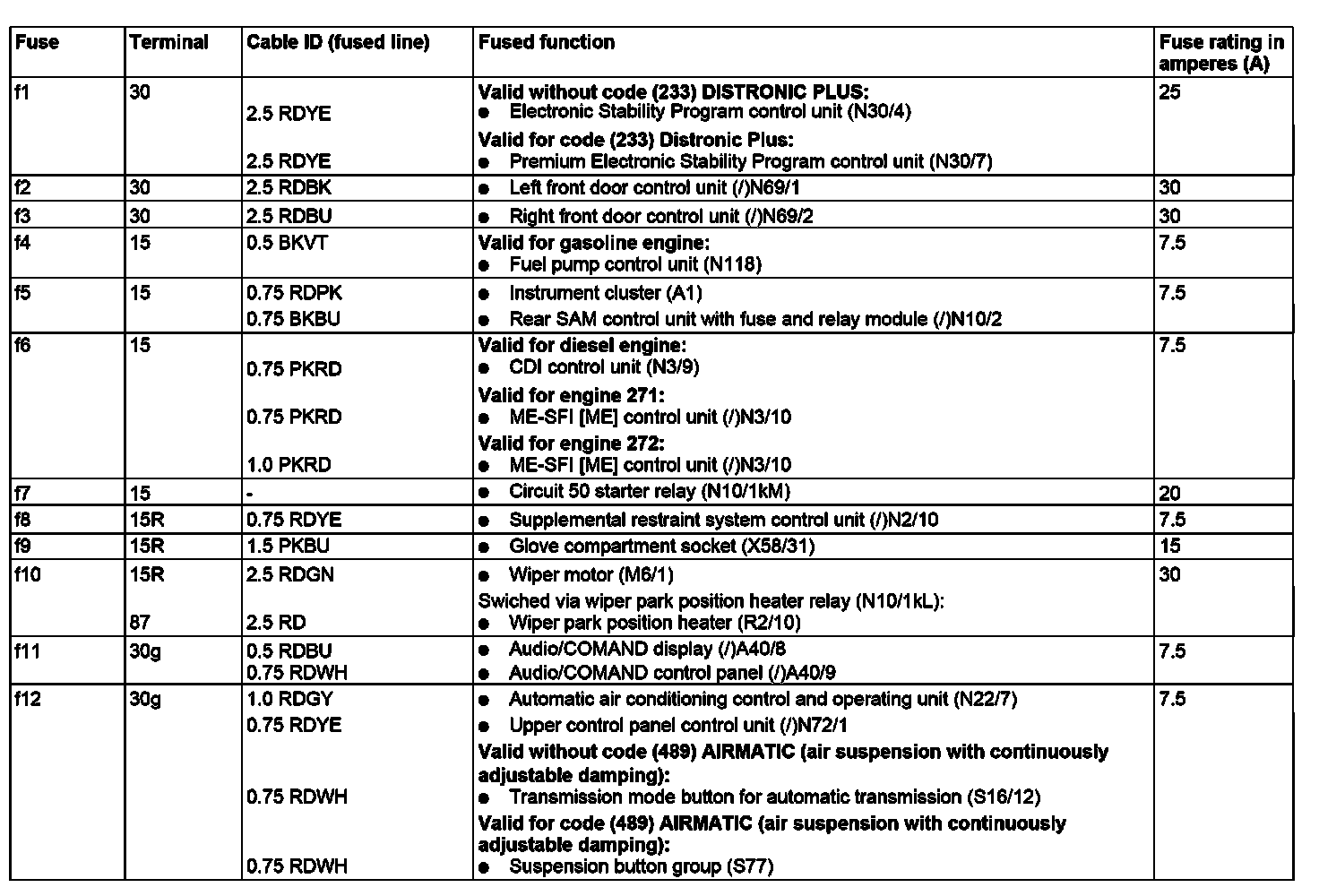

Fuse Assignment of Fuse and Relay Box In Left Engine Compartment

GF54.15-P-1256-03FL Fuse Assignment of Fuse and Relay Box In Left Engine Compartment

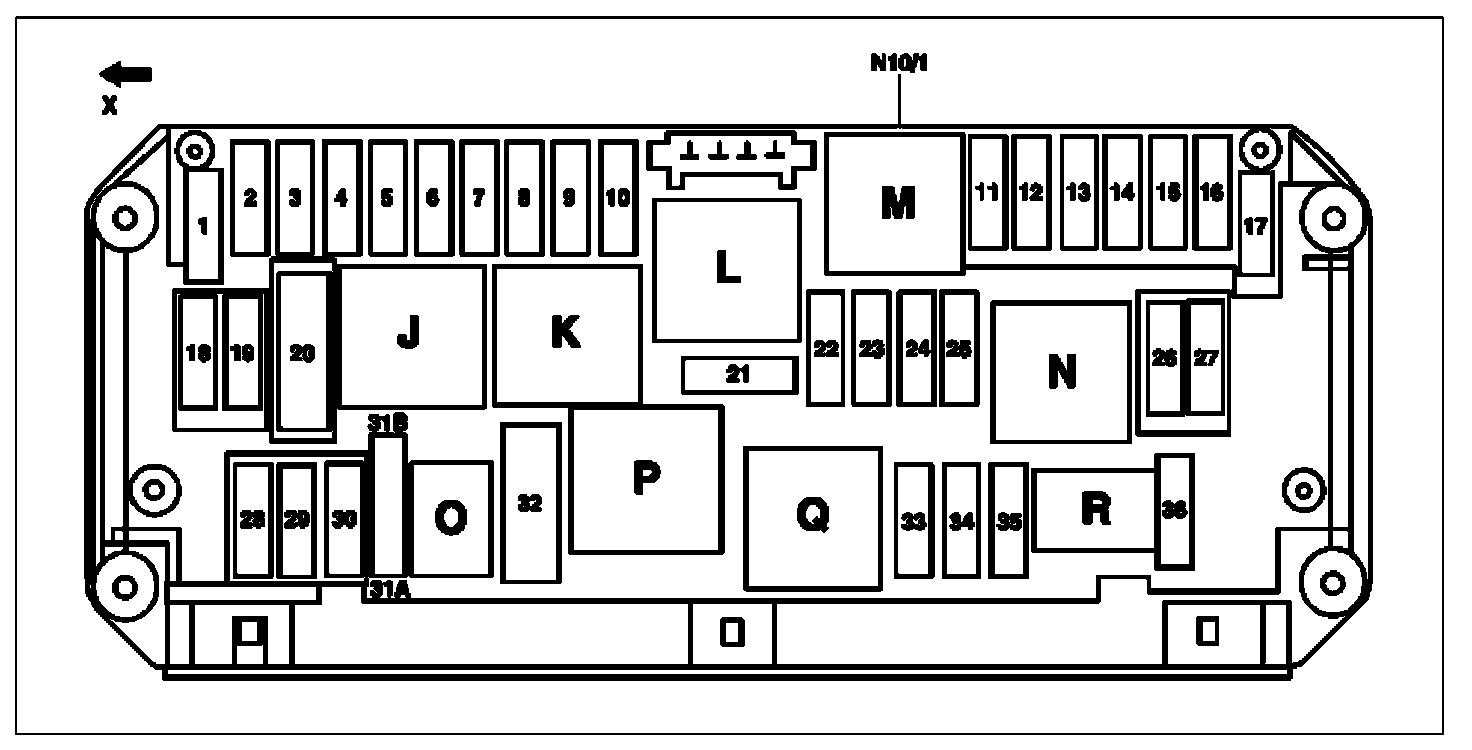

N10/1 Front SAM control unit with fuse and relay module
X Direction of travel
