Power and Ground Distribution
>>
Fuse
>>
Locations
>>

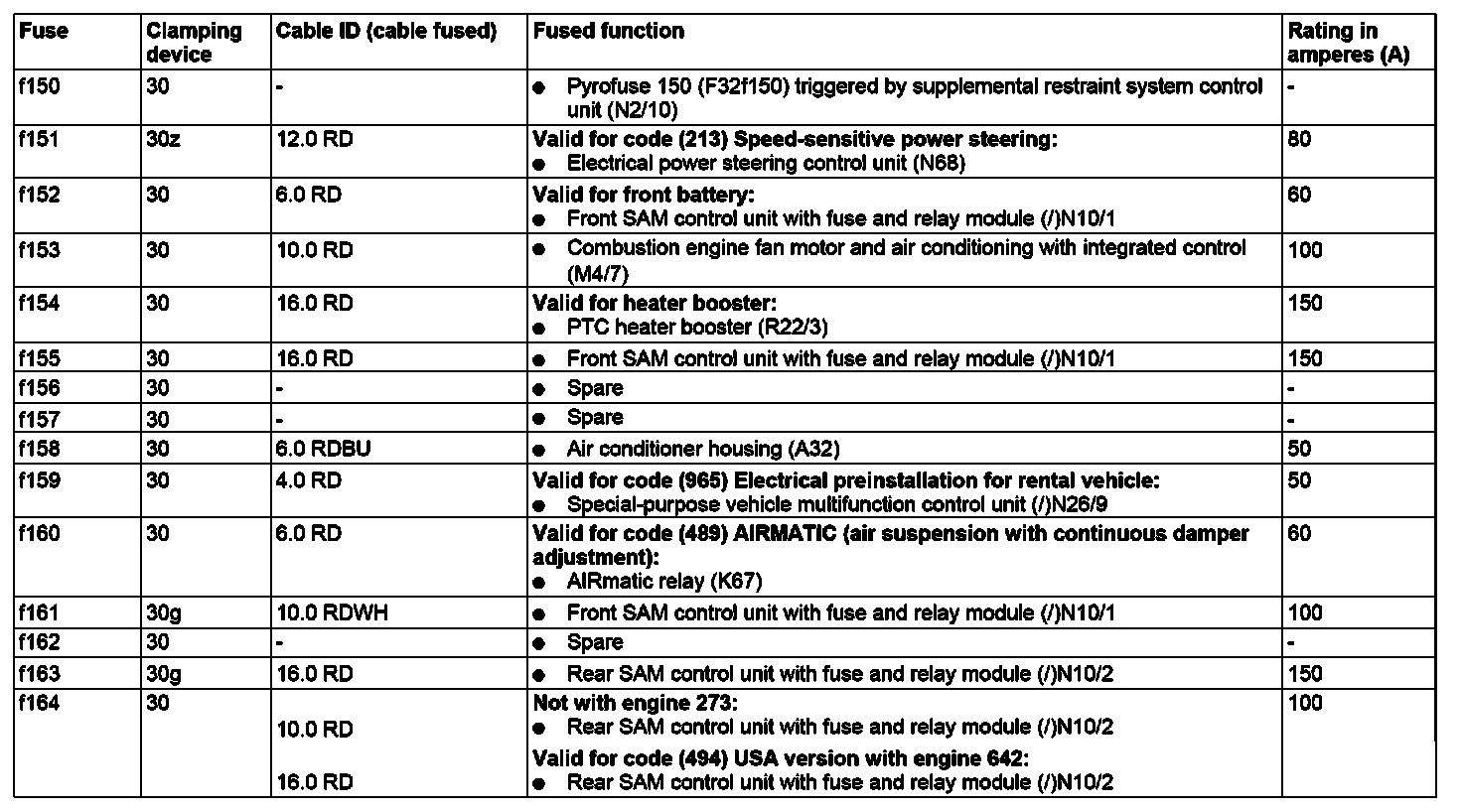

Fuse Assignment of Front Prefuse Box
Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07FL Fuse Assignment of Rear Prefuse Box
F33

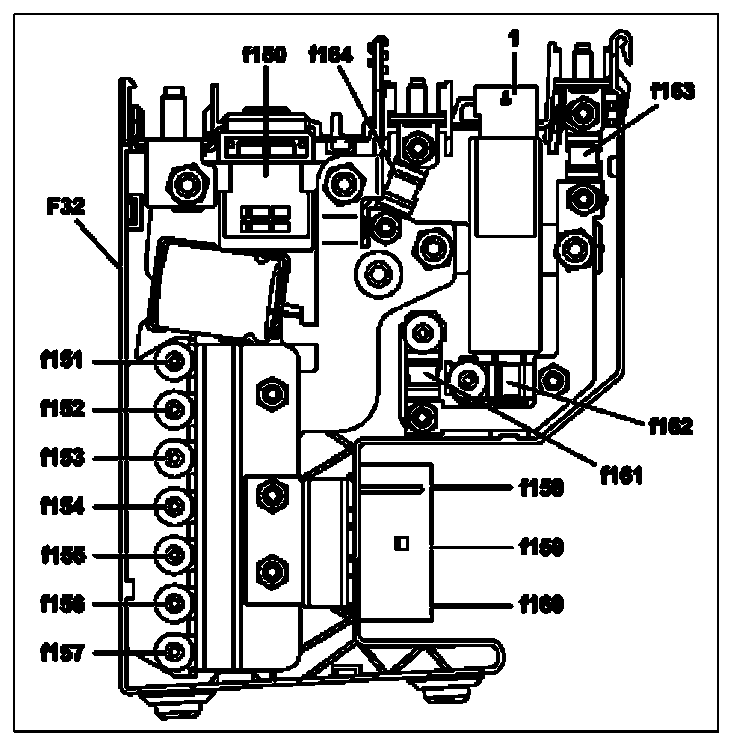

Front prefuse box
