Starter Motor: Service and Repair

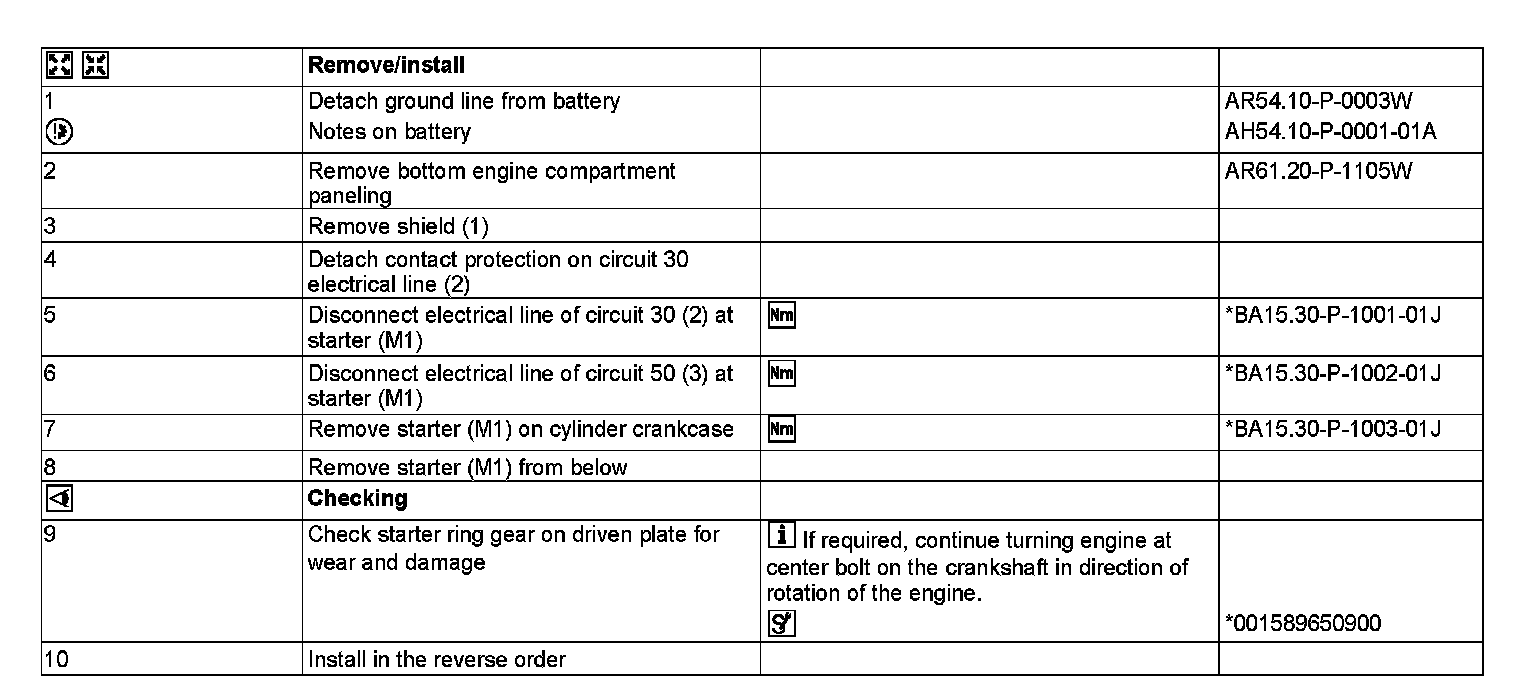

AR15.30-P-7100W Remove/Install Starter
ENGINES 152, 276 in MODEL 172

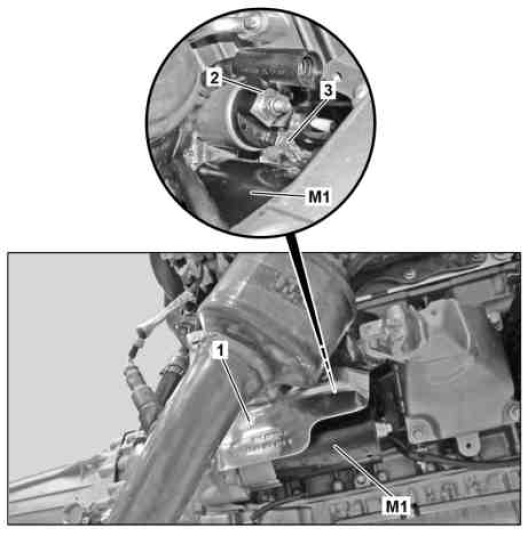

Shown on engine 276

1 Shield
2 Electrical line, terminal 30
3 Electric cable circuit 50

M1 Starter











001 589 65 09 00
Wrench socket
