Engine Control Module: Service and Repair

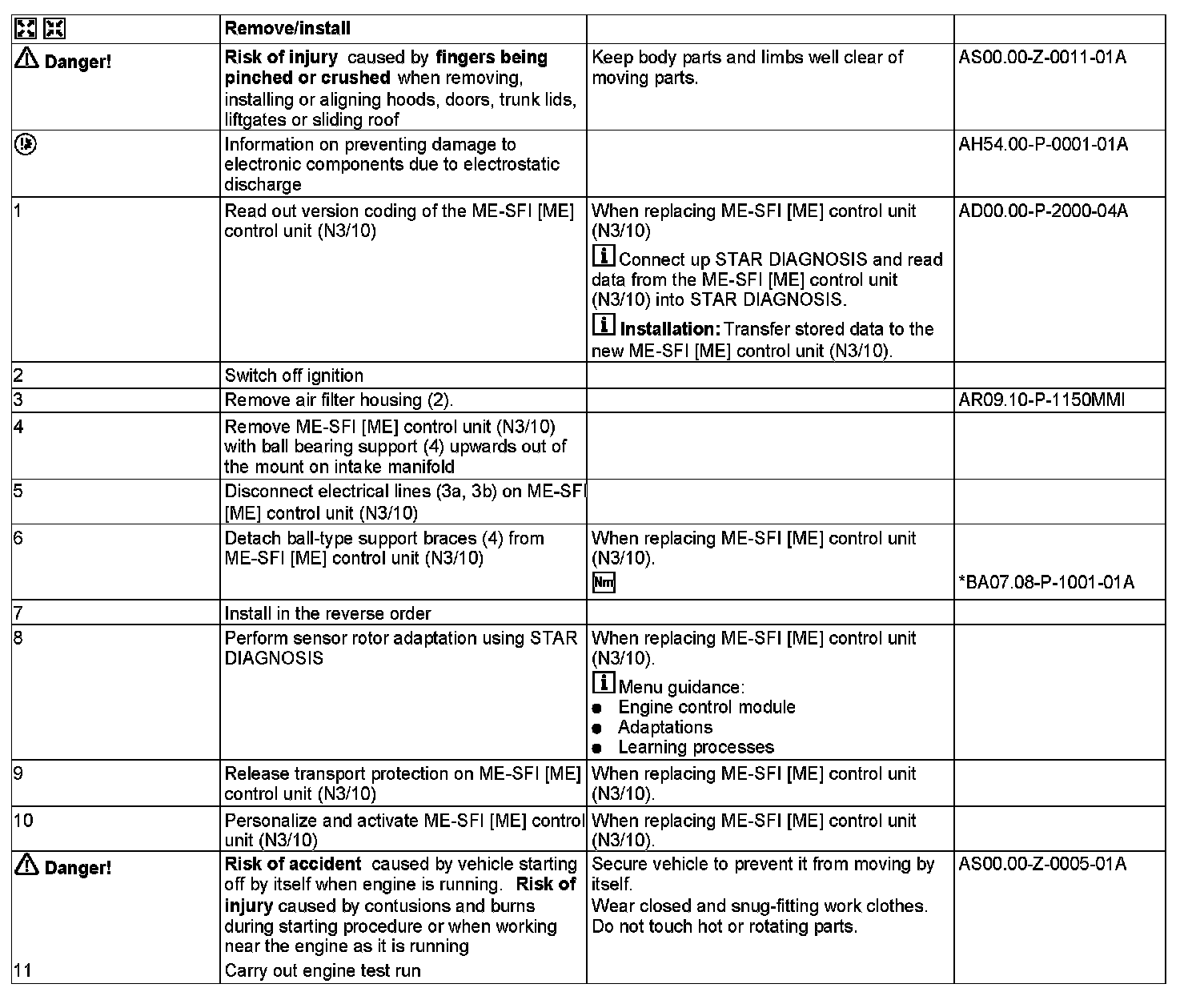

AR07.08-P-7008MMI Remove/Install Injection System Control Unit
ENGINES 152.9 in MODEL 172.4

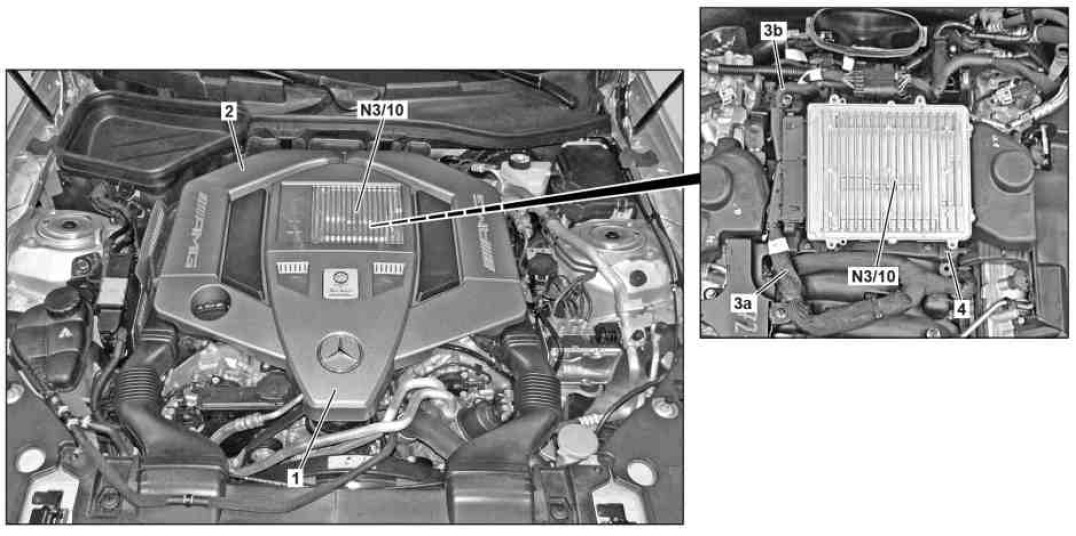

1 Front engine cover
2 Air cleaner housing
3a Electrical line
3b Electrical line
4 Ball head support

N3/10 ME-SFI [ME] control unit
