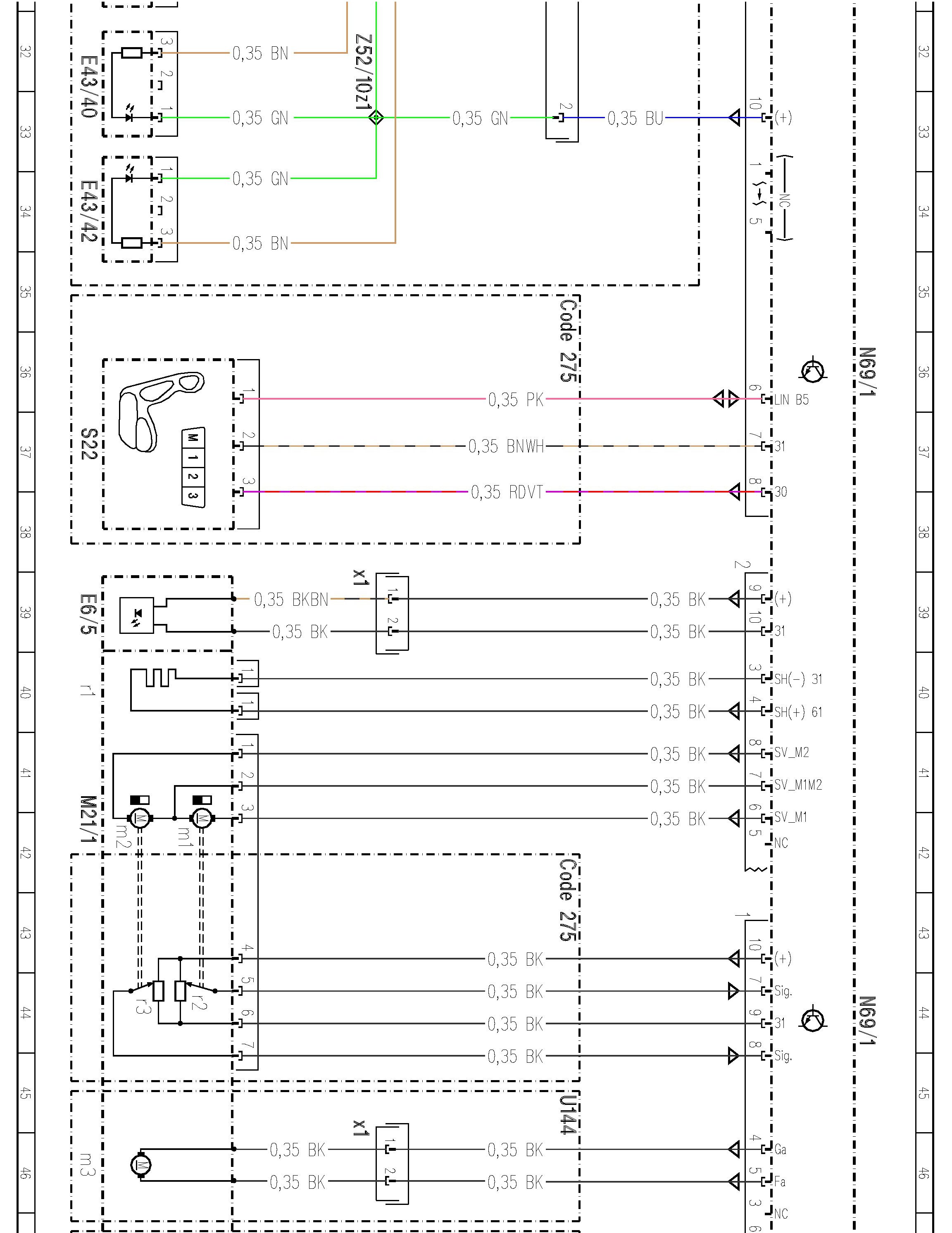

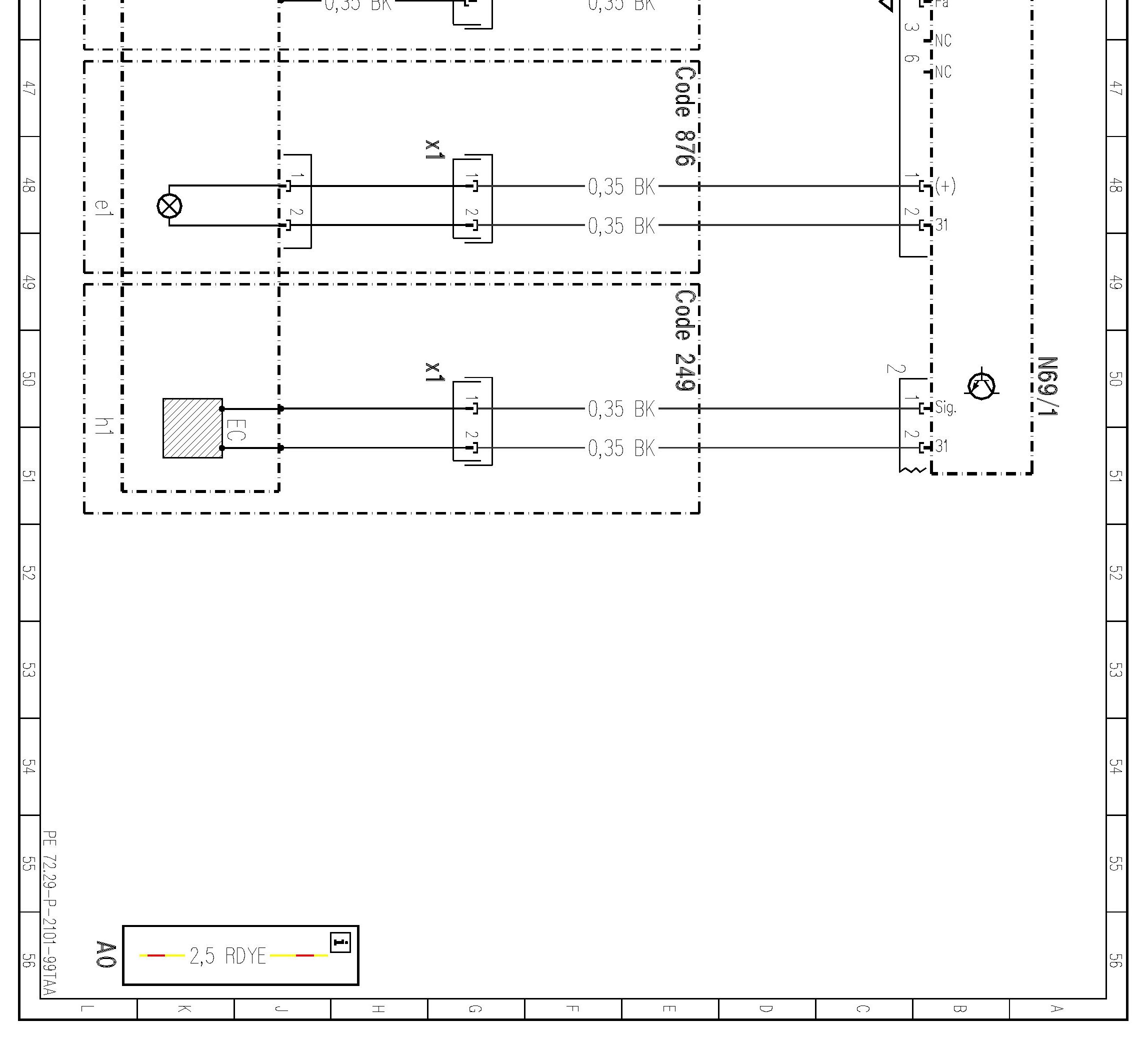

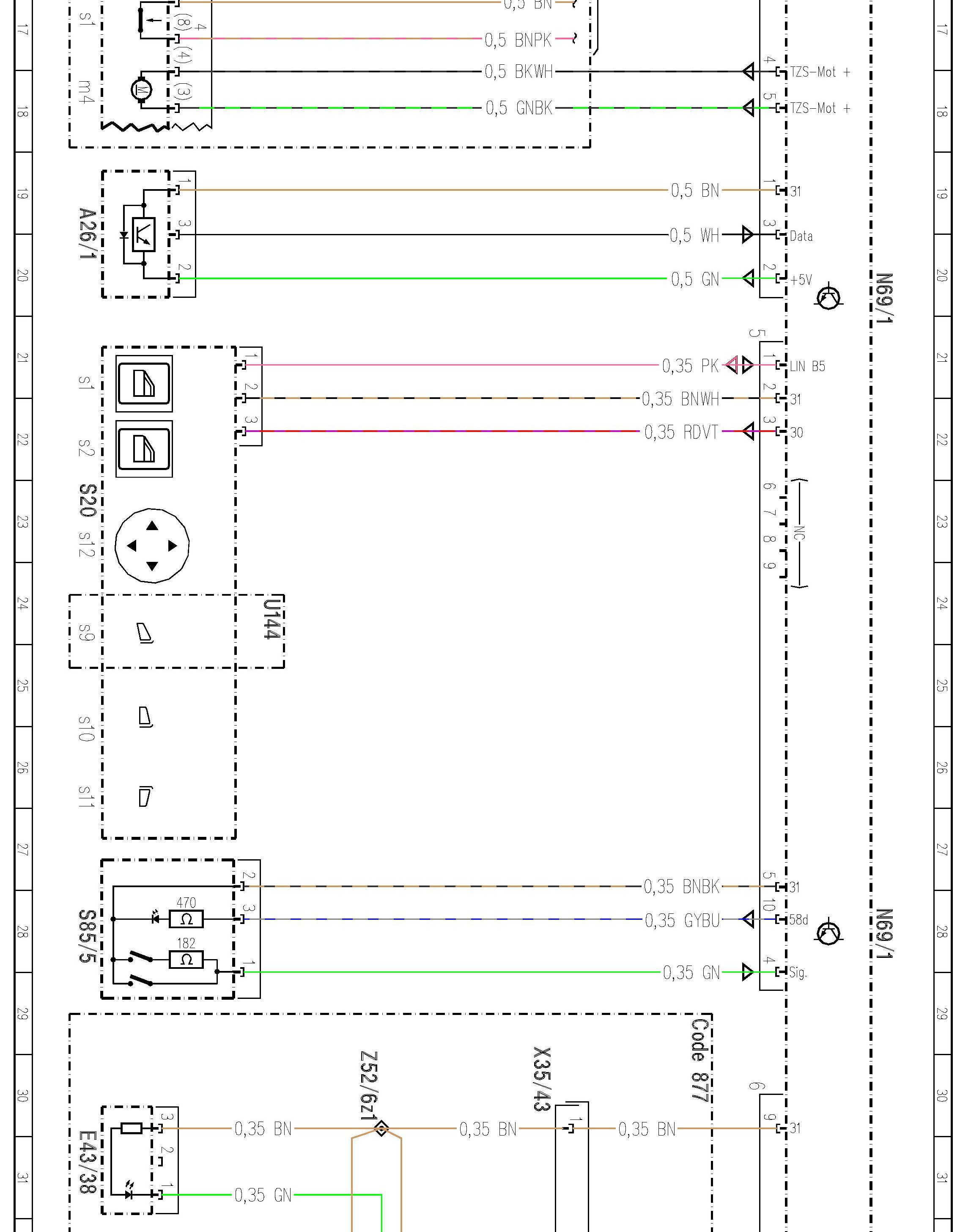

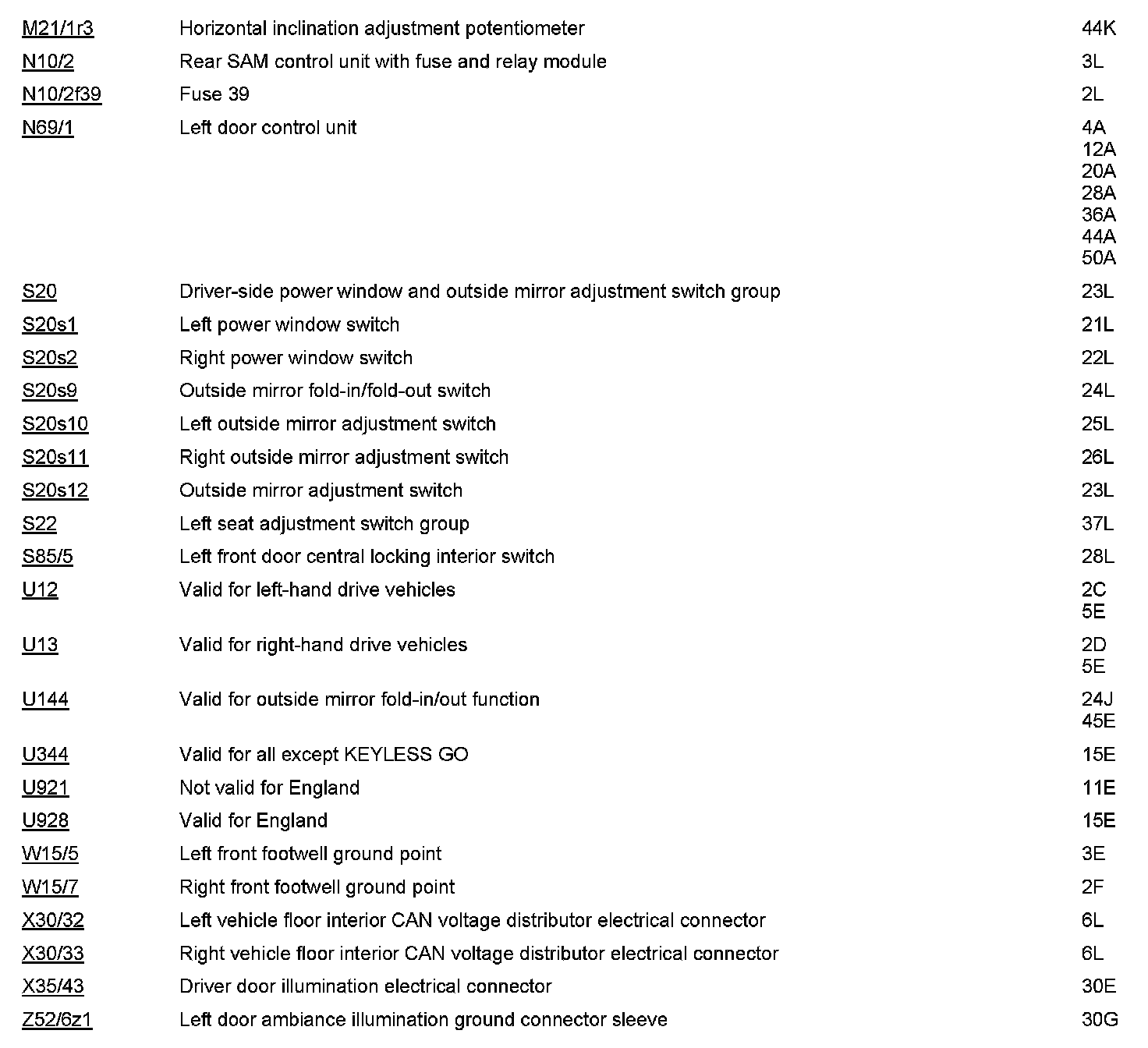

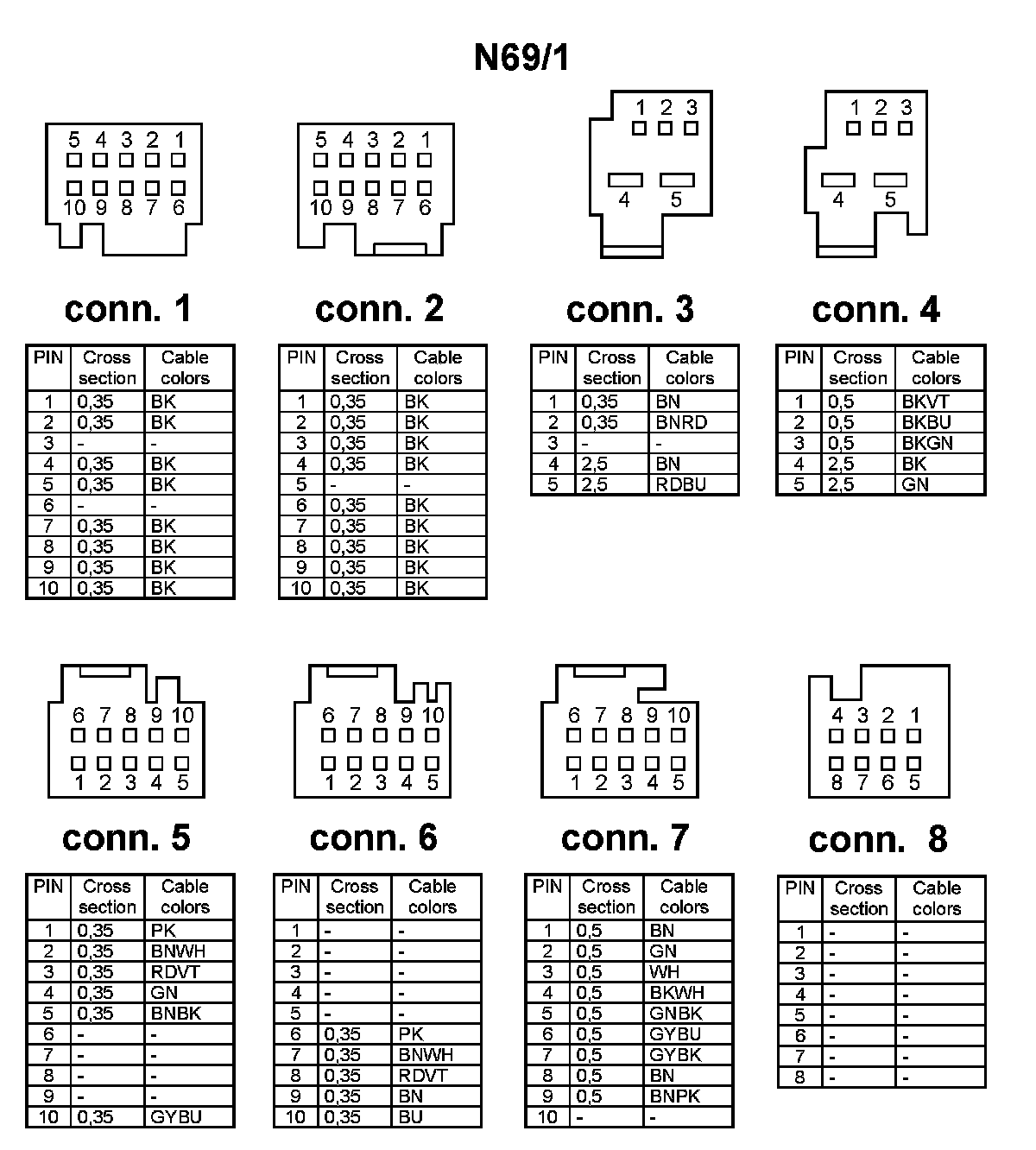

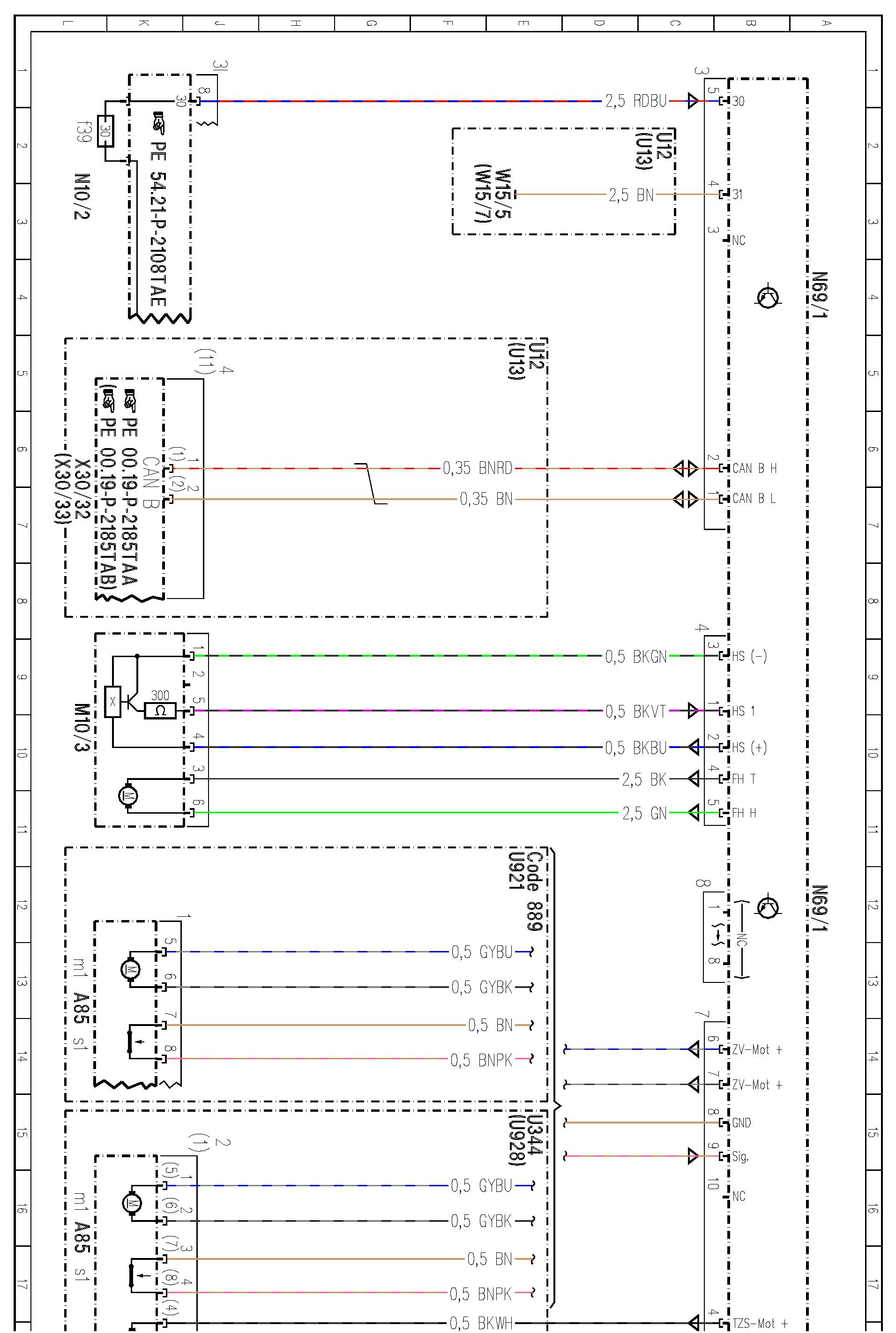

PE72.29-P-2101TAA Left Front Door Control Unit (DCU)
PE72.29-P-2101TAA Left Front Door Control Unit (DCU)
PE72.29-P-2101TAA Left Front Door Control Unit (DCU)
MODEL 172.4
Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Locations
