Air Cleaner Housing: Service and Repair

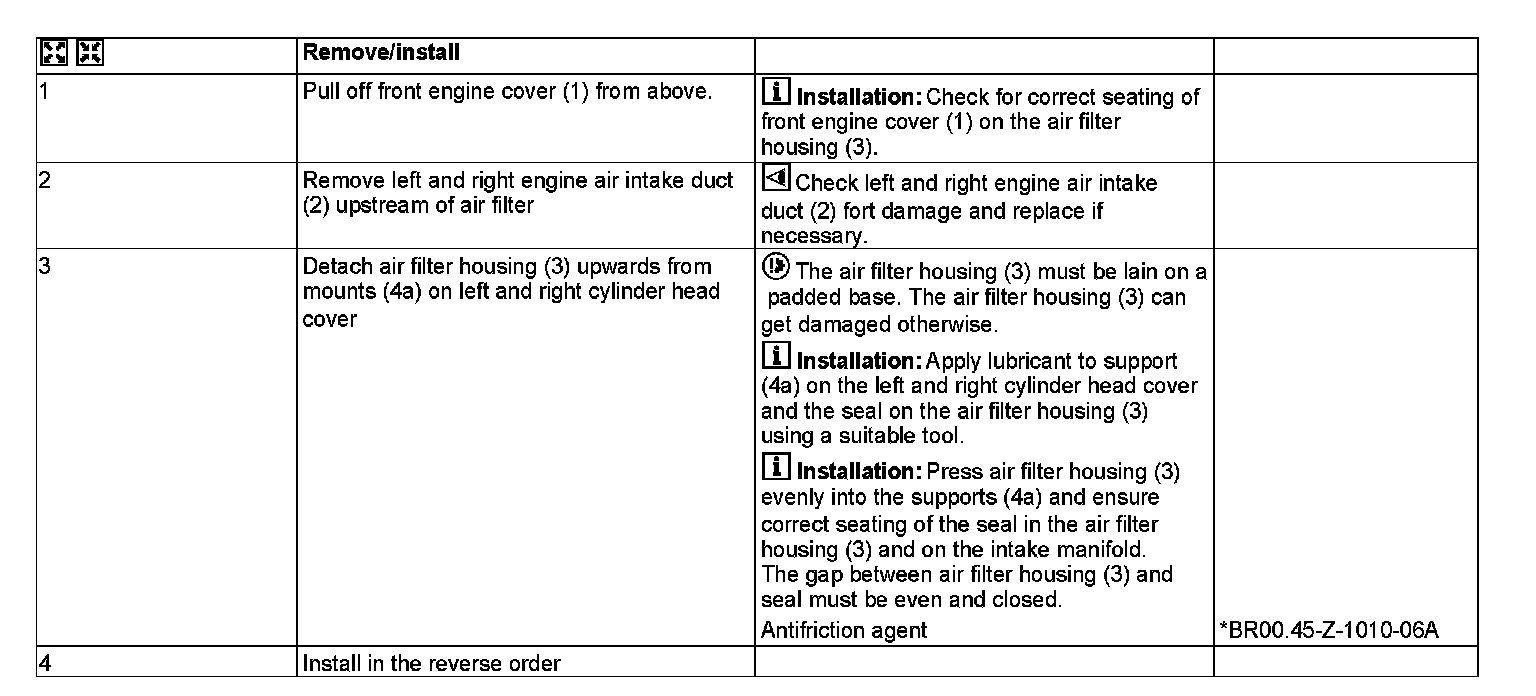

AR09.10-P-1150MMI Remove/Install Air Filter Housing
ENGINES 152.9 in MODEL 172.4

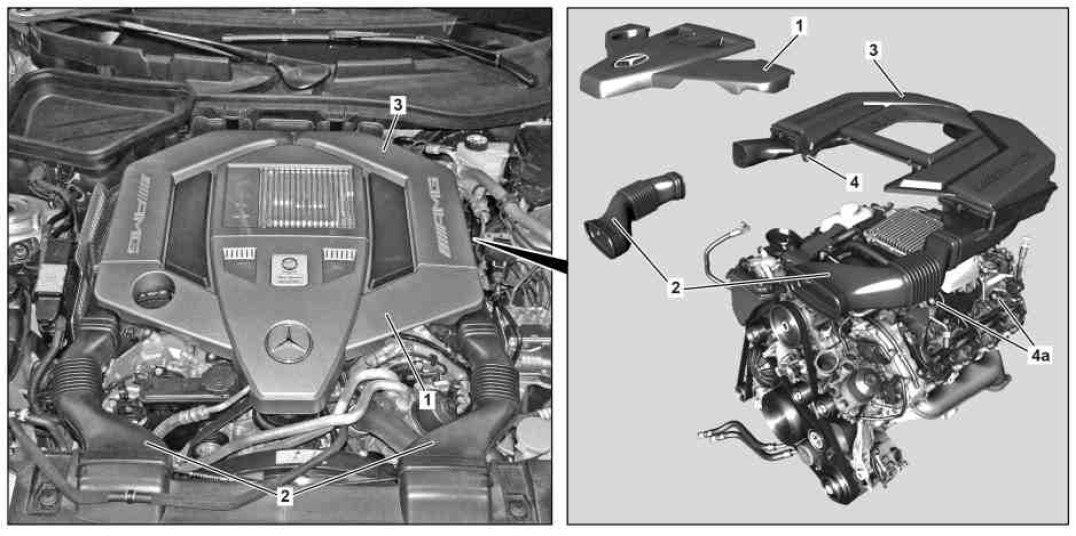

1 Front engine cover
2 Engine air intake duct
3 Air filter housing
4 Clamp
4a Supports
