Ignition Coil Pack: Service and Repair

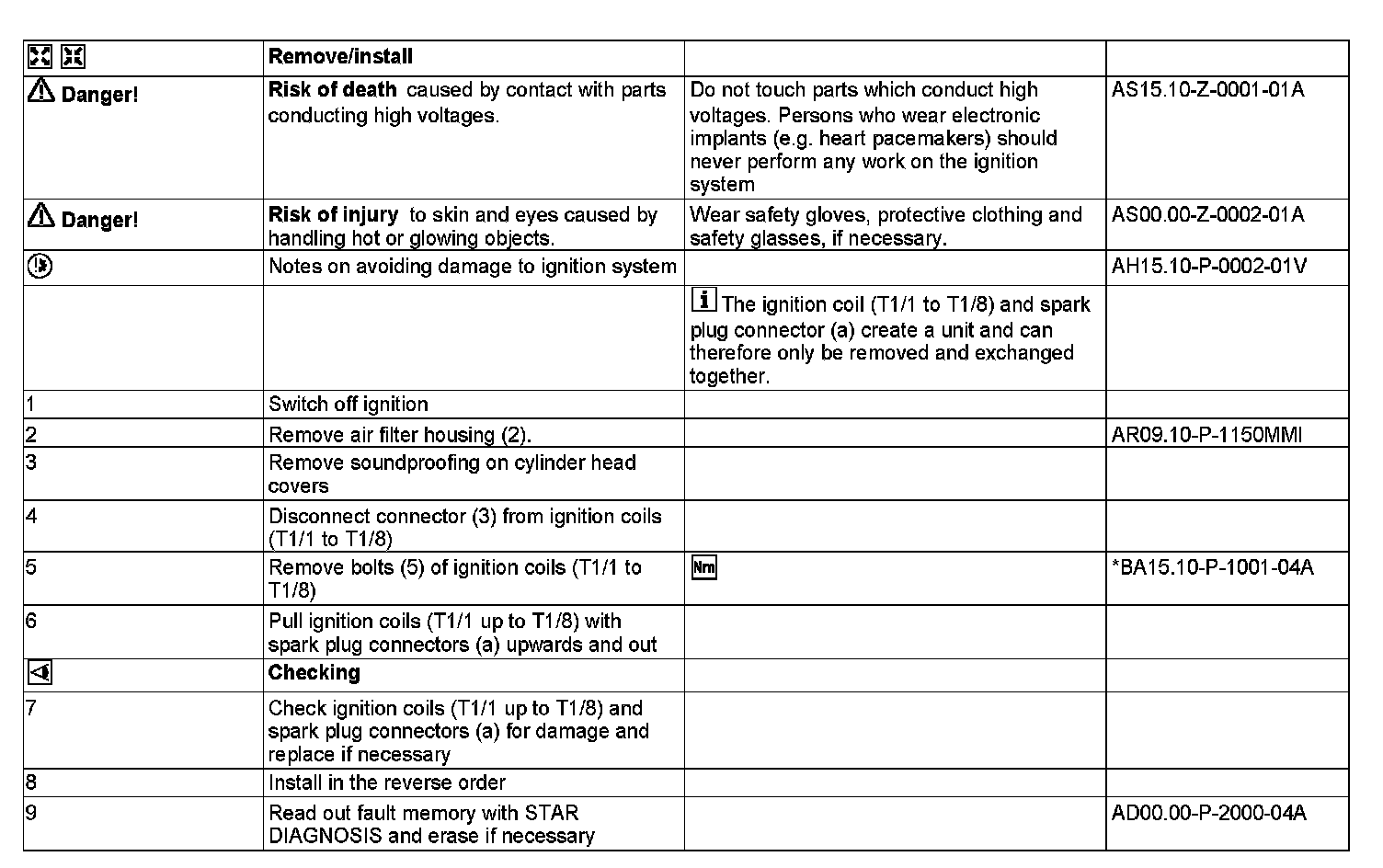

AR15.12-P-2003MMI Remove/Install Ignition Coils
ENGINES 152.9 in MODEL 172.4

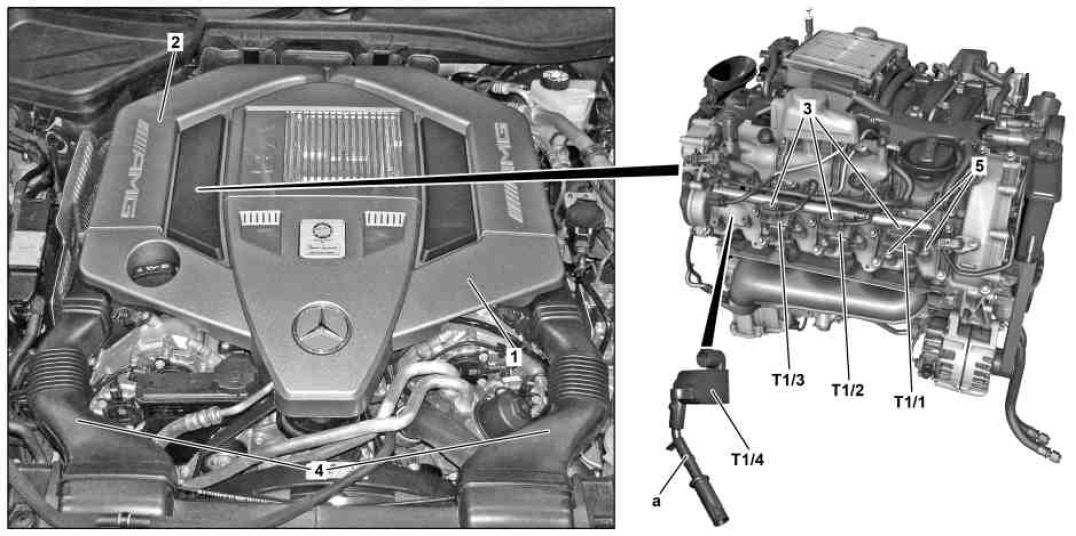

1 Front engine cover
2 Air cleaner housing
3 Connector
4 Engine air intake duct
5 Screw/bolt
a Spark plug connector

T1/1 Cylinder 1 ignition coil
T1/2 Cylinder 2 ignition coil
T1/3 Cylinder 3 ignition coil
T1/4 Cylinder 4 ignition coil
