Fuel Pressure Sensor/Switch: Service and Repair

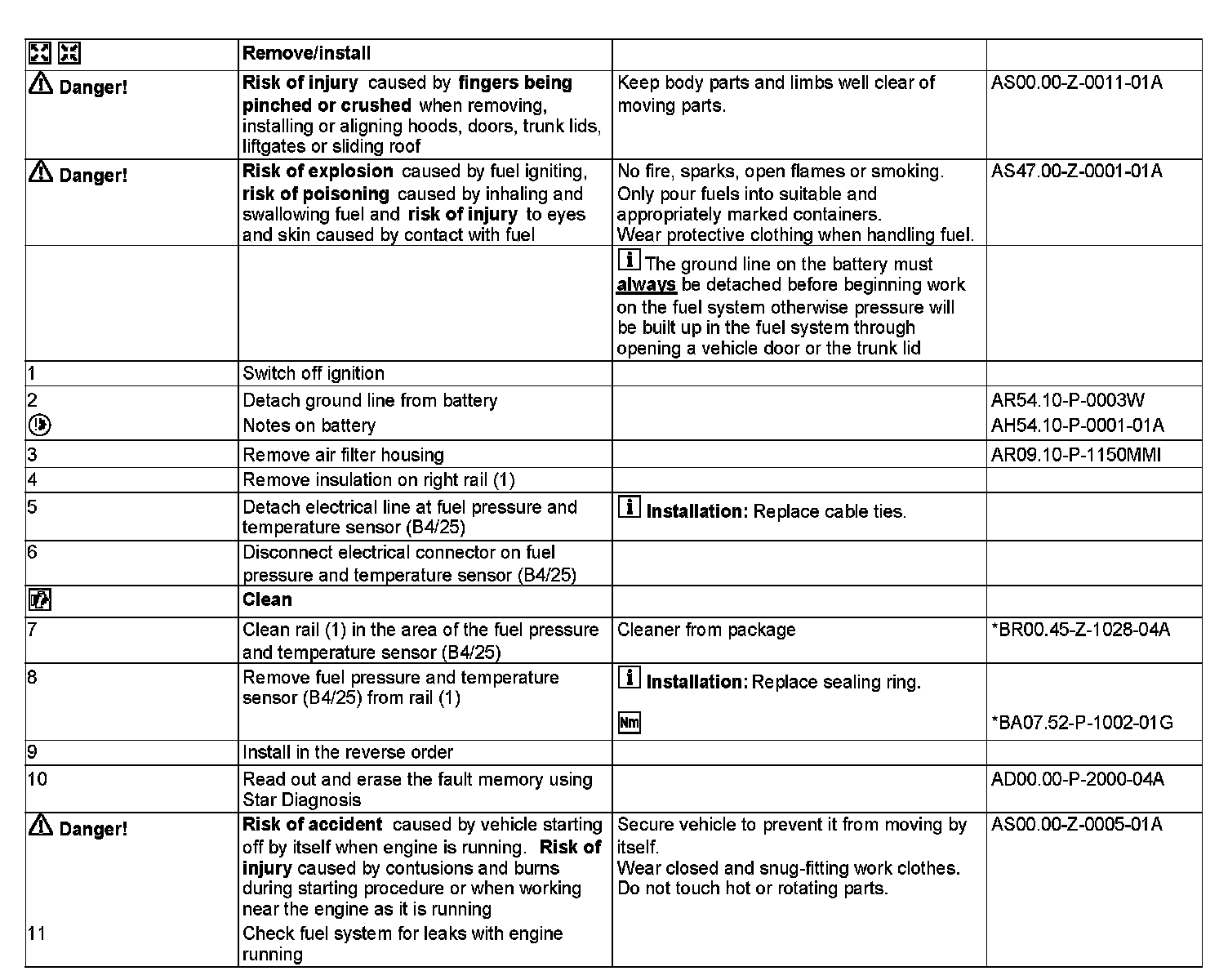

AR07.04-P-0050MMI Remove/Install A Pressure Sensor
ENGINES 152.9 in MODEL 172.4

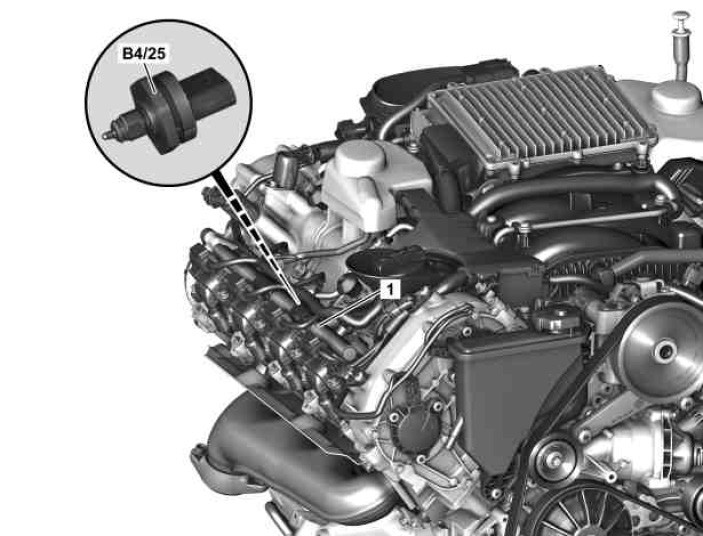

1 Rail
B4/25 Fuel pressure and temperature sensor
