Variable Valve Timing Solenoid: Service and Repair

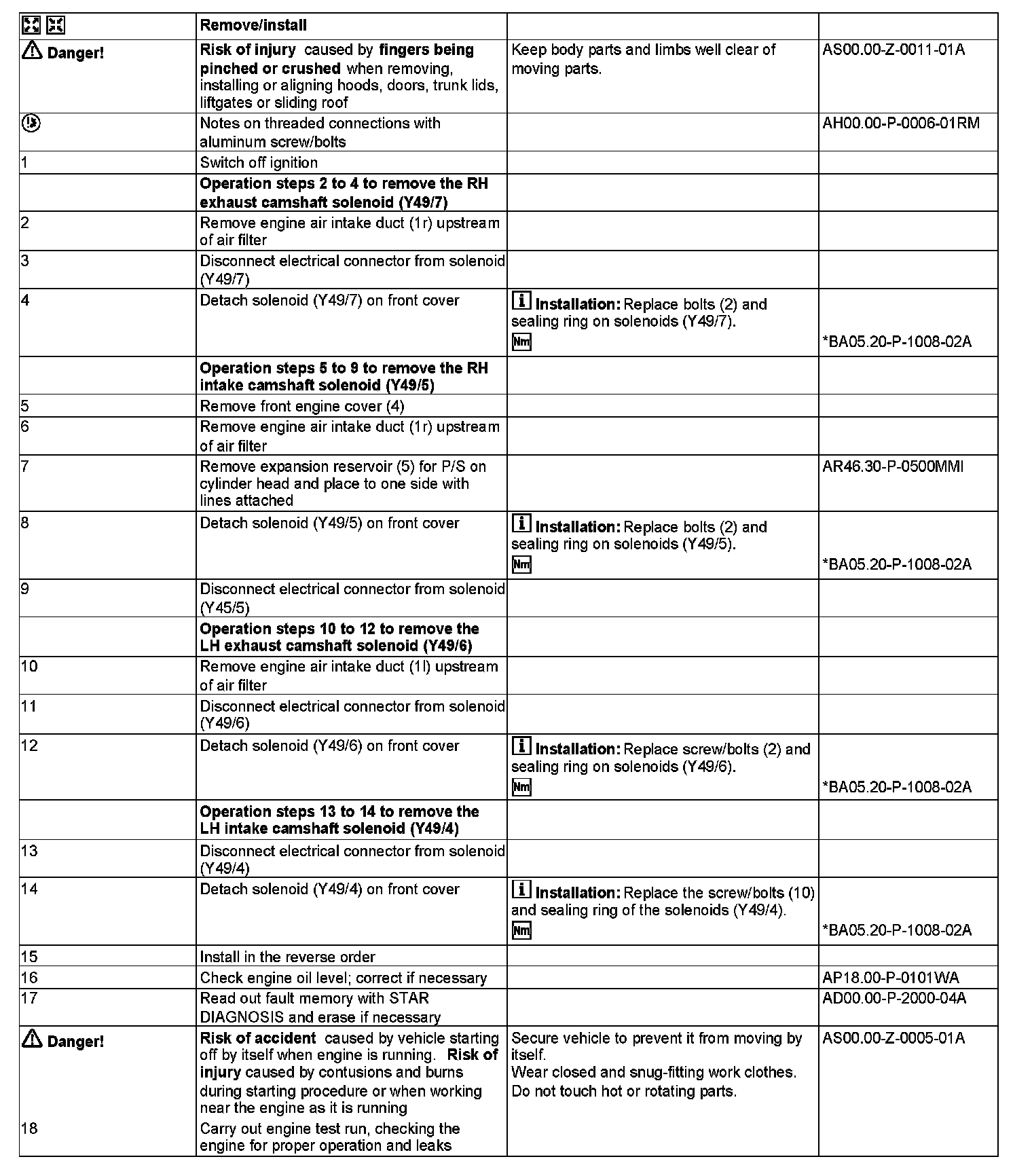

AR05.20-P-7295MMI Remove/Install Solenoid Camshaft
ENGINES 152.9 in MODEL 172.4

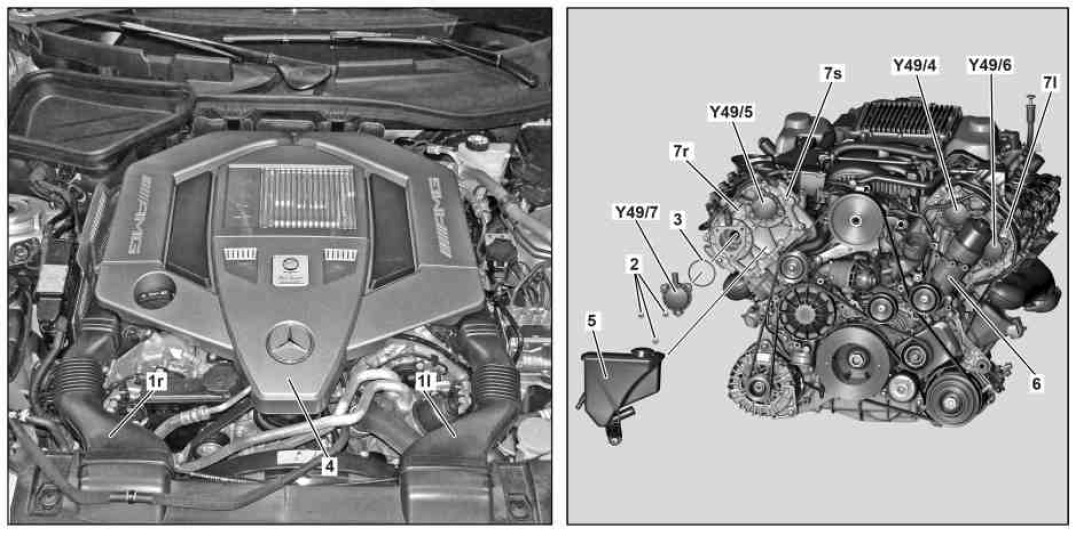

1l Left engine suction air duct
1r Right engine suction air duct
2 Screw/bolt
3 Sealing ring
4 Front engine cover
5 Expansion reservoir
6 Oil filter housing

Y49/4 Left intake camshaft solenoid
Y49/5 Right intake camshaft solenoid
Y49/6 Left exhaust camshaft solenoid
Y49/7 Right exhaust camshaft solenoid
