Knock Sensor: Service and Repair

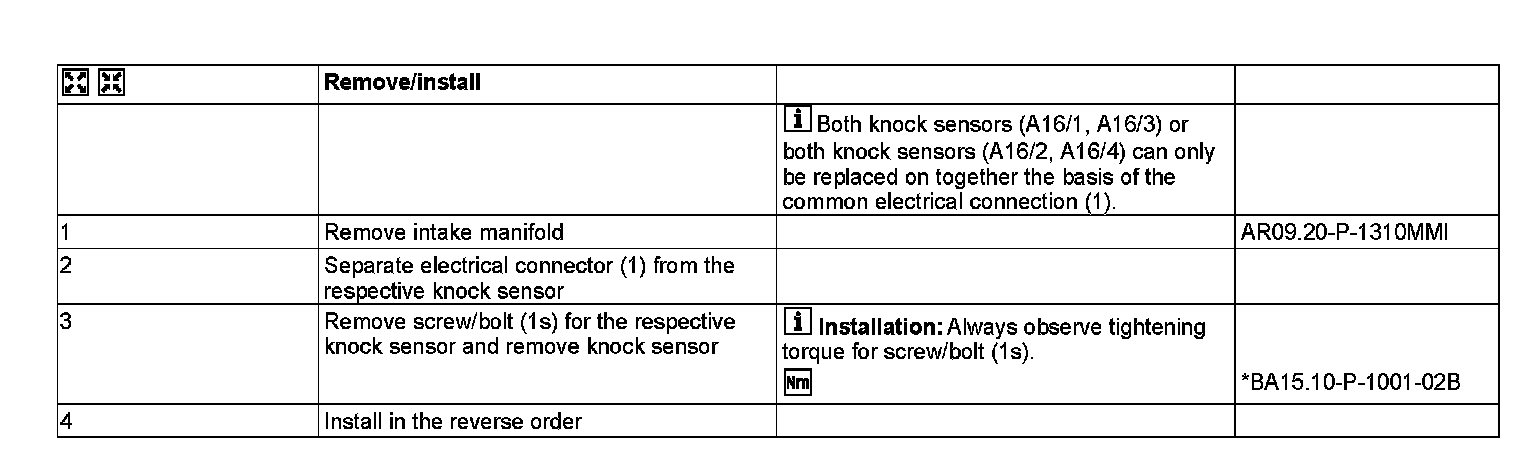

AR15.12-P-2184MMI Remove/Install Knock Sensors
ENGINES 152.9 in MODEL 172.4





1 Electrical connector

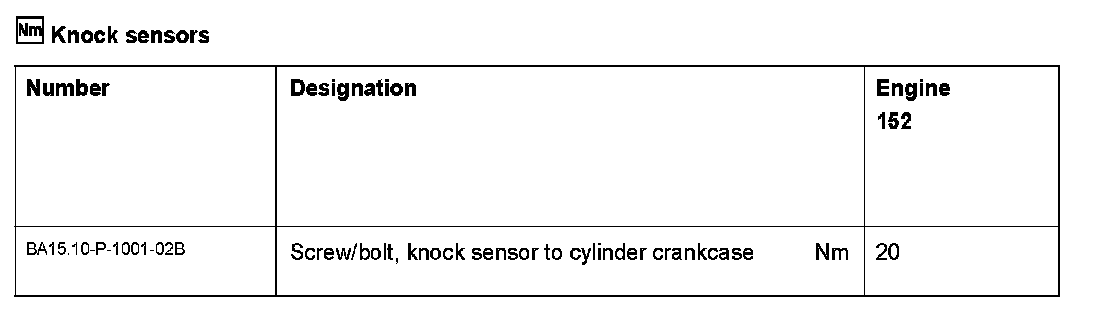

1s Screw/bolt

A16/1 Knock sensor 1
A16/2 Knock sensor 2
A16/3 Knock sensor 3
A16/4 Knock sensor 4
