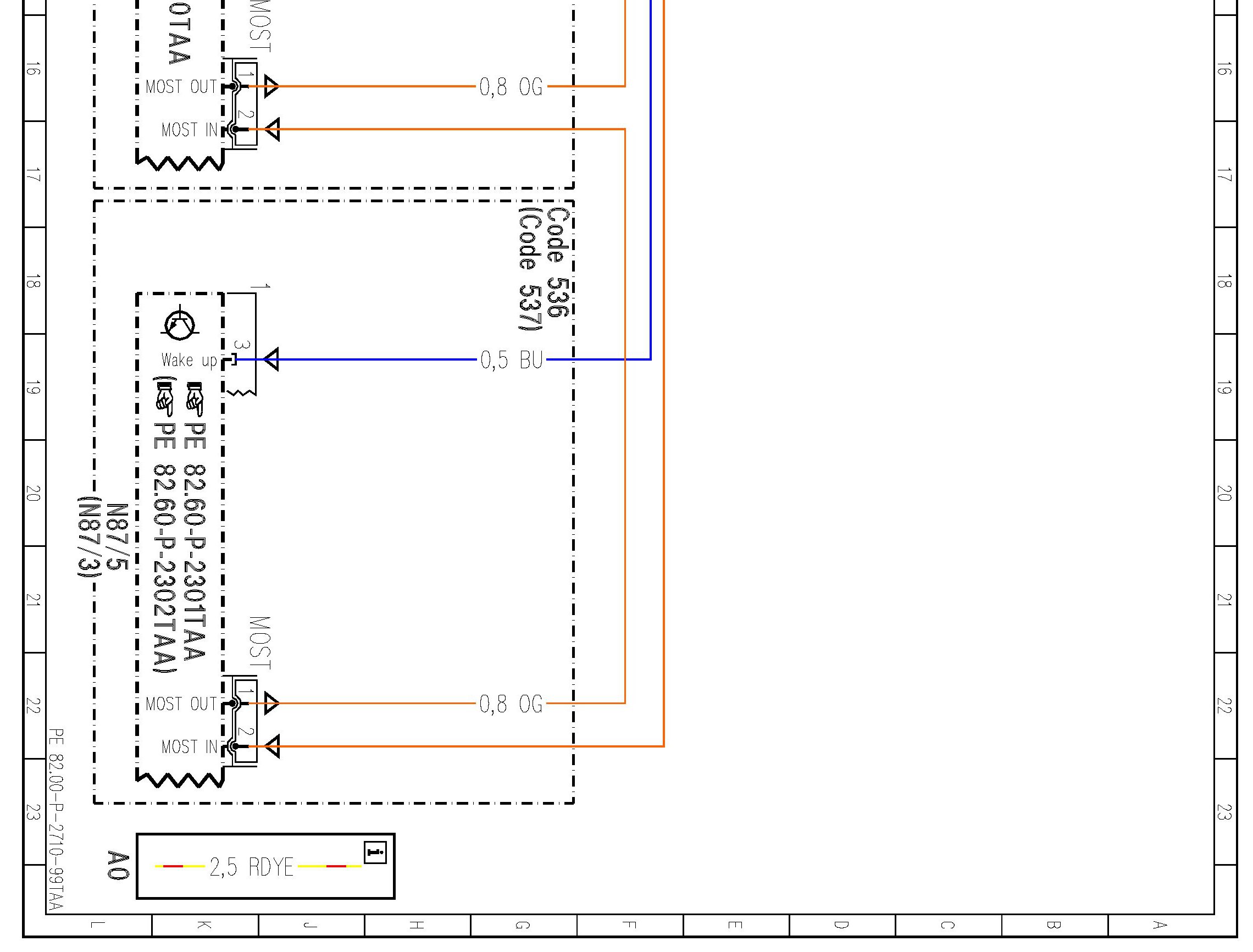

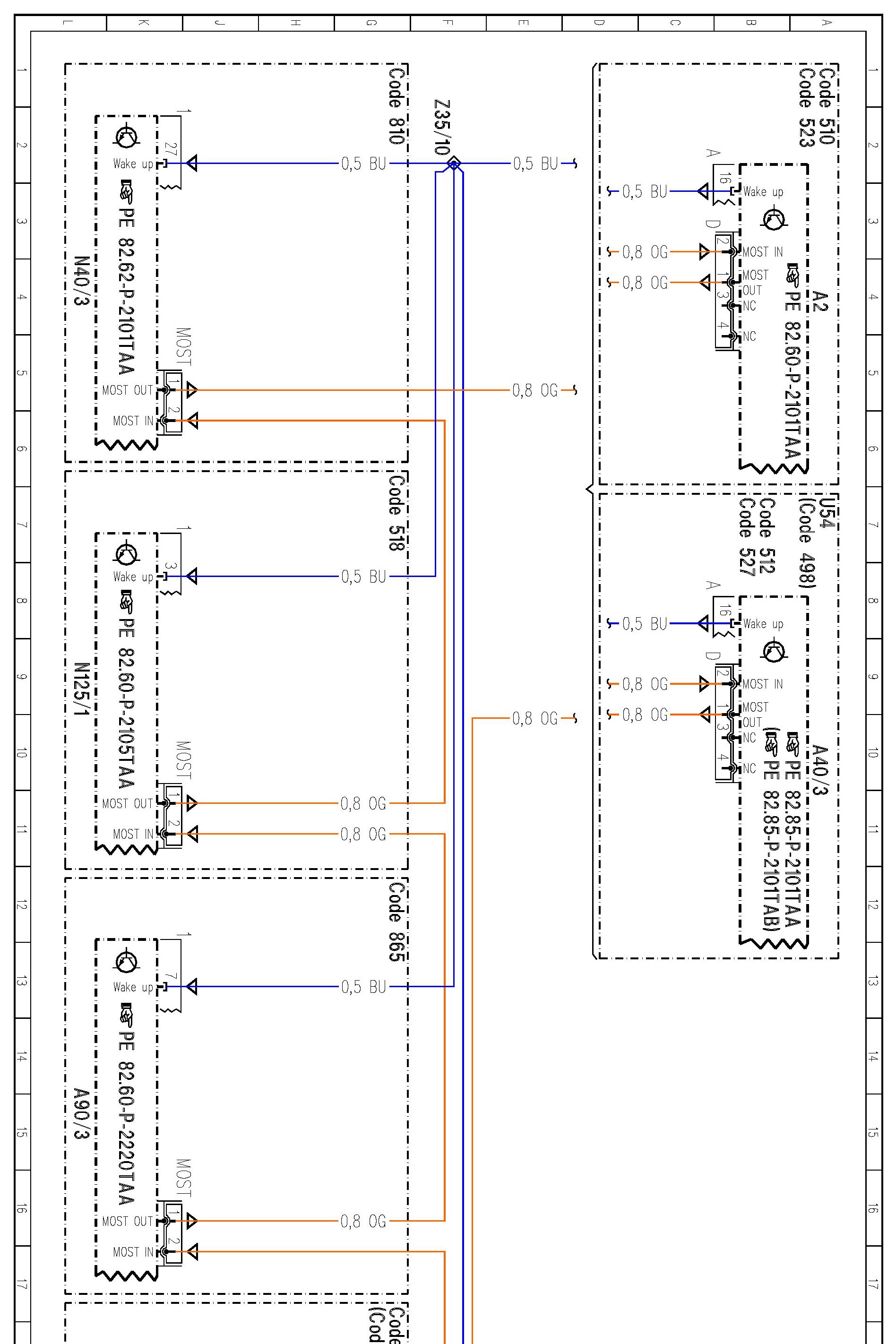

PE82.00-P-2710TAA MOST Bus
PE82.00-P-2710TAA MOST Bus
PE82.00-P-2710TAA MOST Bus
MODEL 172.4
Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Locations
