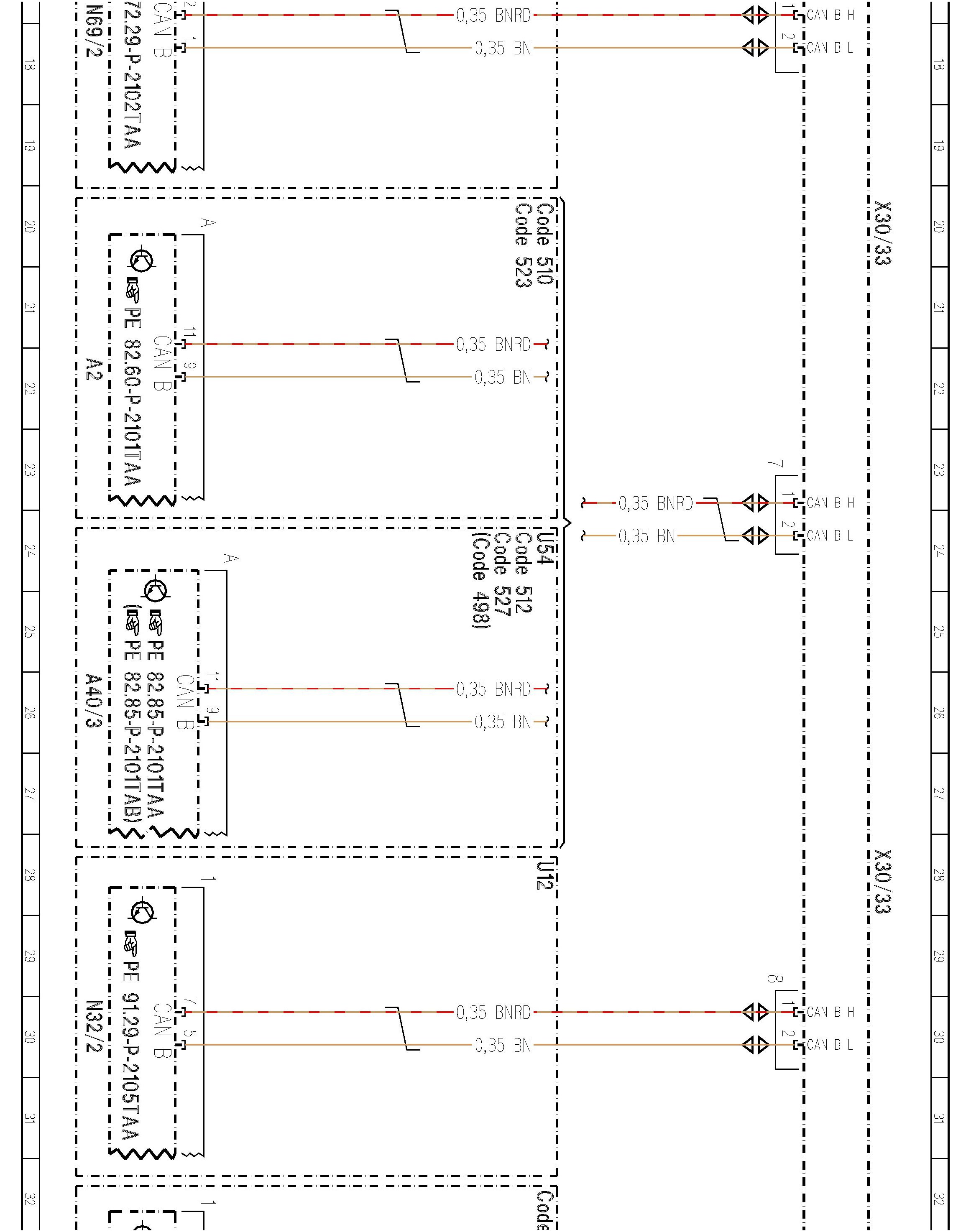

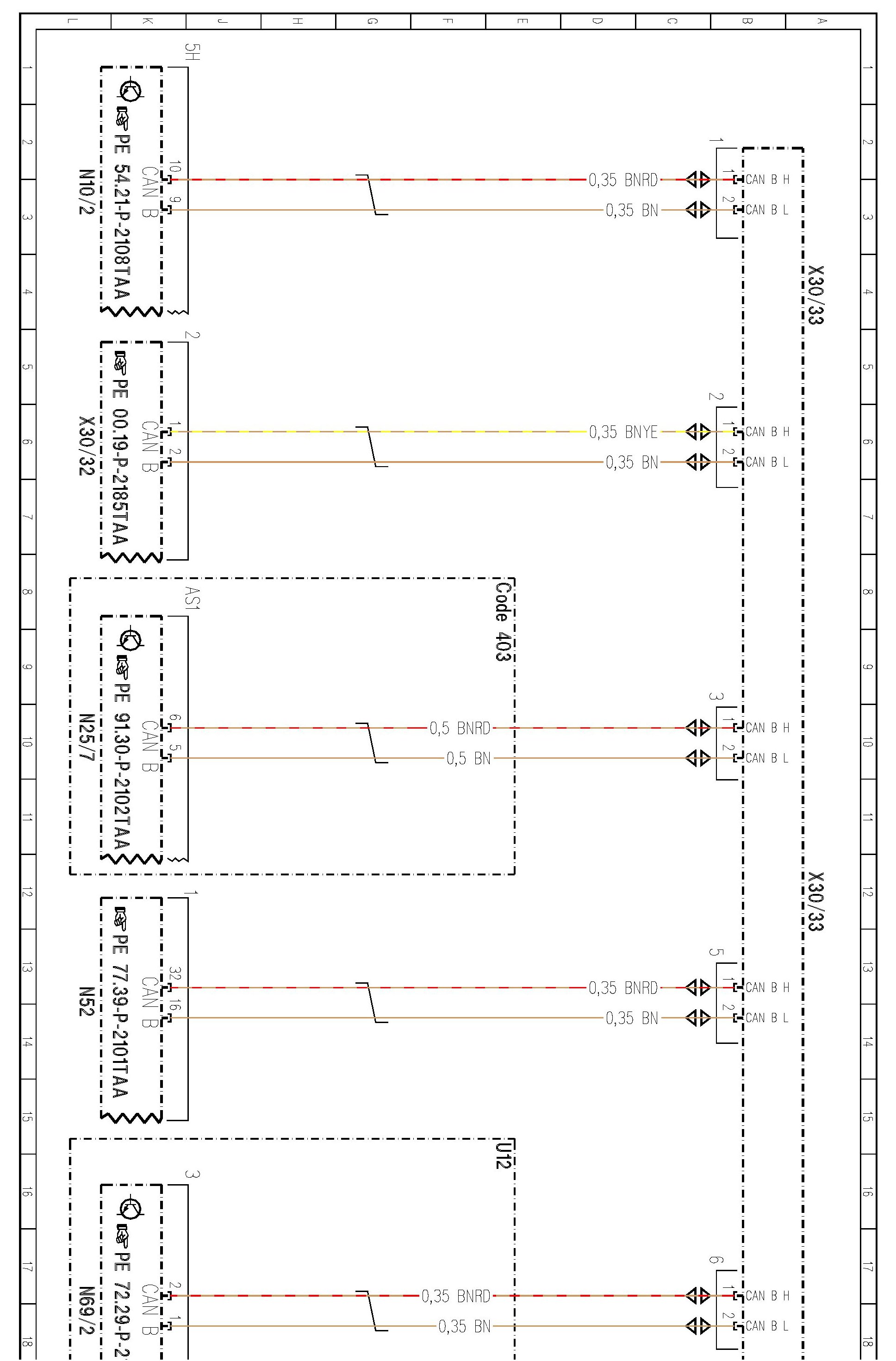

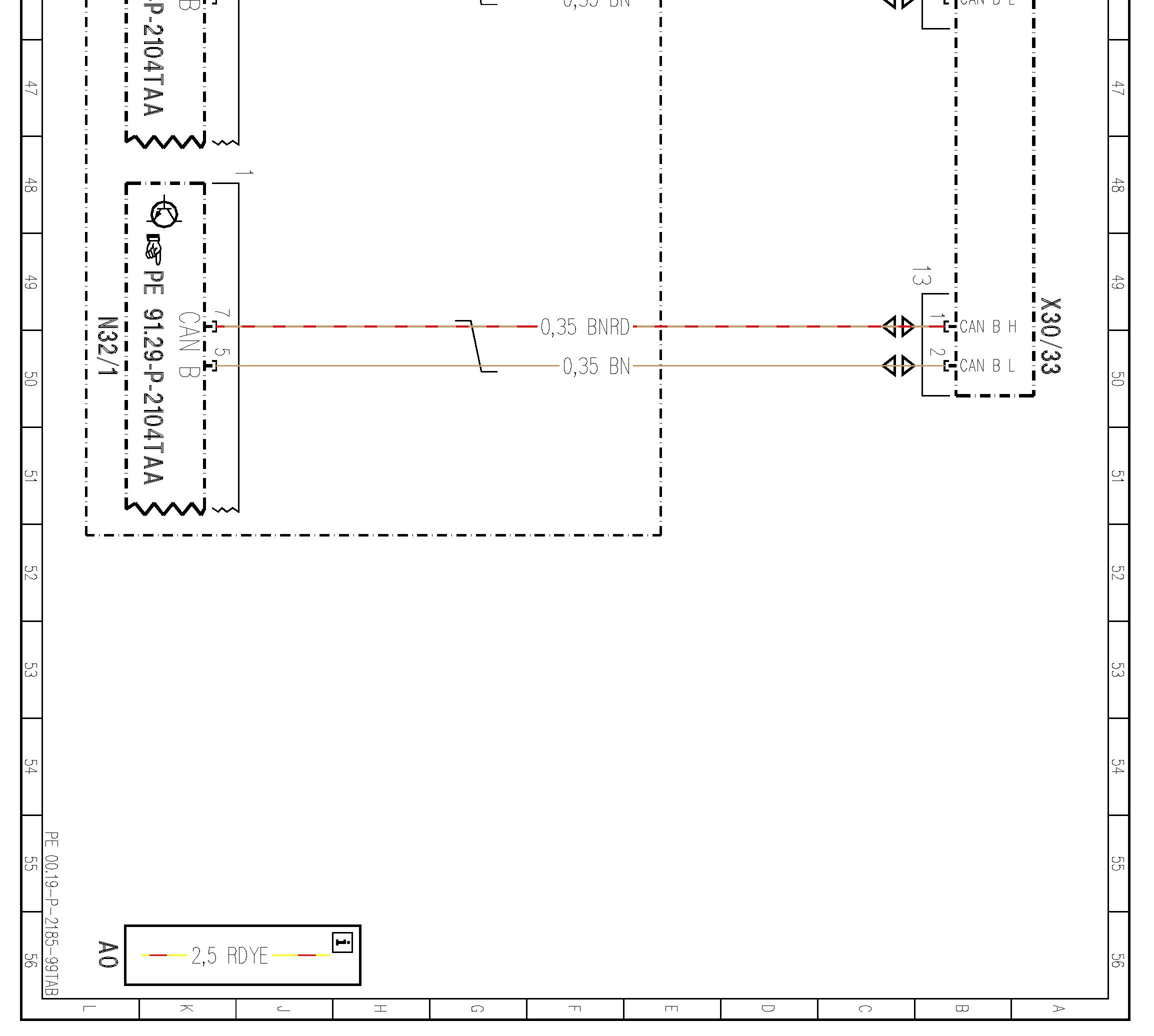

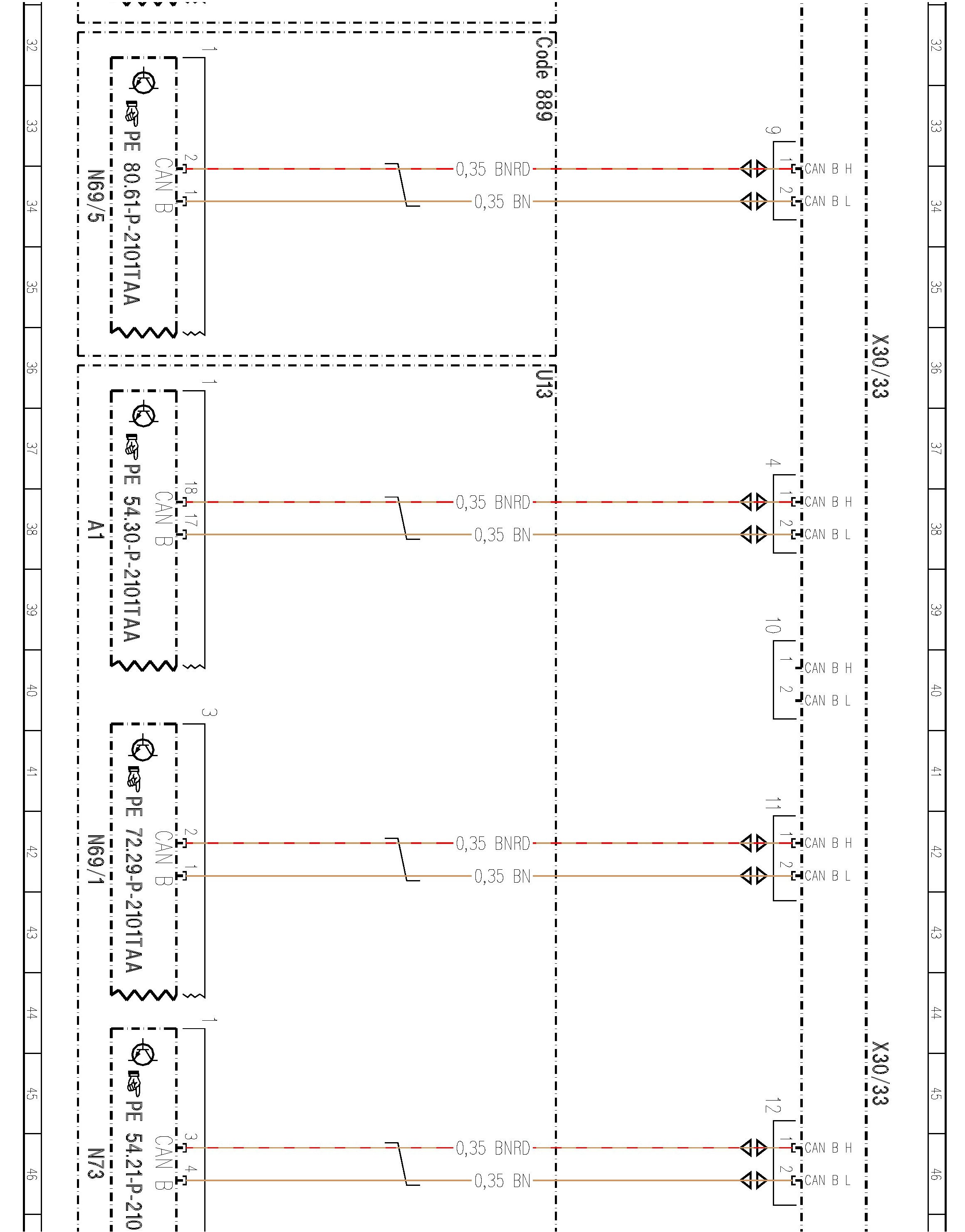

PE00.19-P-2185TAB Interior CAN



PE00.19-P-2185TAB Interior CAN

MODEL 172.4

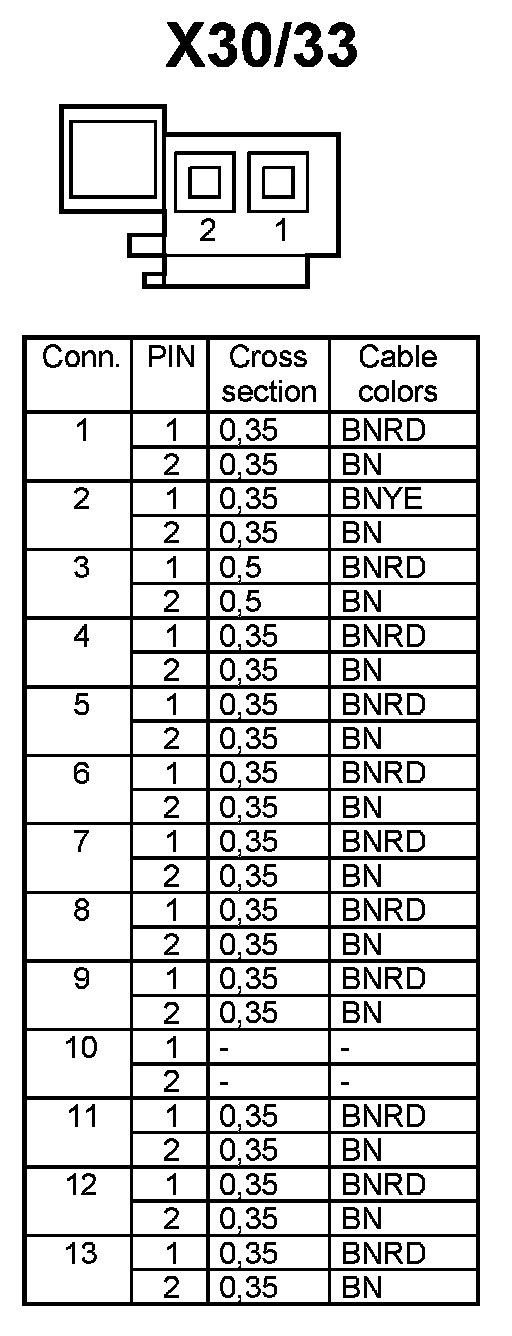

- Potential distributor X30/33














































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
