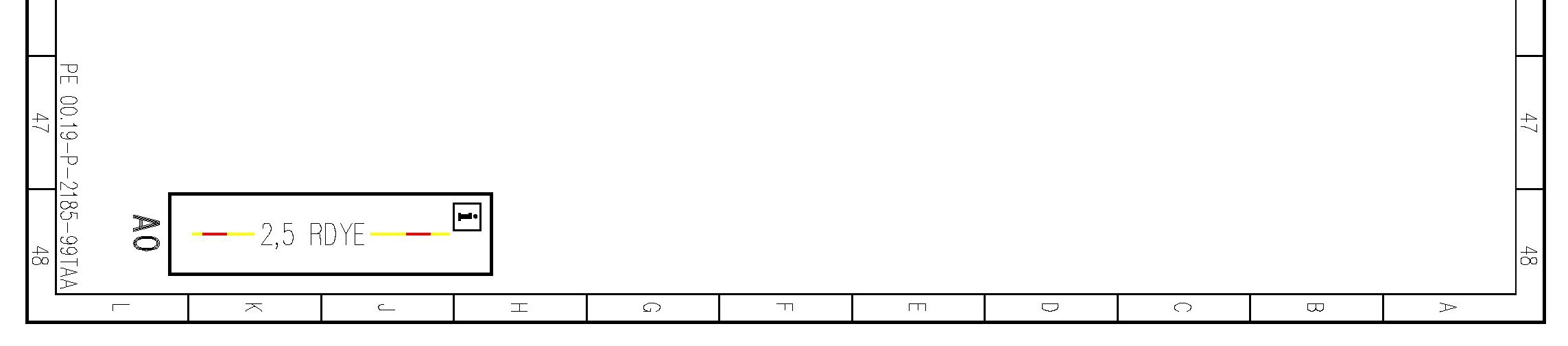

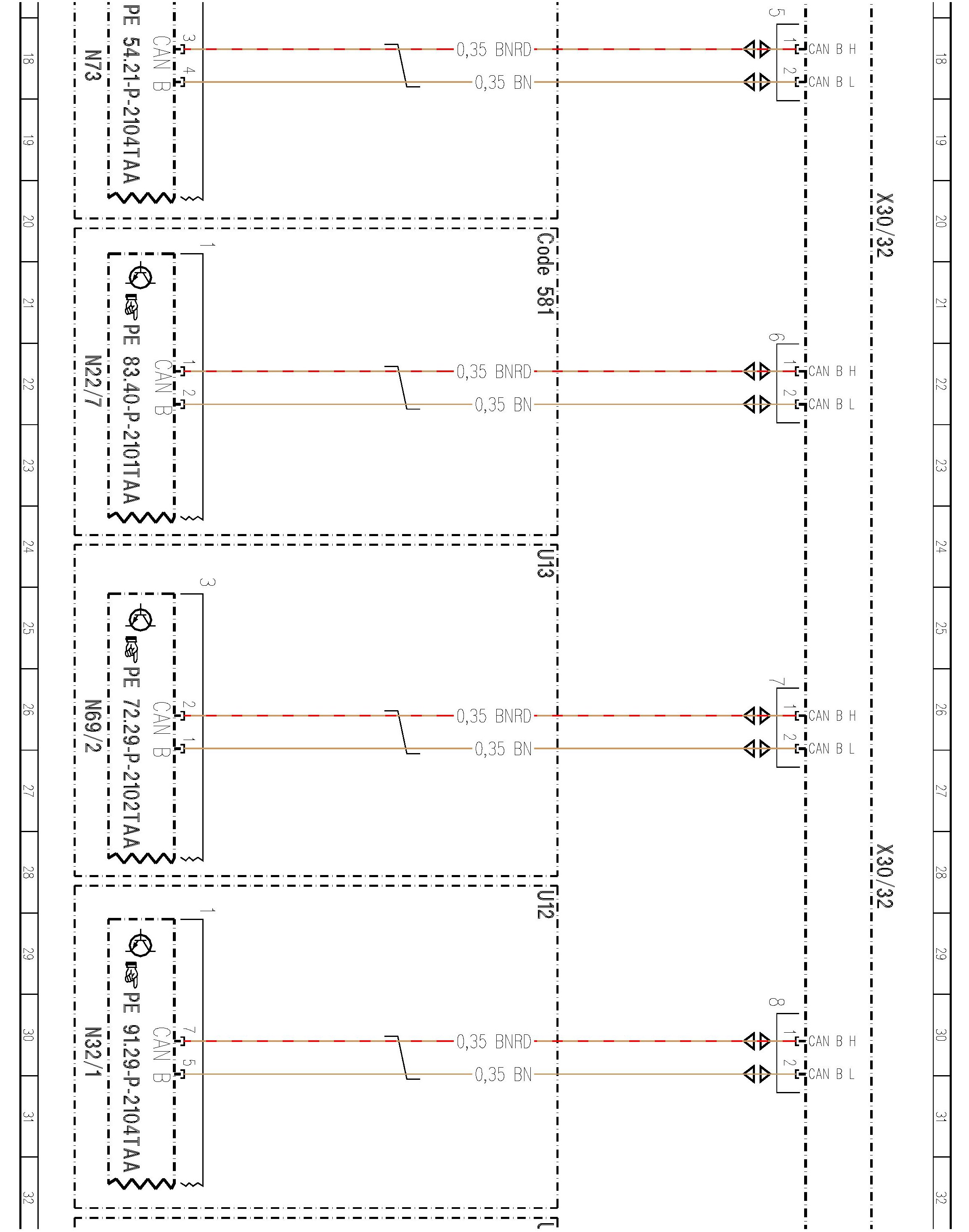

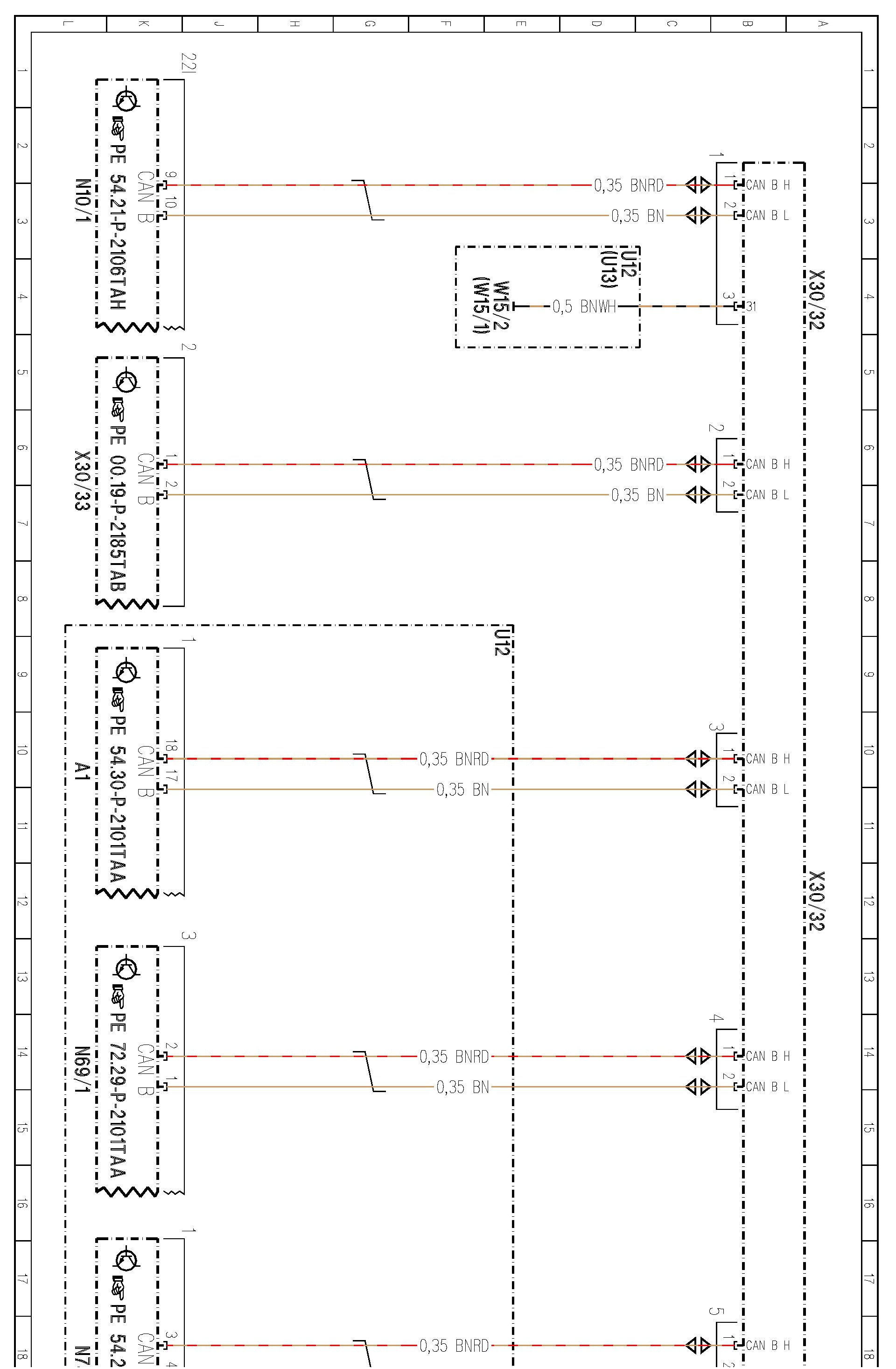

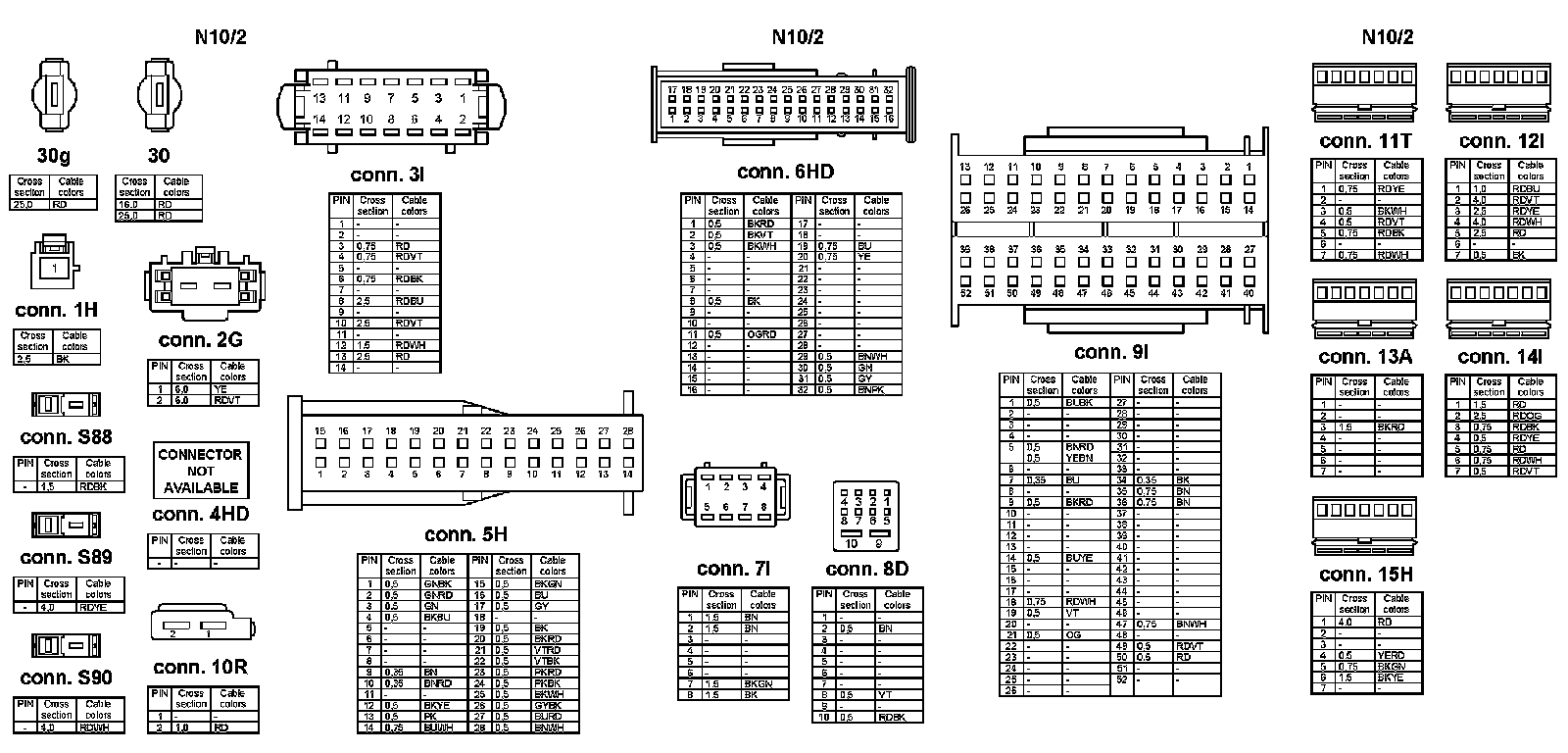

PE00.19-P-2185TAA Interior CAN



PE00.19-P-2185TAA Interior CAN

MODEL 172.4

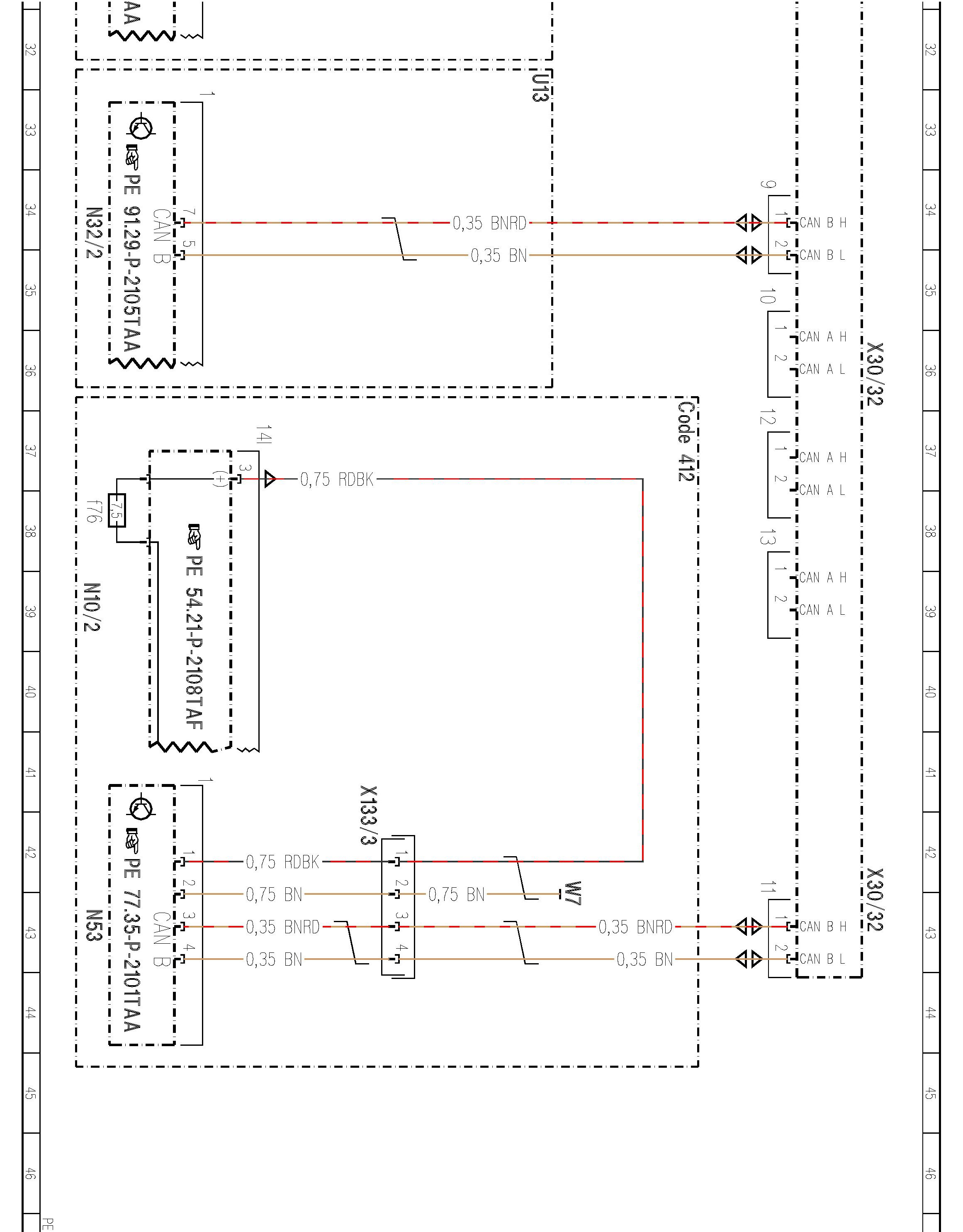

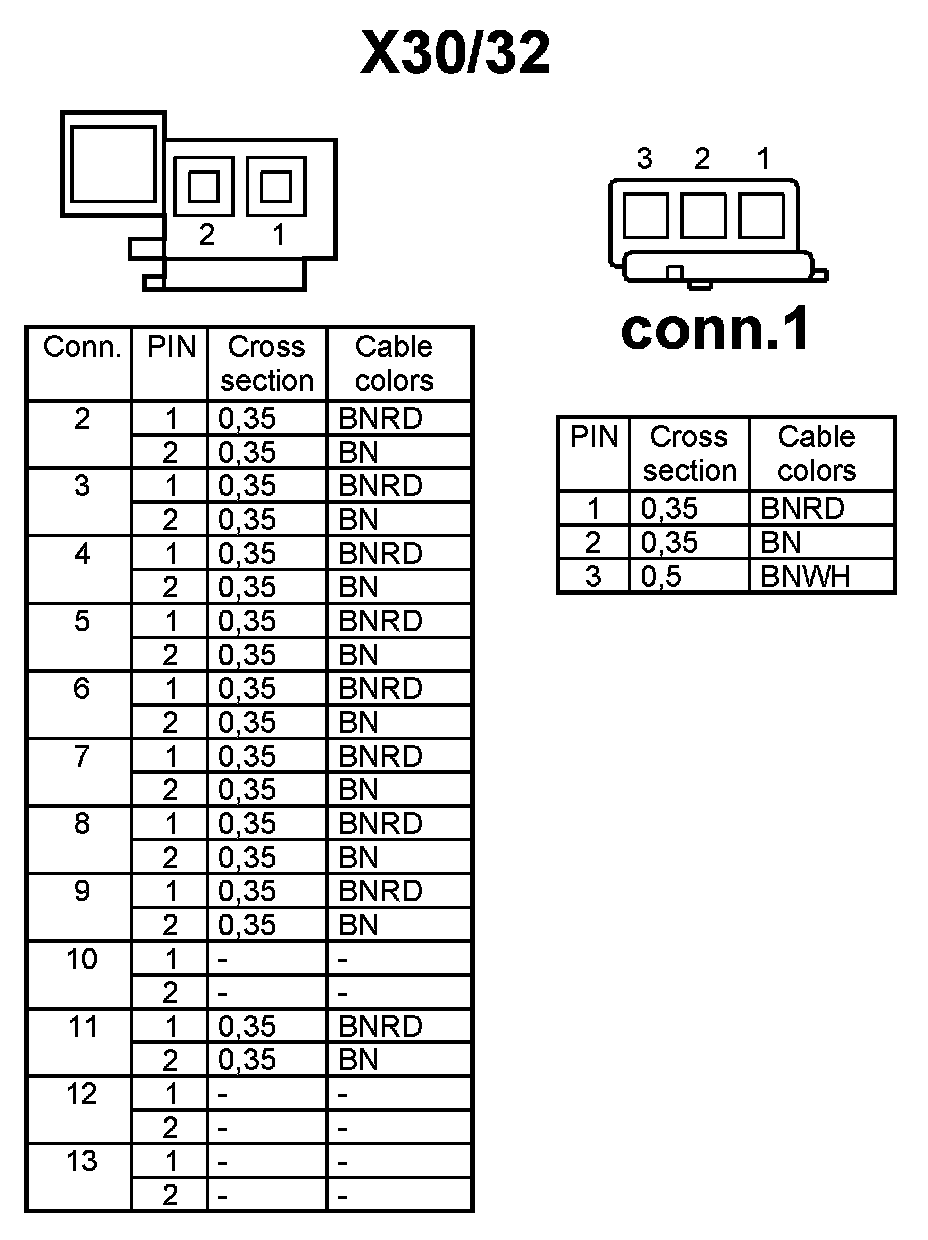

- Potential distributor X30/32










































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
