Camshaft Position Sensor: Service and Repair

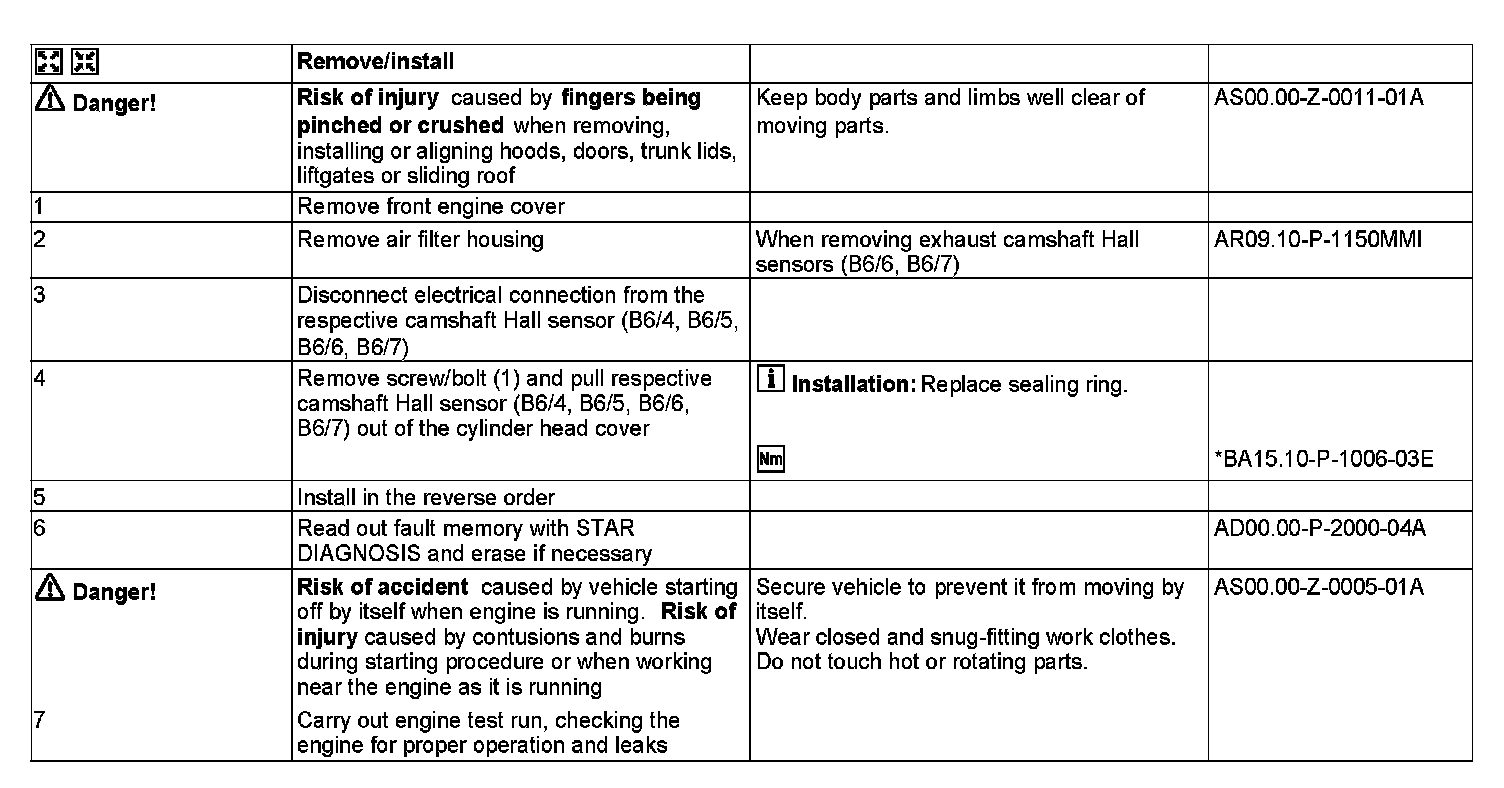

AR15.10-P-2000MMI Remove/Install Camshaft Hall Sensor
ENGINES 152.9 in MODEL 172.4

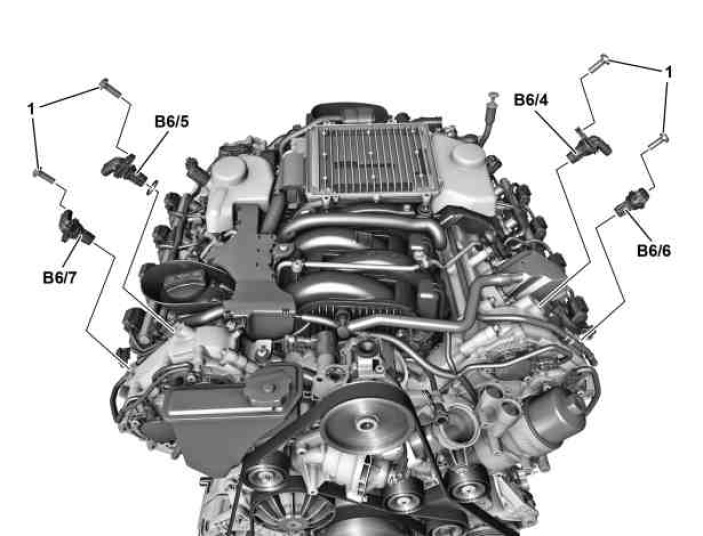

1 Screw/bolt

B6/4 Left intake camshaft Hall sensor
B6/5 Right intake camshaft Hall sensor
B6/6 Left exhaust camshaft Hall sensor
B6/7 Right exhaust camshaft Hall sensor
