Power Steering Line/Hose: Service and Repair

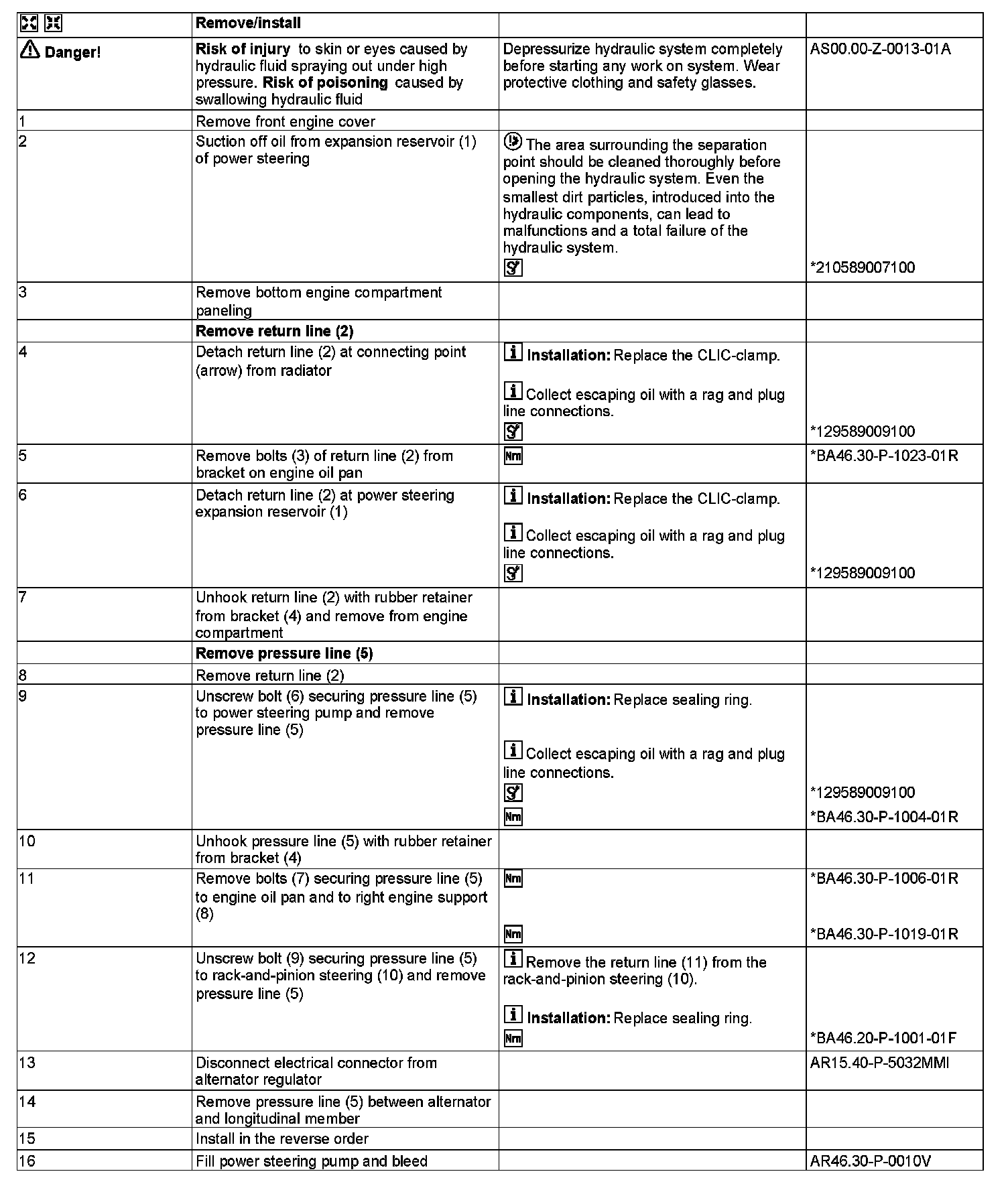

AR46.25-P-3015MMI Remove/Install Hydraulic Line Of Power Steering
MODEL 172 with ENGINE 152

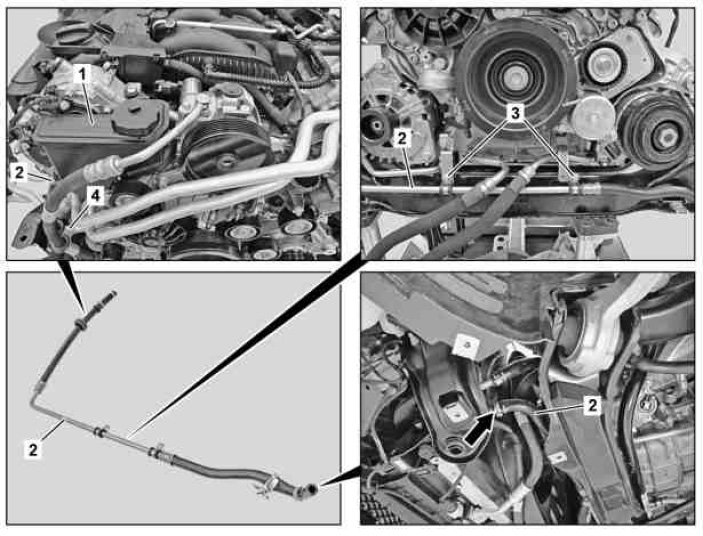

1 Power steering expansion reservoir
2 Return flow pipe
3 Bolts
4 Bracket

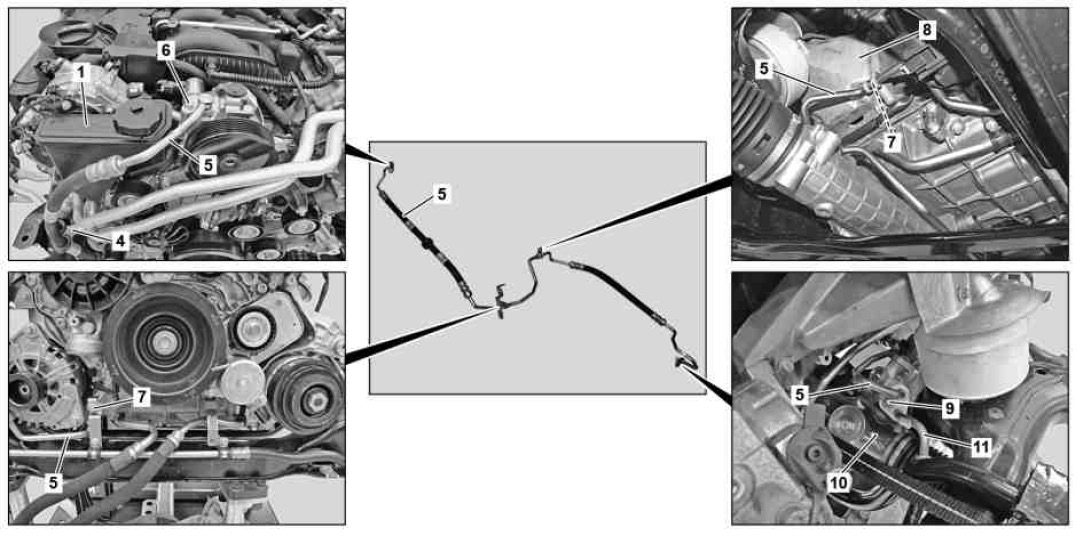

1 Power steering expansion reservoir
4 Bracket
5 Pressure line
6 Screw
7 Bolts
8 Right engine support
9 Screw
10 Rack-and-pinion steering
11 Return flow pipe














129 589 00 91 00
Set of stop plugs





210 589 00 71 00
Hand pump
