Brake Rotor/Disc: Service and Repair

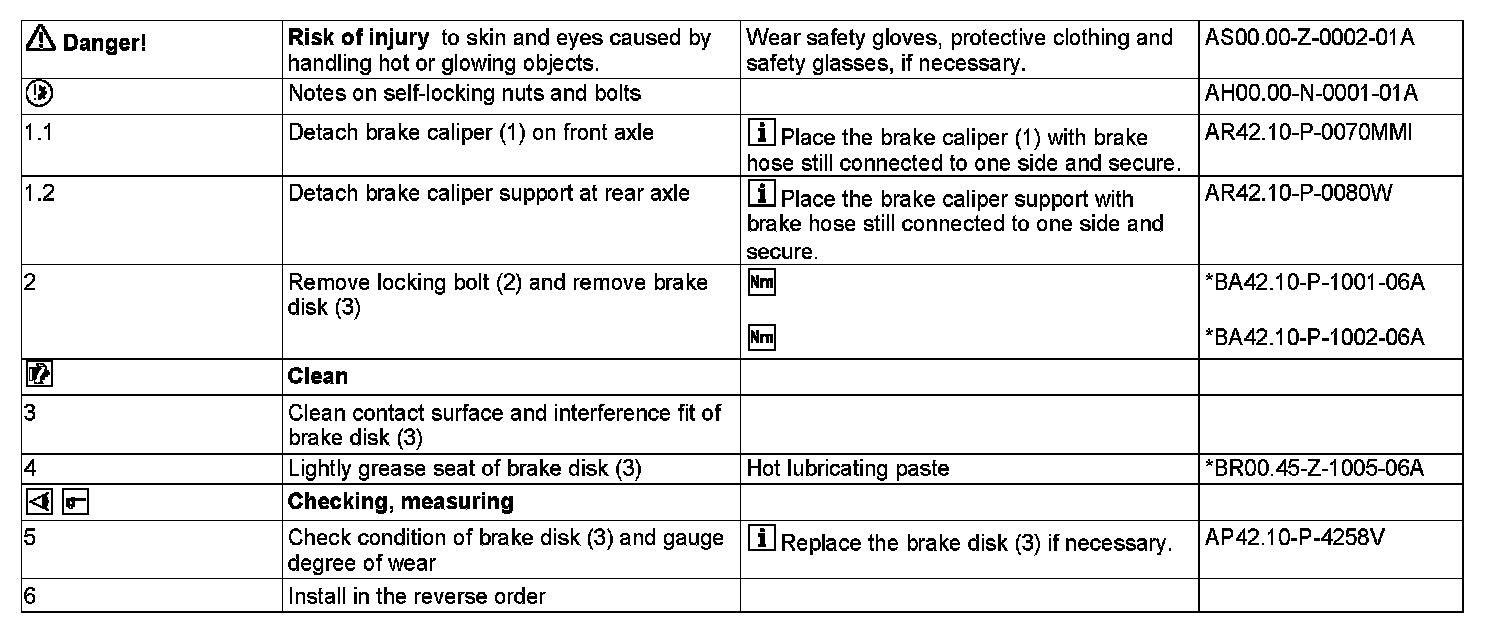

AR42.10-P-0220MMI Remove/Install Brake Disc
MODEL 172.475

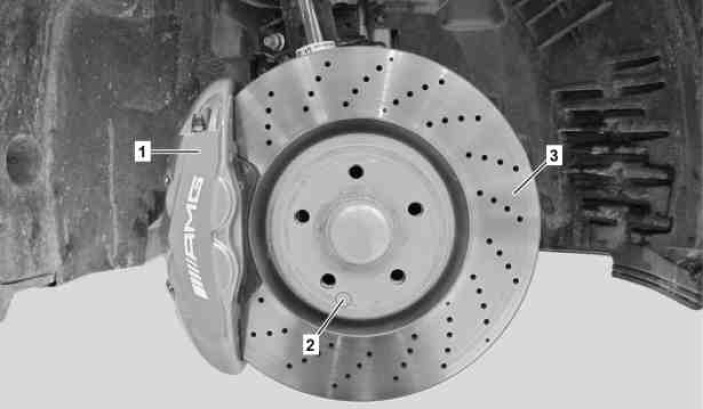

Shown on front axle with fixed caliper
1
Brake caliper
2 Security bolt
3 Brake disk
