AR42.10-P-0070MMI Remove/Install Front Axle Brake Caliper

AR42.10-P-0070MMI Remove/Install Front Axle Brake Caliper

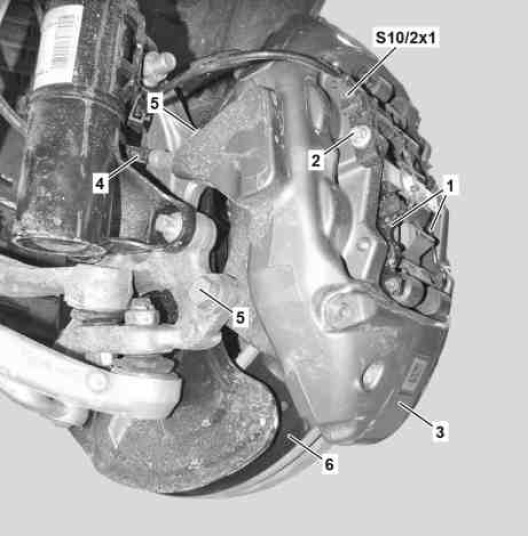

MODEL 172.475 with fixed caliper





1 Brake pads
2 Screw
3 Brake caliper
4 Brake hose
5 Bolts
6 Brake disk

S10/2x1 Right front brake wear sensor electrical connector











000 589 52 43 00
Pusher tool





129 589 00 91 00
Set of stop plugs
