Fuel Pressure Sensor/Switch: Service and Repair

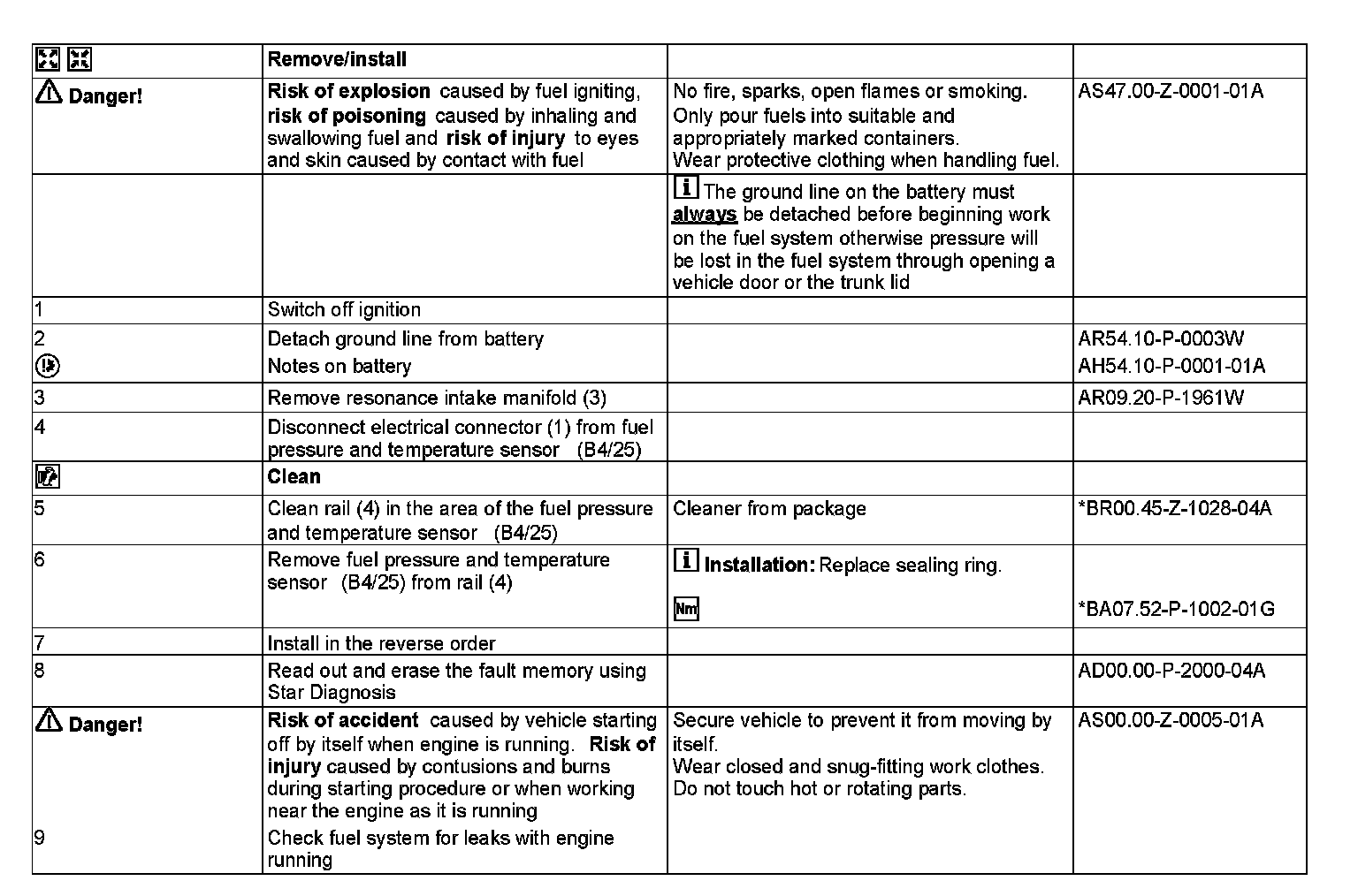

AR07.04-P-0050W Remove/Install A Pressure Sensor
ENGINES 276 in MODEL 172

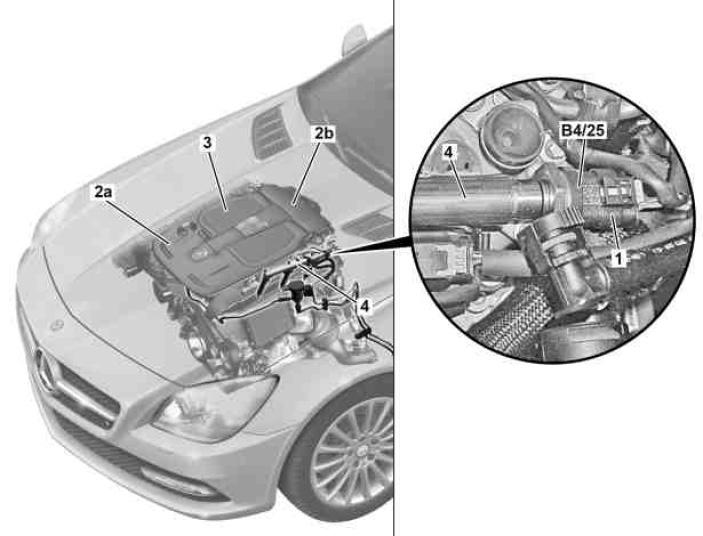

1 Electrical connector
3 Resonance intake manifold
4 Rail
B4/25 Fuel pressure and temperature sensor
