Fuel Injector: Service and Repair

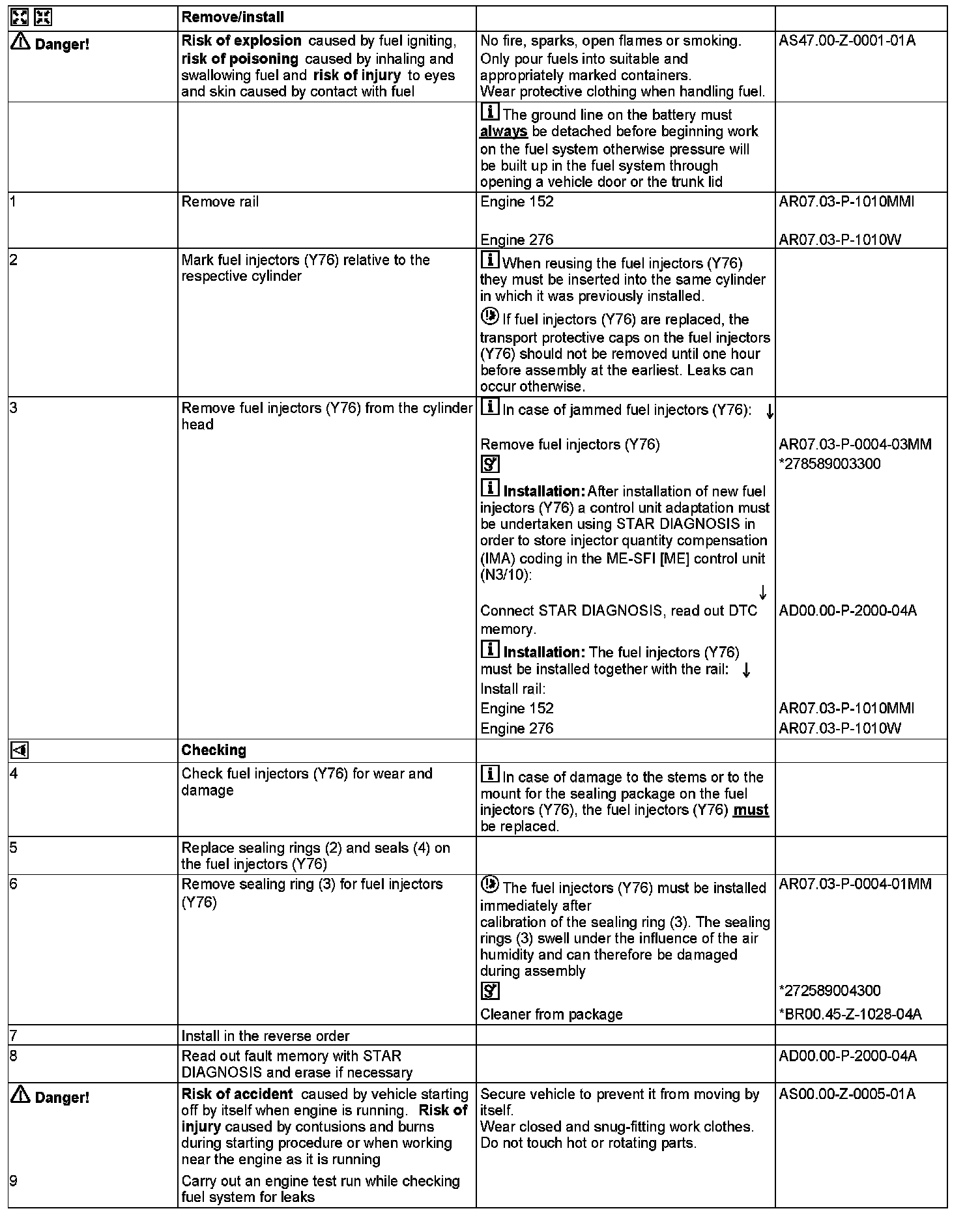

AR07.03-P-0004W Remove/Install Fuel Injectors
ENGINES 152.9, 276 in MODEL 172

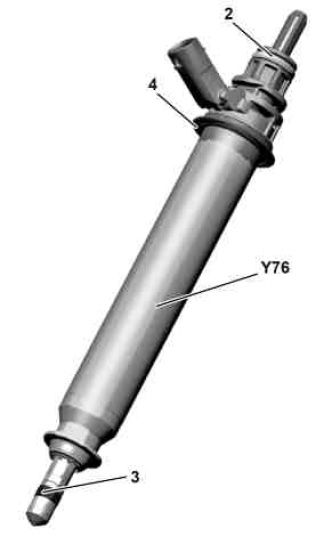

2 Sealing ring
3 Sealing ring
4 Seal

Y76 Fuel injectors








272 589 00 43 00
Assembly tool





278 589 00 33 00
Puller
