EGR Valve Position Sensor: Service and Repair

AR14.20-P-1020W Remove/Install Exhaust Gas Recirculation Positioner
ENGINES 276 in MODEL 172

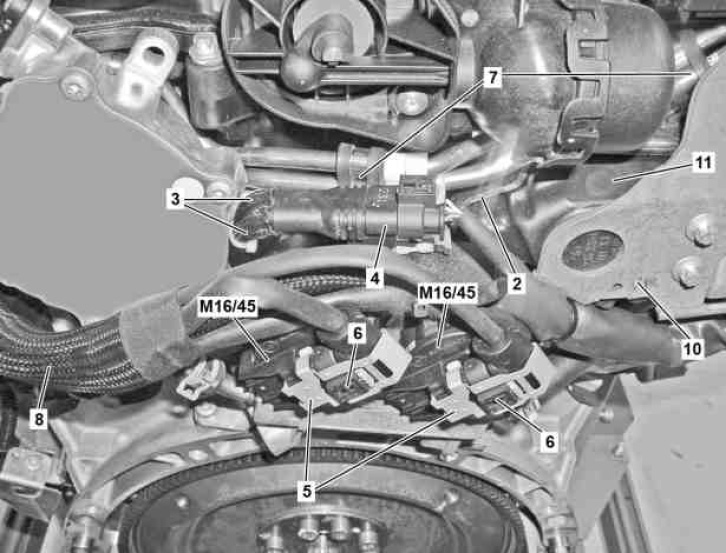

2 Bracket
3 Electrical line
4 Electrical connector
5 Locking plates
6 Electrical connector
7 Clamps
8 Engine wiring harness
10 Crash plate
11 Insulation

M16/45 Exhaust gas recirculation actuator motors

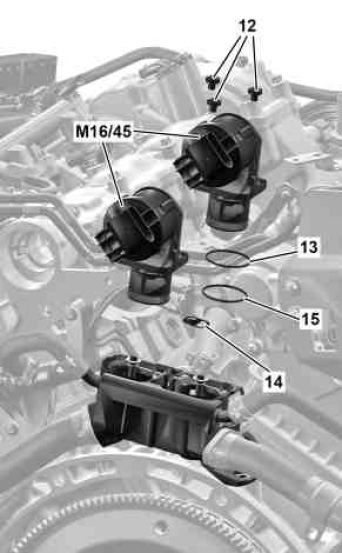

12 Bolts
13 Sealing ring
14 Gasket
15 Metal seal

M16/45 Exhaust gas recirculation actuator motors























126 589 00 10 00
Screwdriver bit
