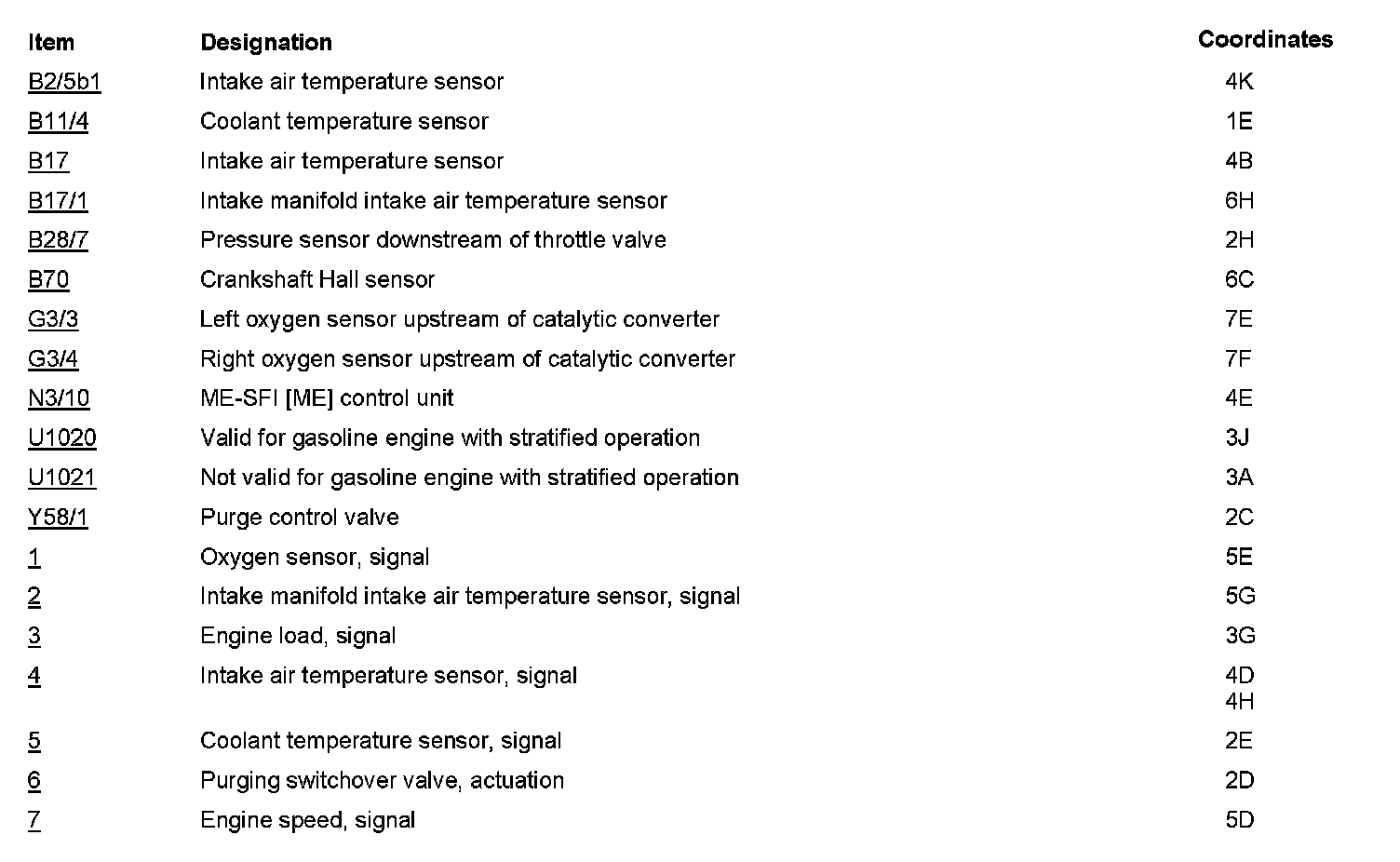

PE47.30-P-2052TAD Electrical Function Diagram For Purging Function

PE47.30-P-2052TAD Electrical Function Diagram For Purging Function

MODEL 172 with ENGINE 276


































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
