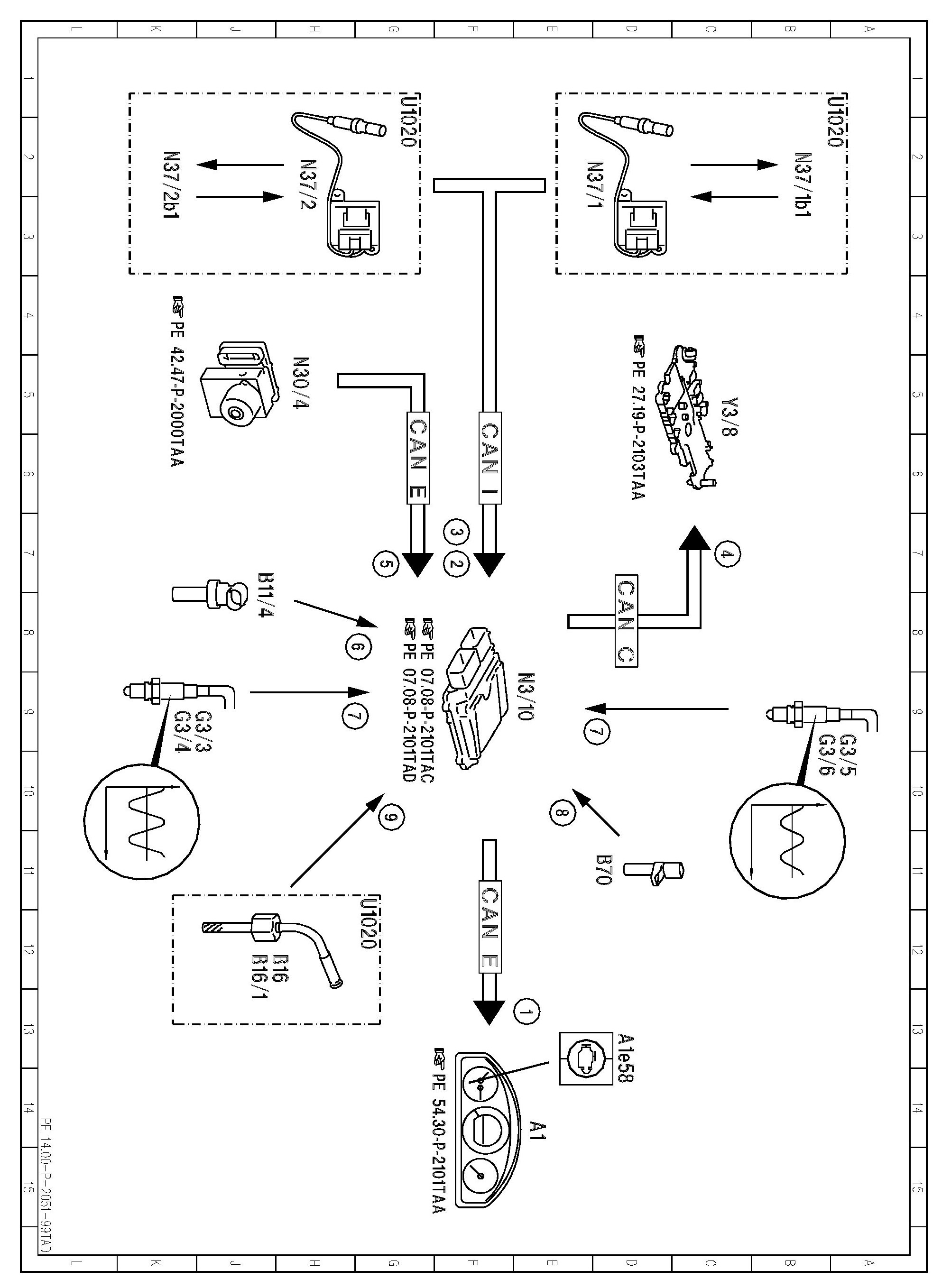

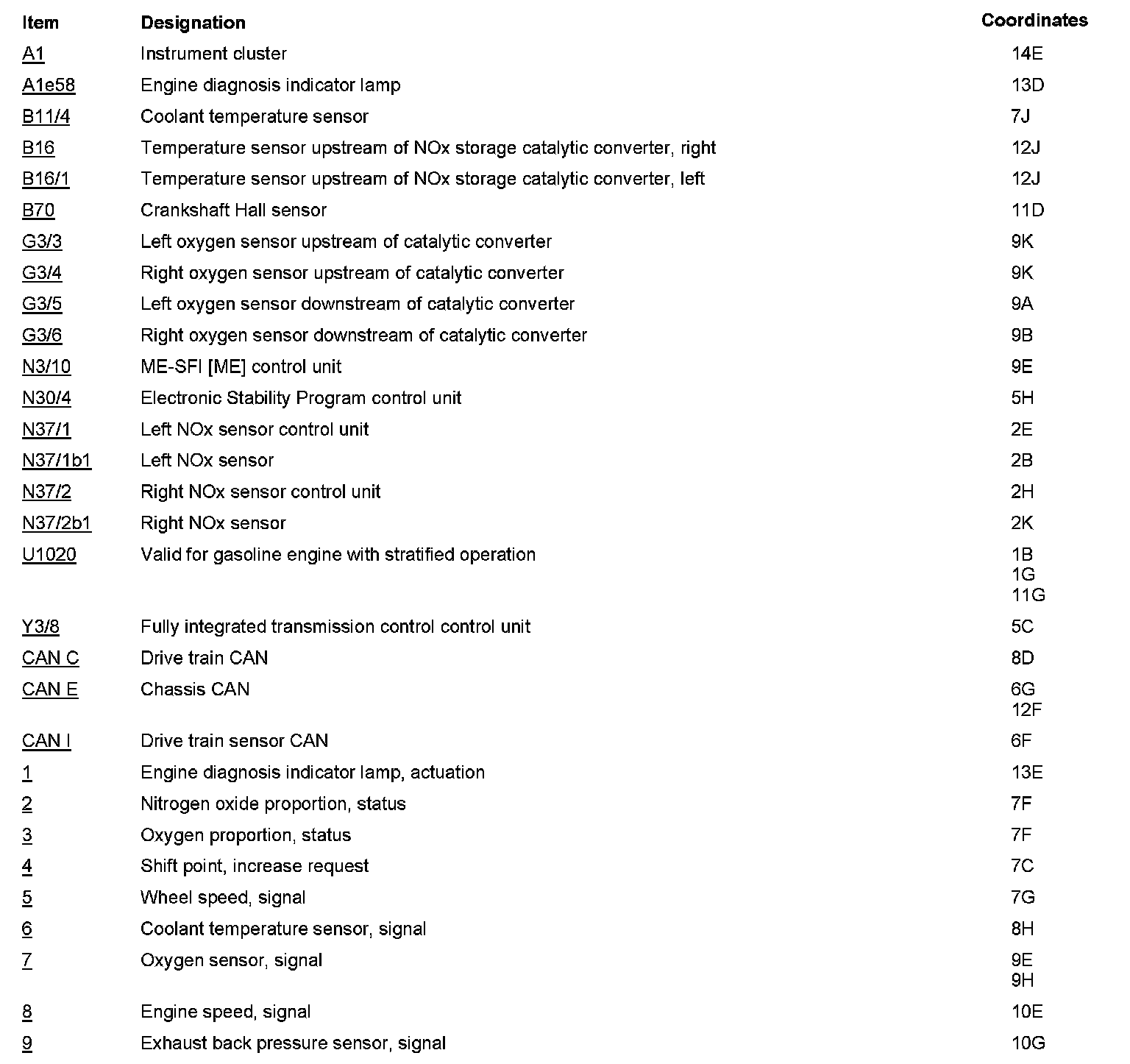

PE14.00-P-2051TAD Electrical Function Schematic For Exhaust Treatment

PE14.00-P-2051TAD Electrical Function Schematic For Exhaust Treatment

ENGINES 276 in MODEL 172


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
