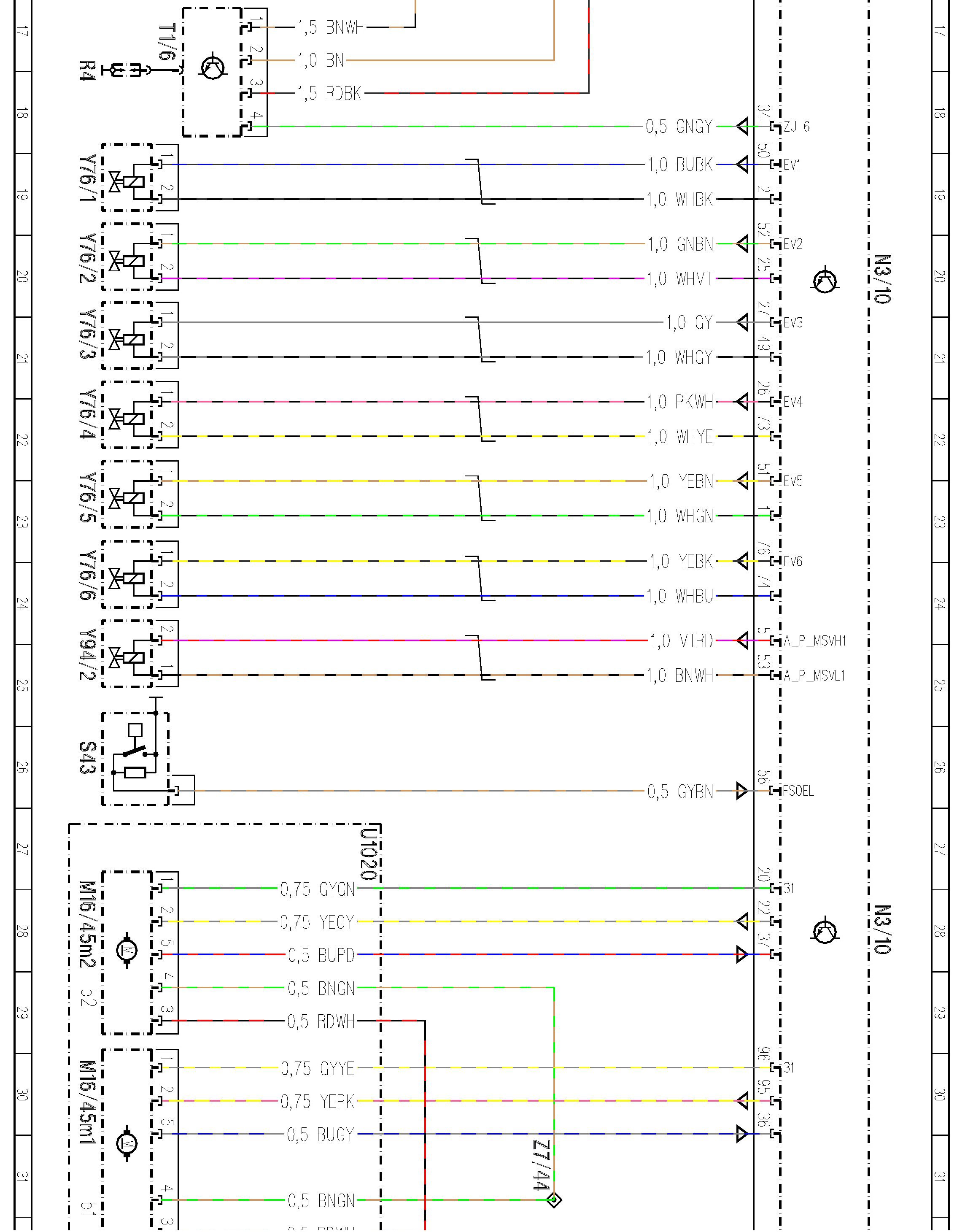

PE07.08-P-2101TAD Gasoline Direct Injection System Control Unit

PE07.08-P-2101TAD Gasoline Direct Injection System Control Unit

ENGINE 276.9 in MODEL 172.4

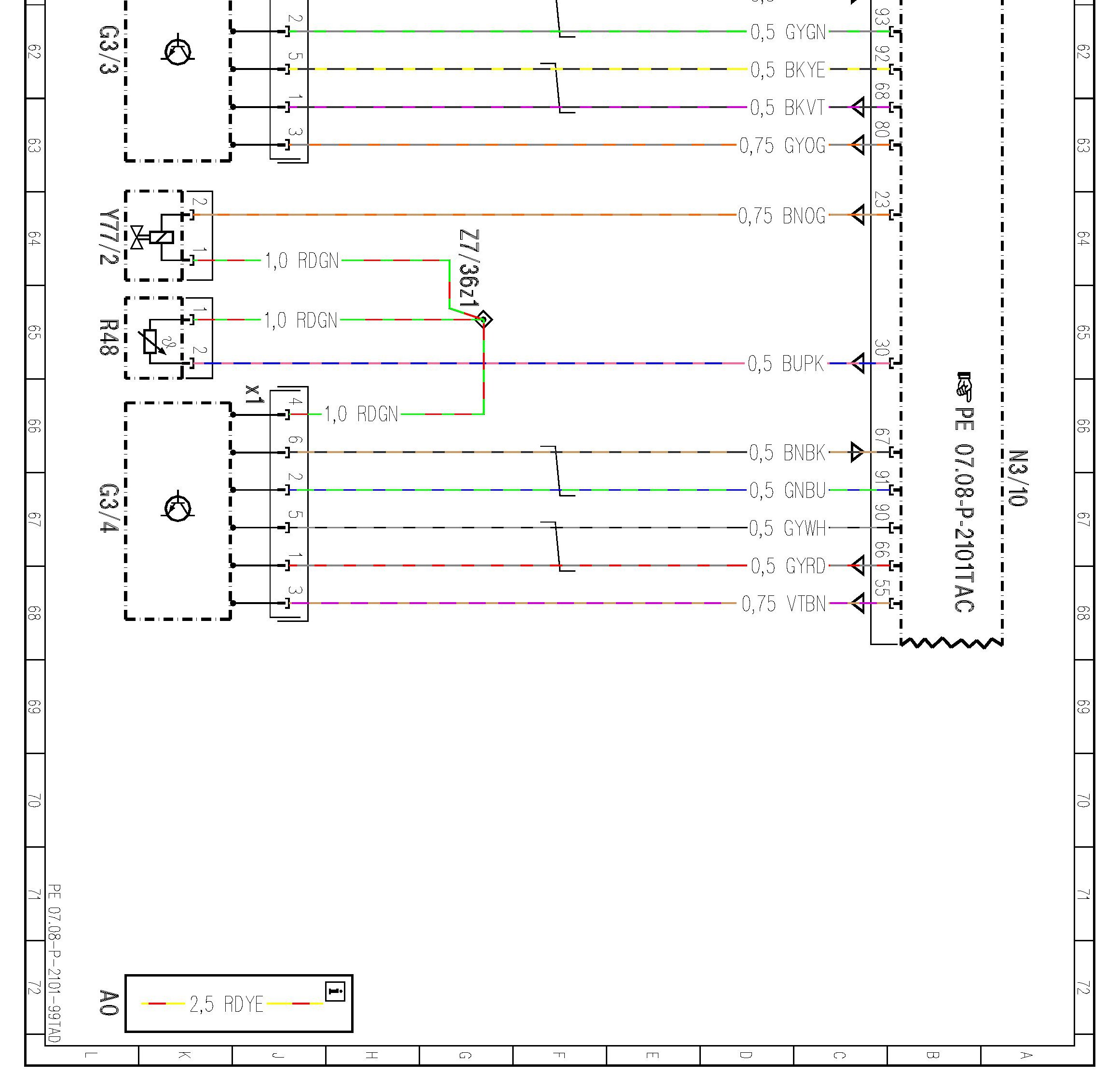

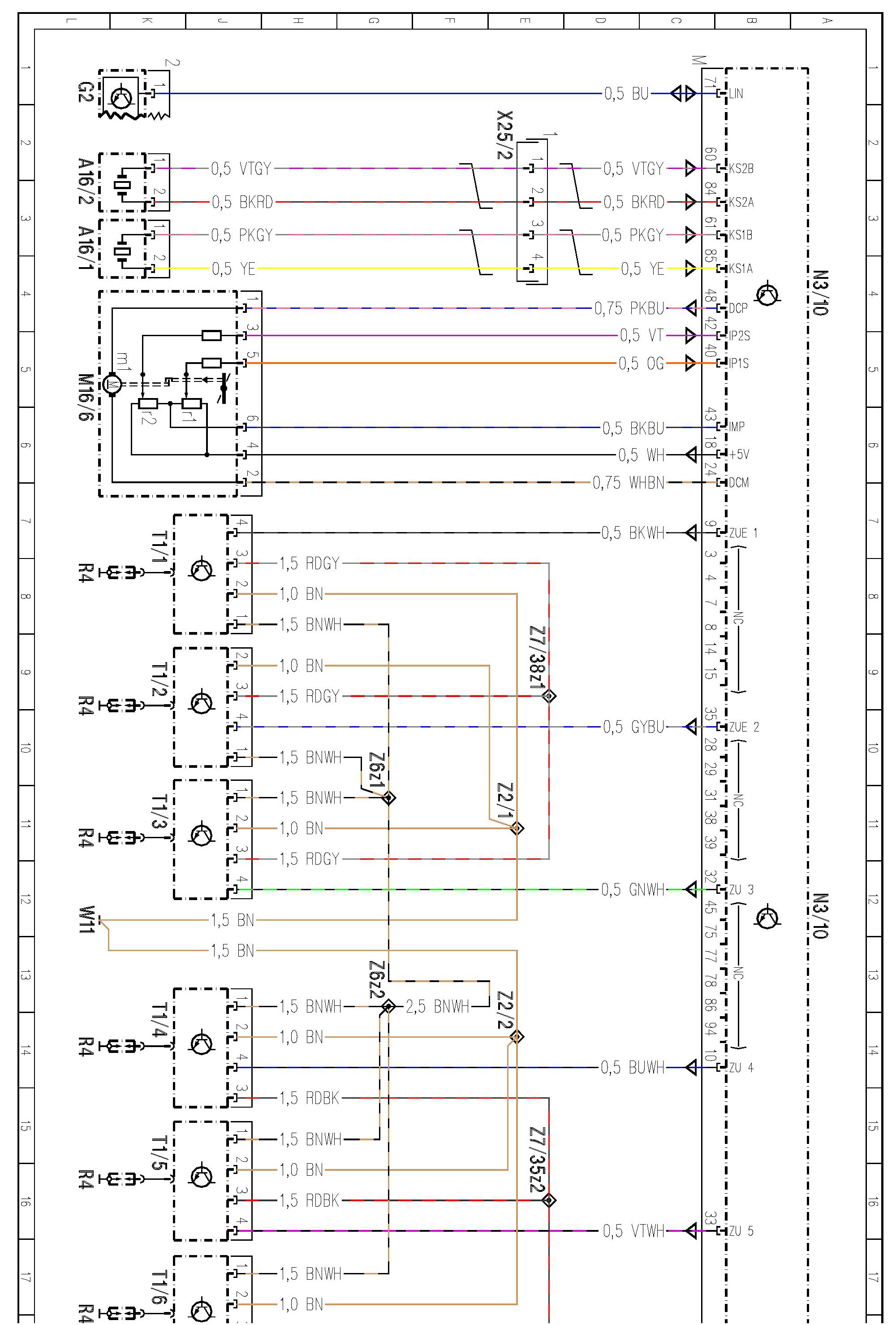

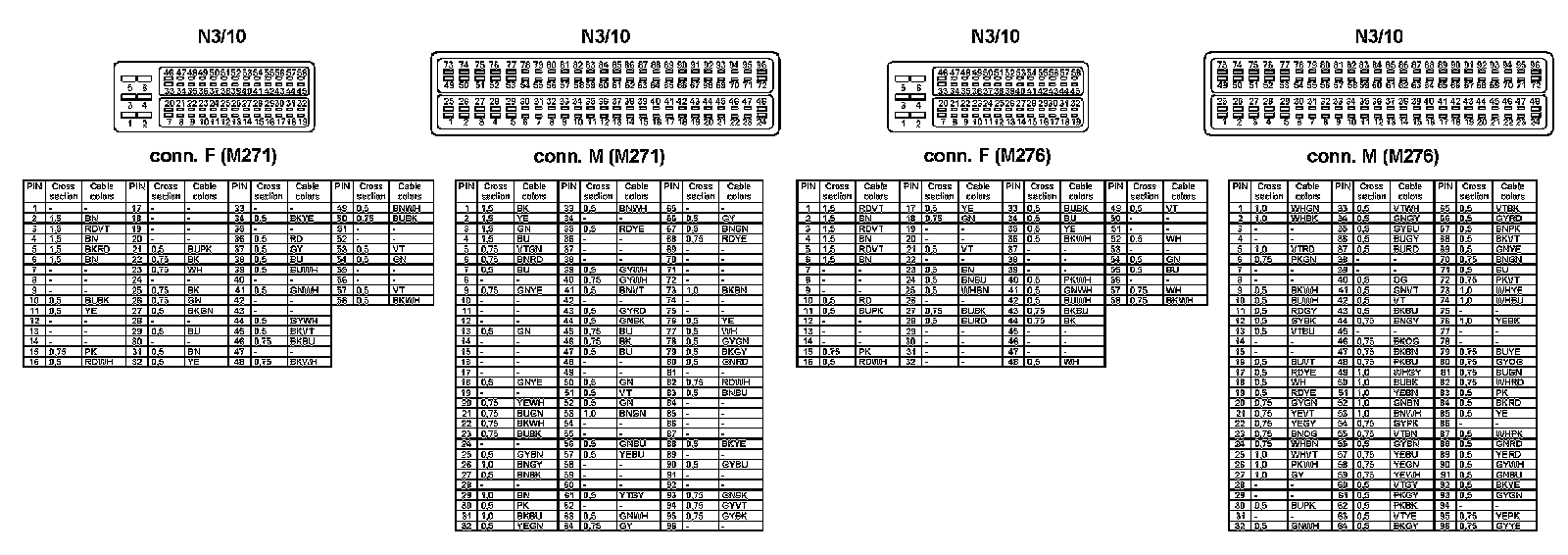

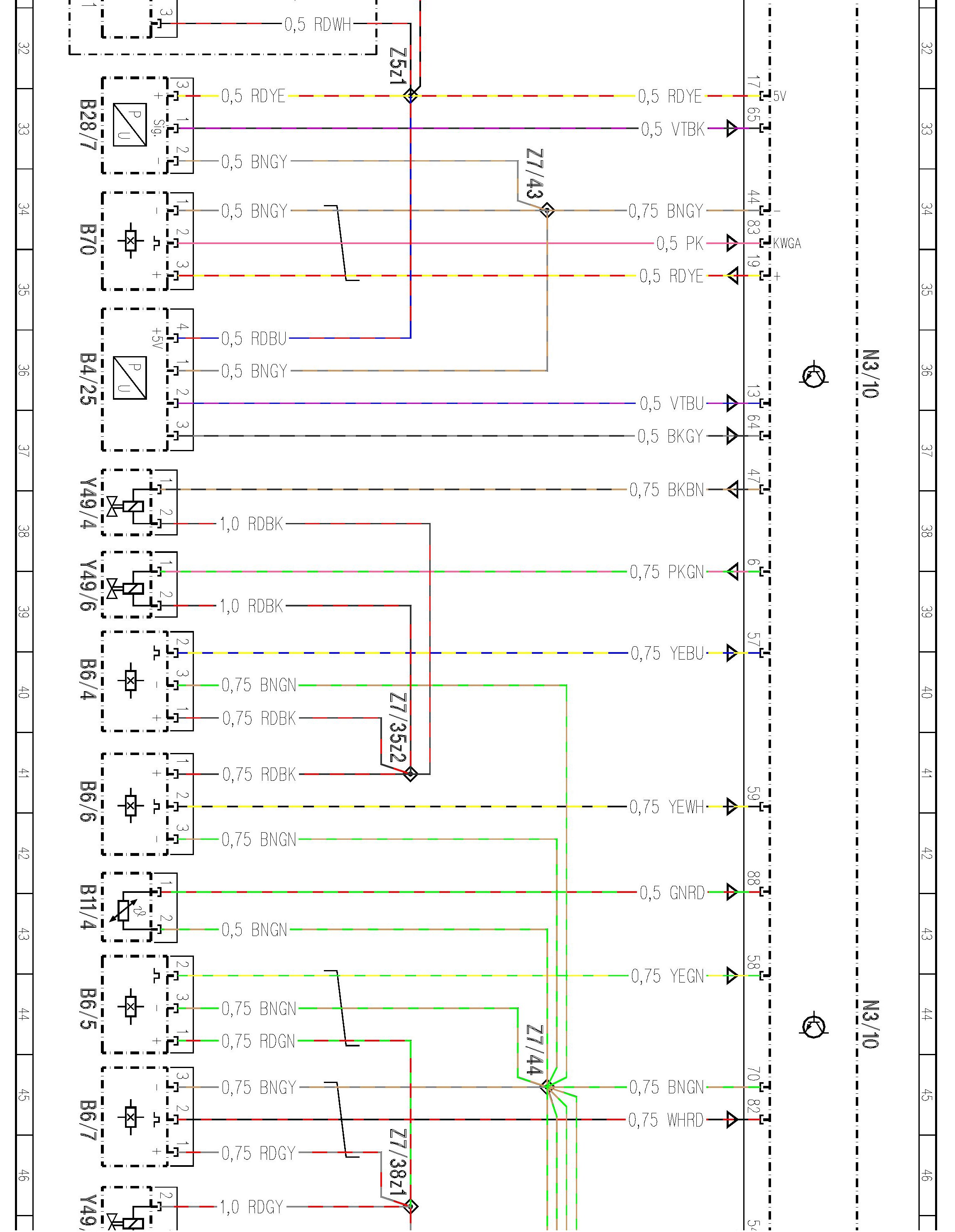

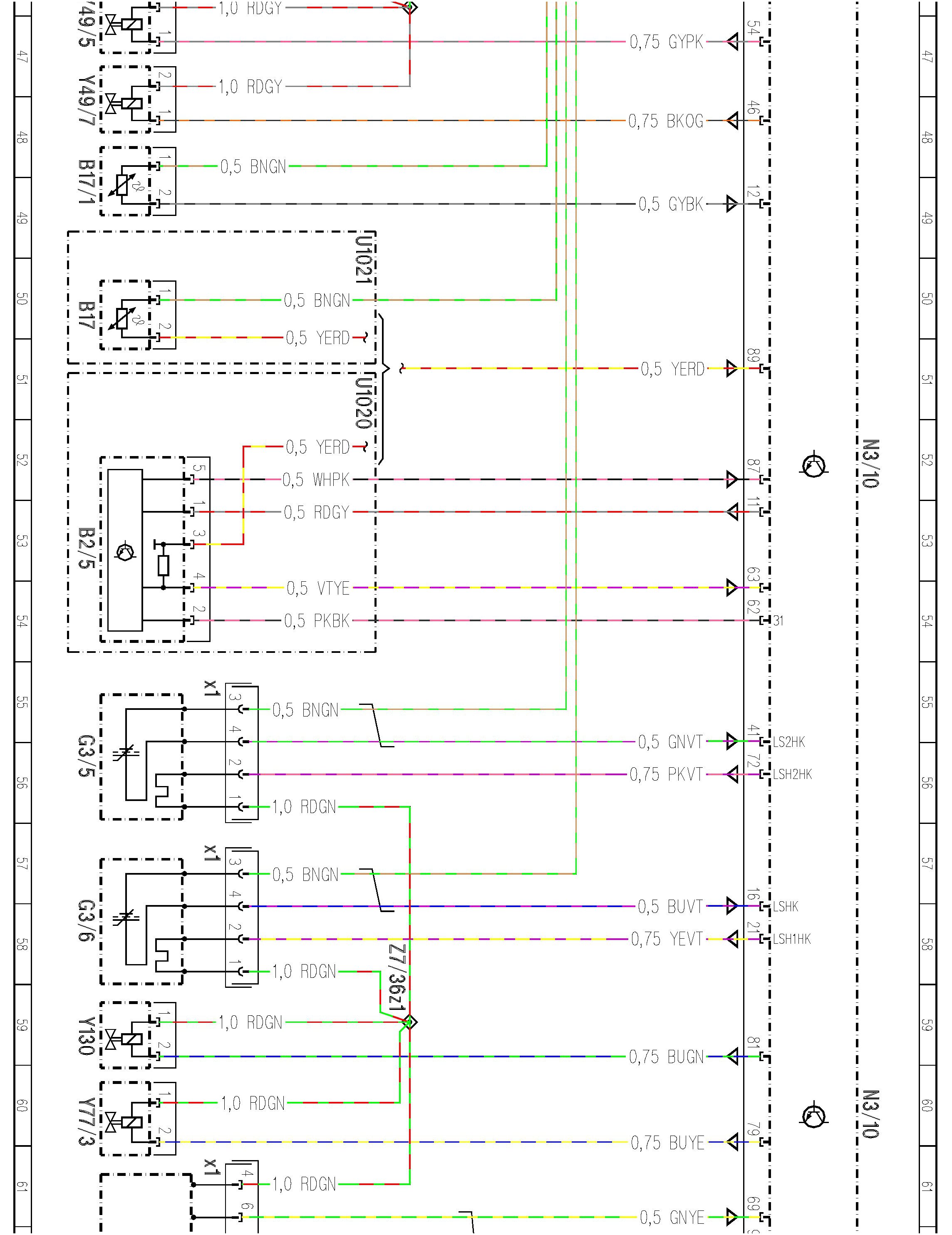

- Control unit N3/10, engine side














































































































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
