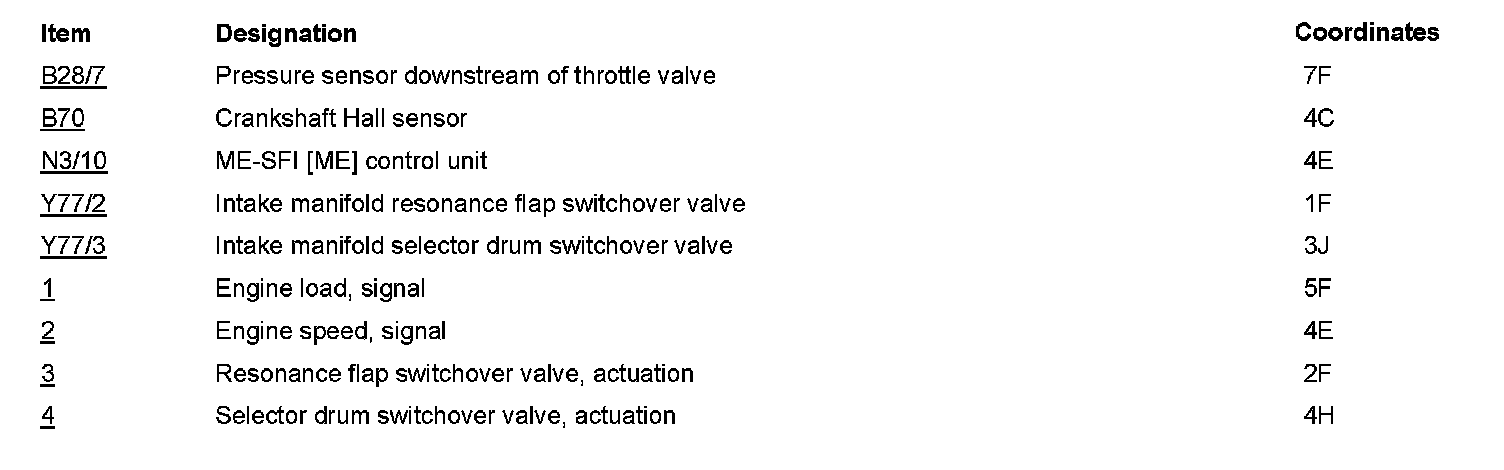

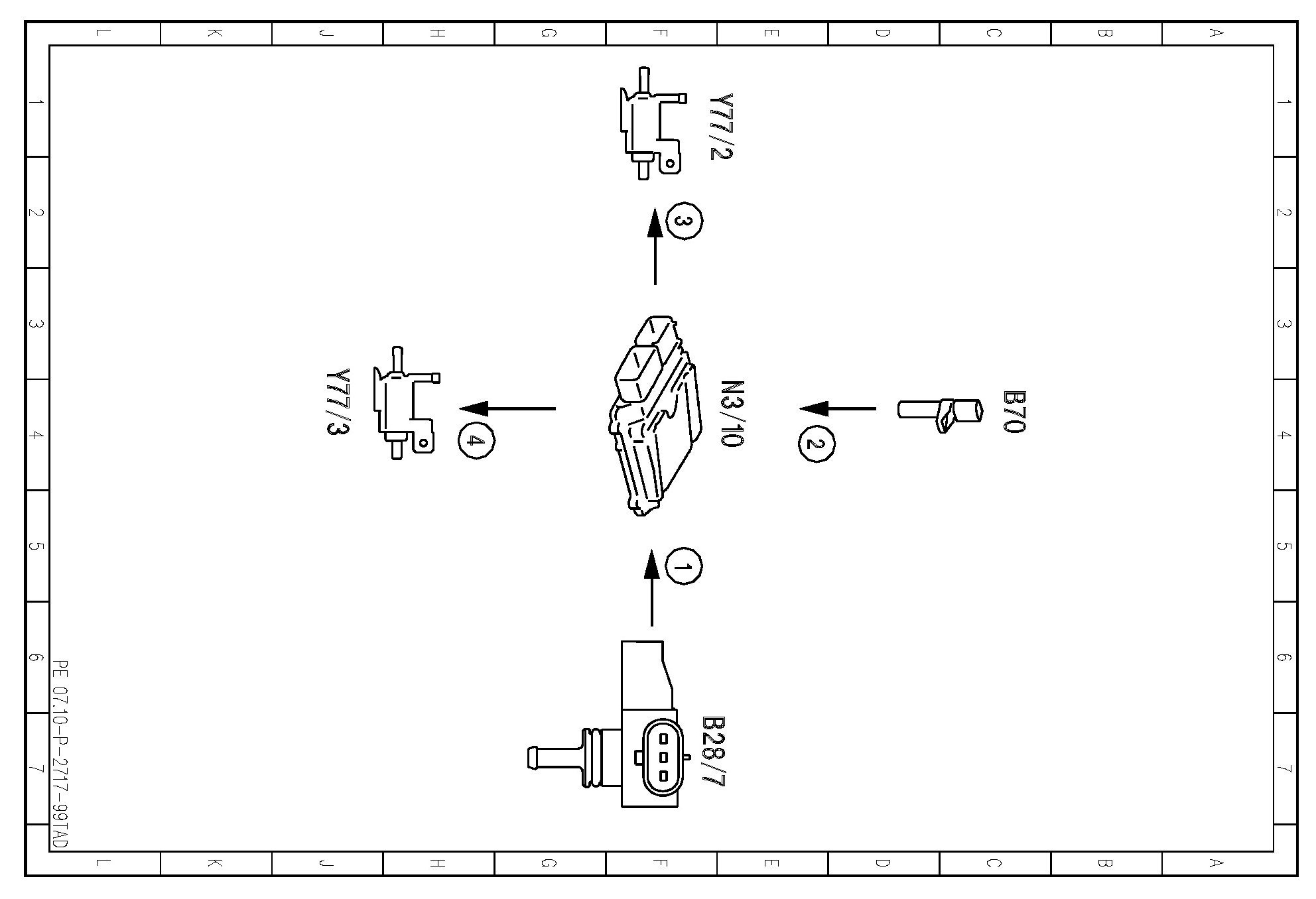

PE07.10-P-2717TAD Electrical Function Schematic For Intake Manifold Switchover

PE07.10-P-2717TAD Electrical Function Schematic For Intake Manifold Switchover

ENGINES 276 in MODEL 172






























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
