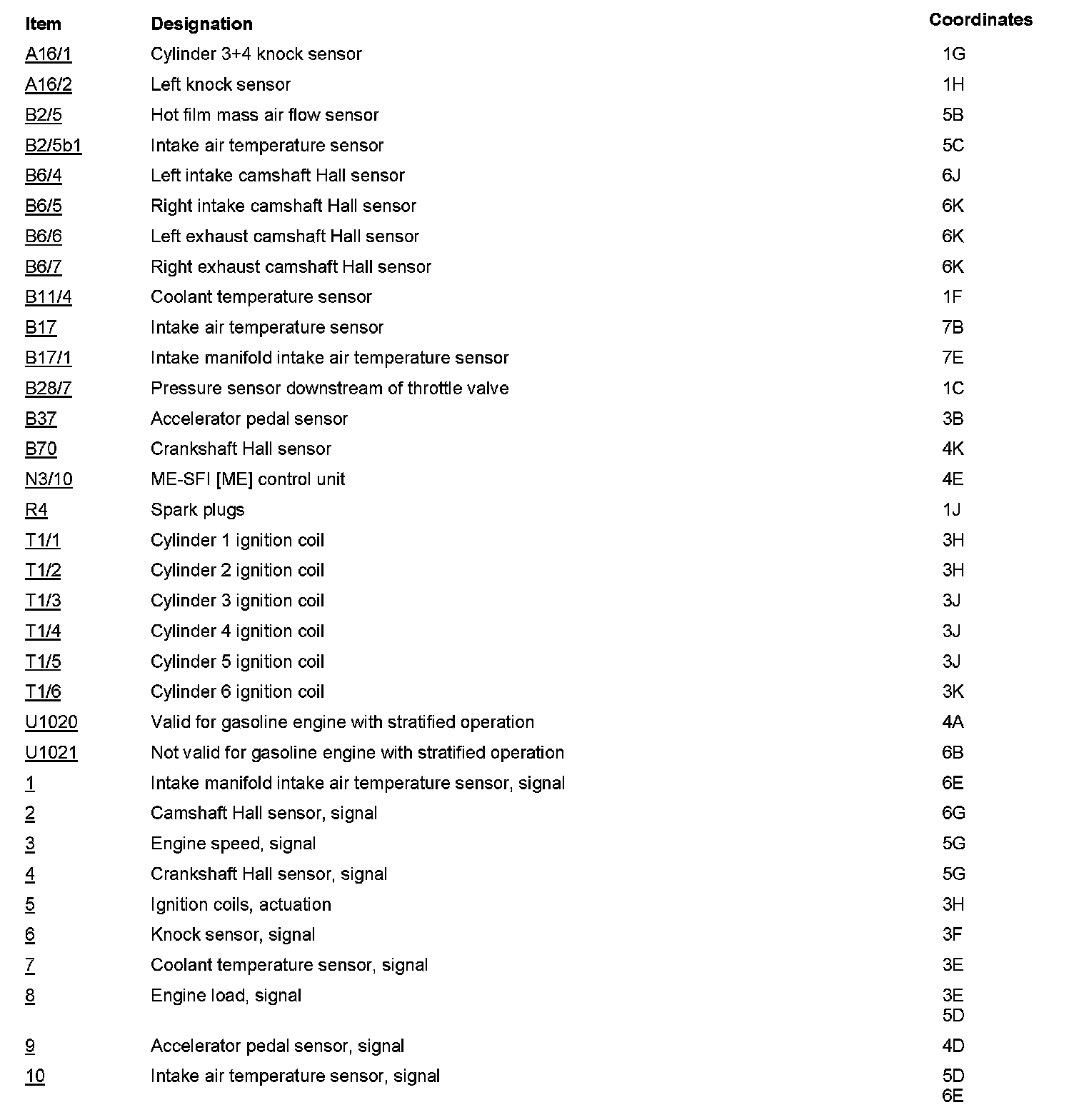

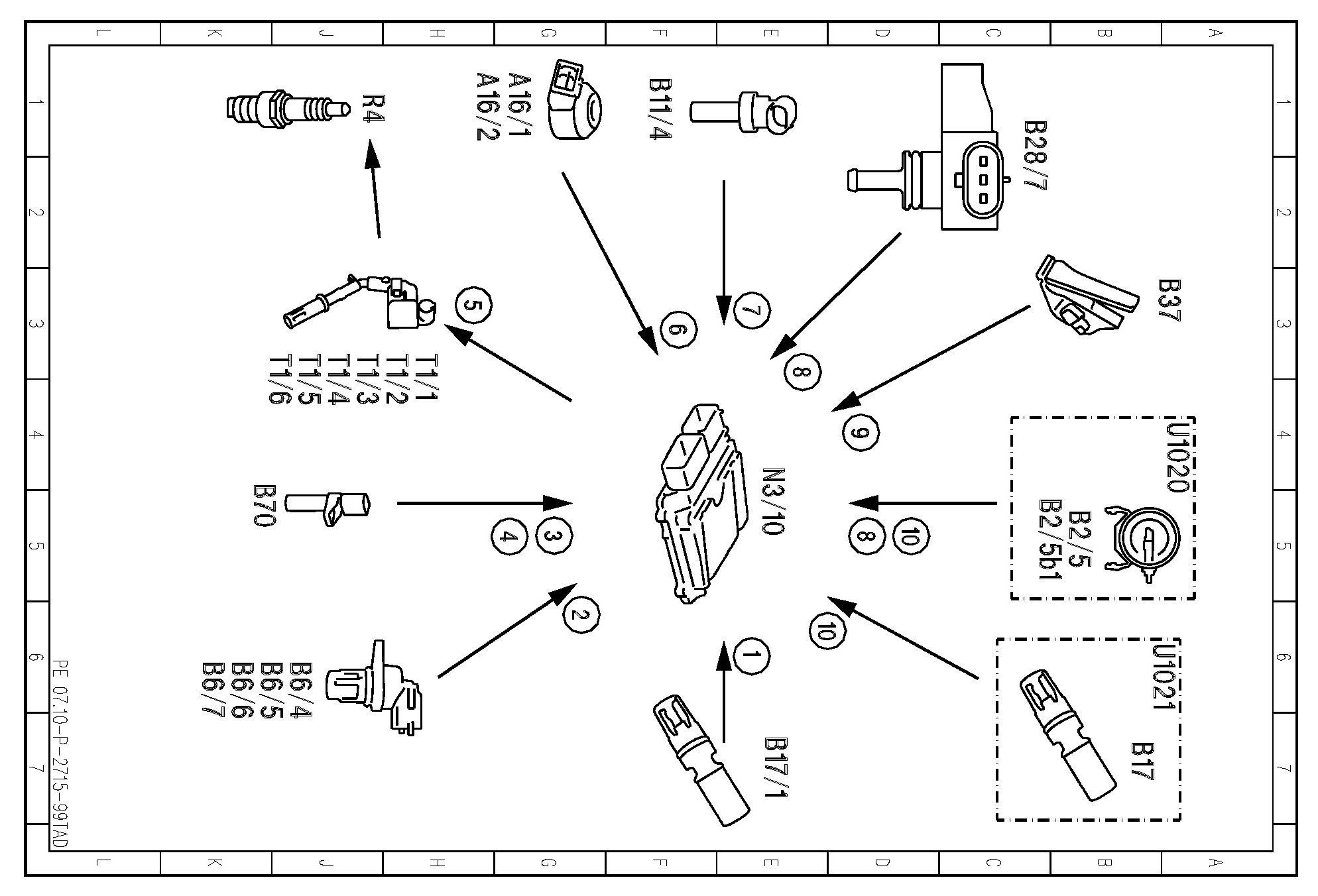

PE07.10-P-2715TAD Electrical Function Schematic For Knock Control

PE07.10-P-2715TAD Electrical Function Schematic For Knock Control

ENGINES 276 in MODEL 172


























































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
