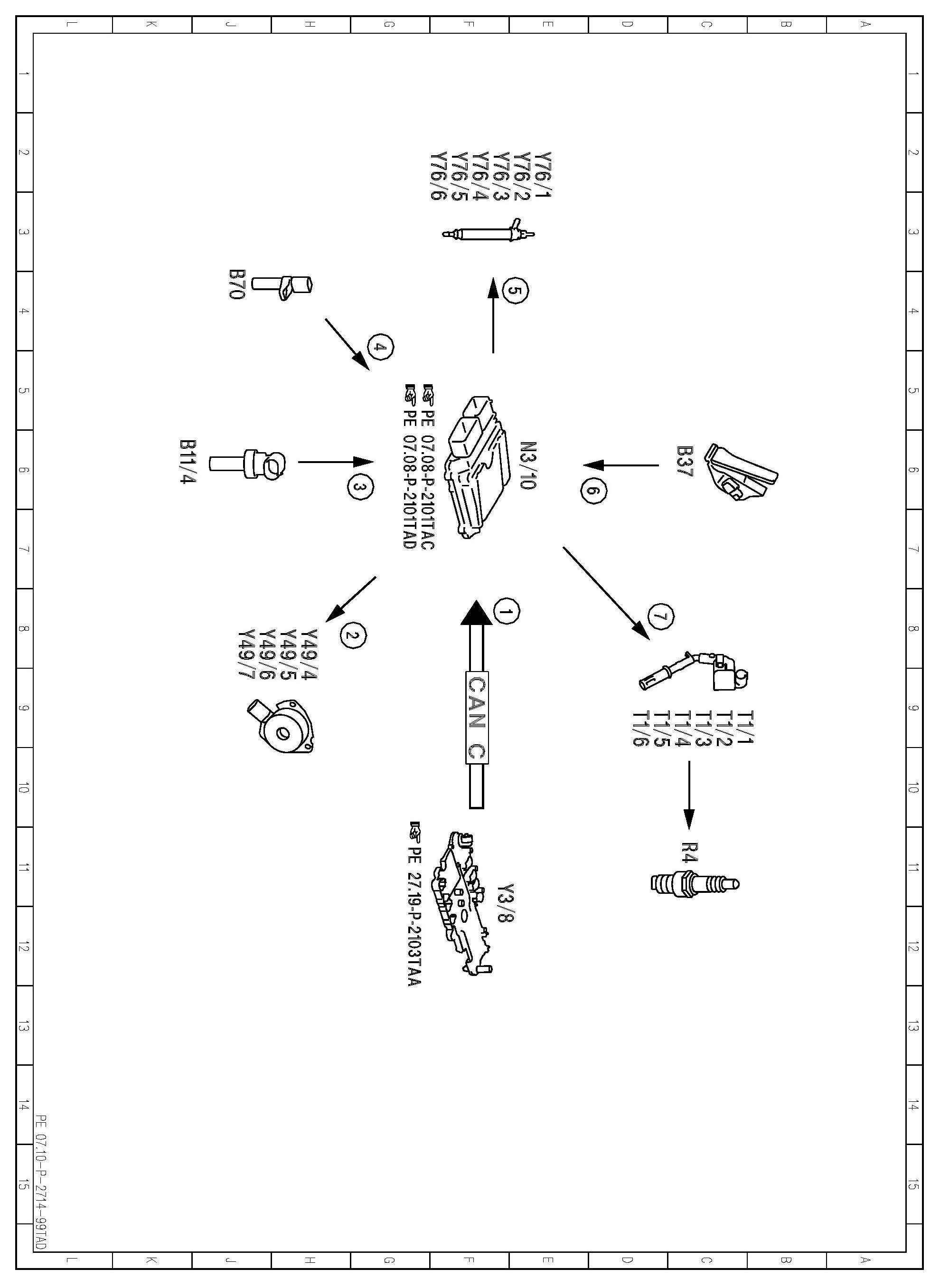

PE07.10-P-2714TAD Electrical Function Schematic For Deceleration Fuel Shutoff

PE07.10-P-2714TAD Electrical Function Schematic For Deceleration Fuel Shutoff

ENGINES 276 In MODEL 172






























































































Component Locations: component location photographs can be found via their component names at the vehicle level. Locations
