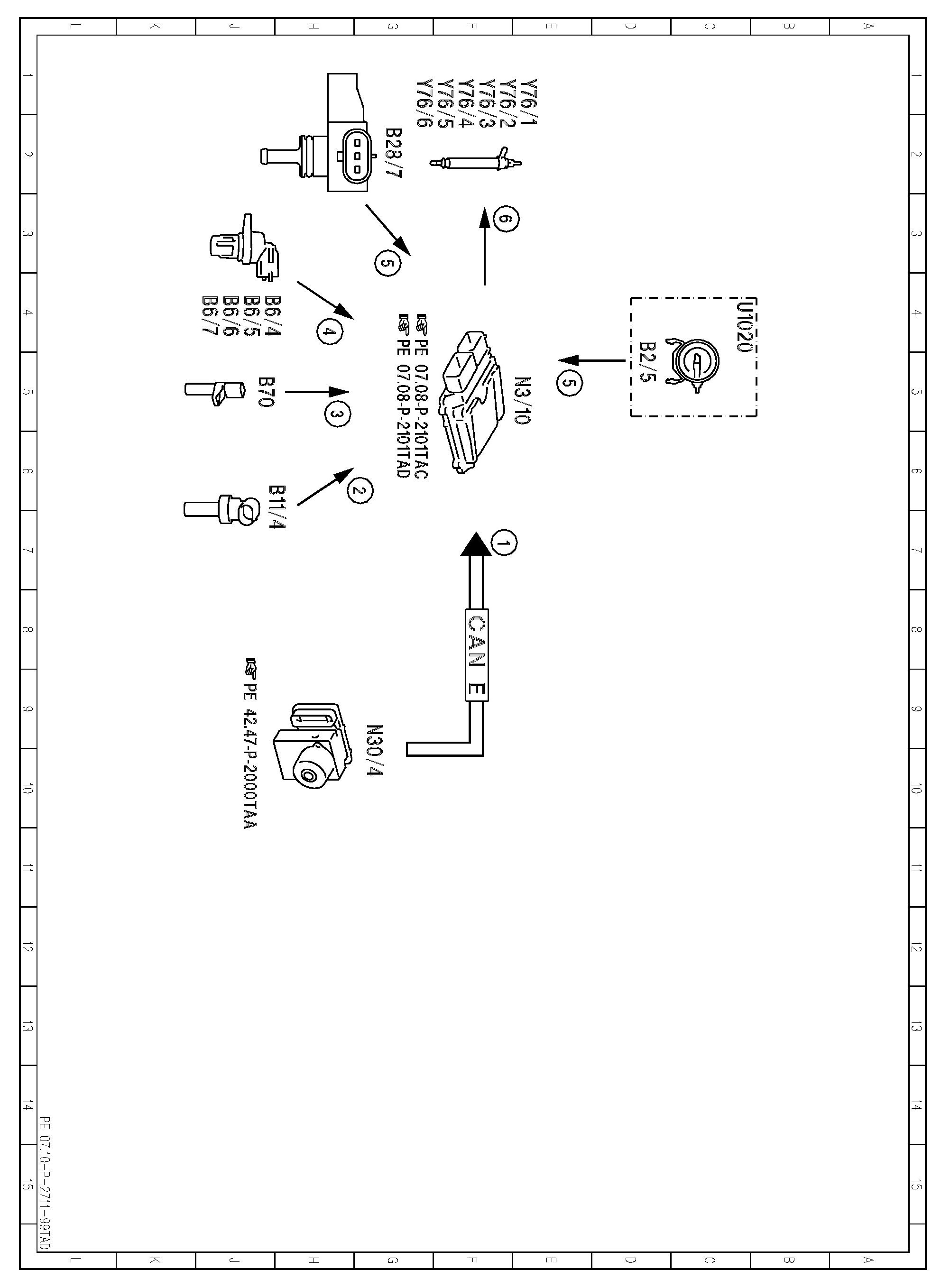

PE07.10-P-2711TAD Electrical Function Schematic For Smooth Running Control

PE07.10-P-2711TAD Electrical Function Schematic For Smooth Running Control

ENGINES 276 in MODEL 172

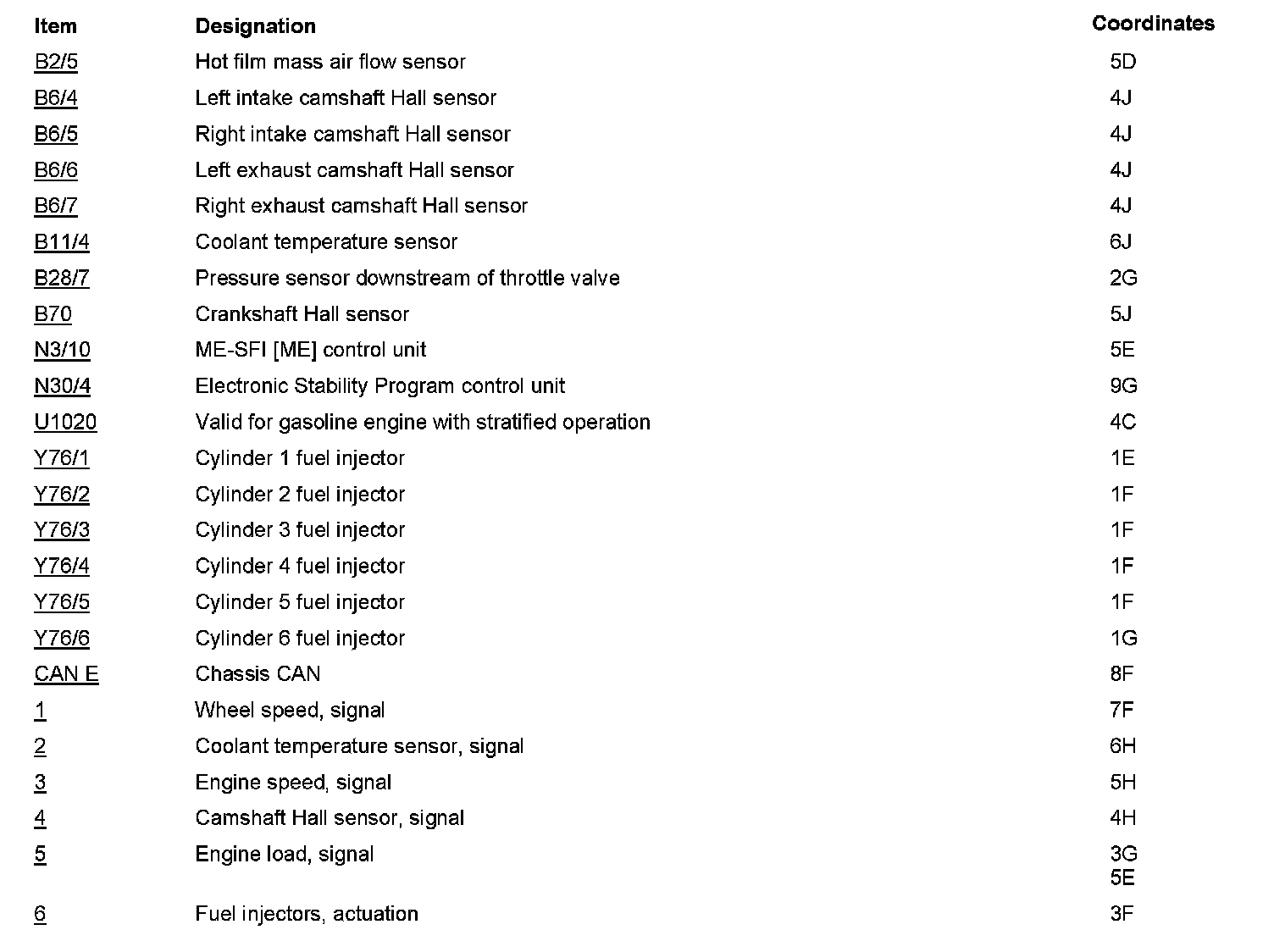

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
