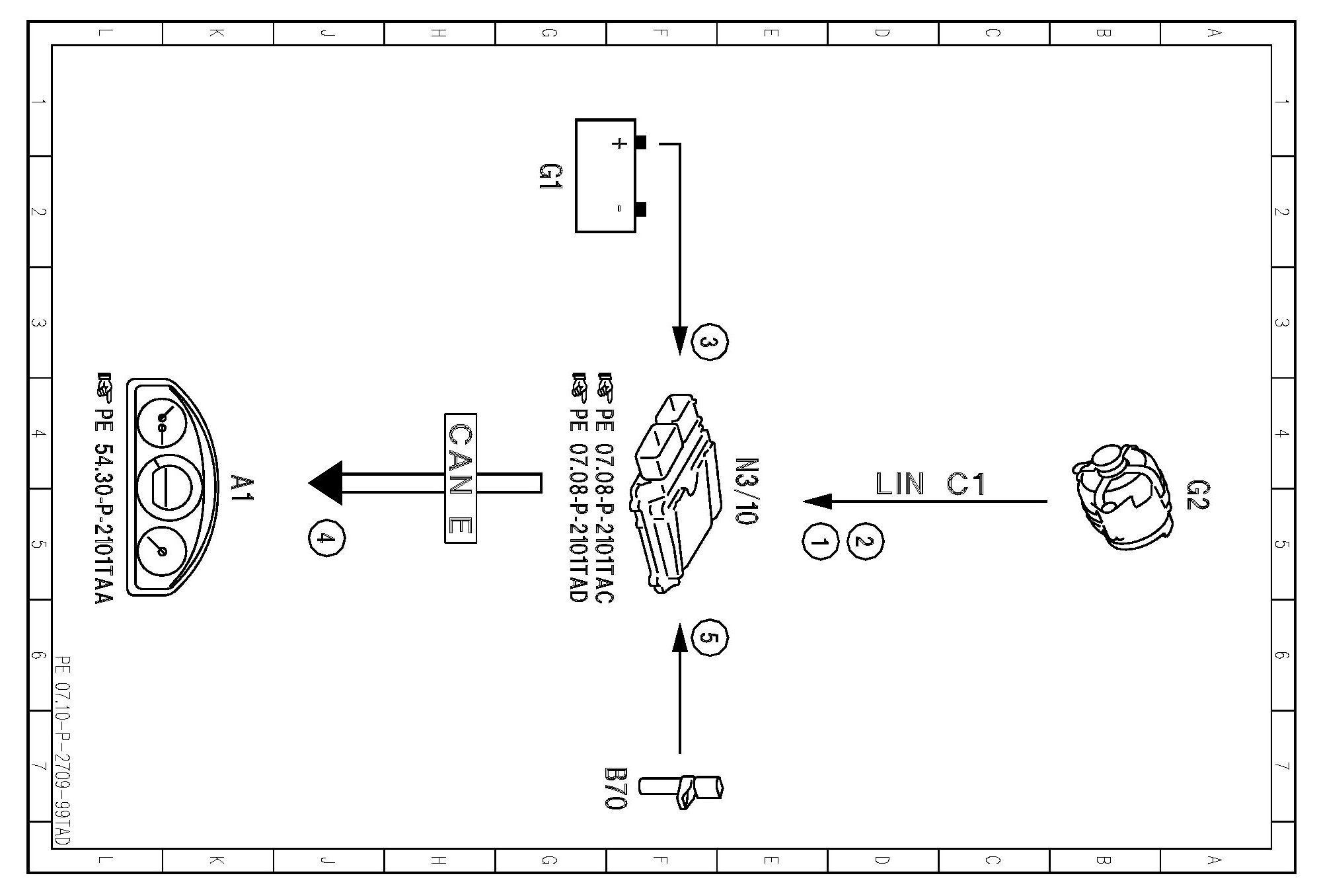

PE07.10-P-2709TAD Electrical Function Schematic For Alternator Interface

PE07.10-P-2709TAD Electrical Function Schematic For Alternator Interface

ENGINES 276 in MODEL 172


























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
