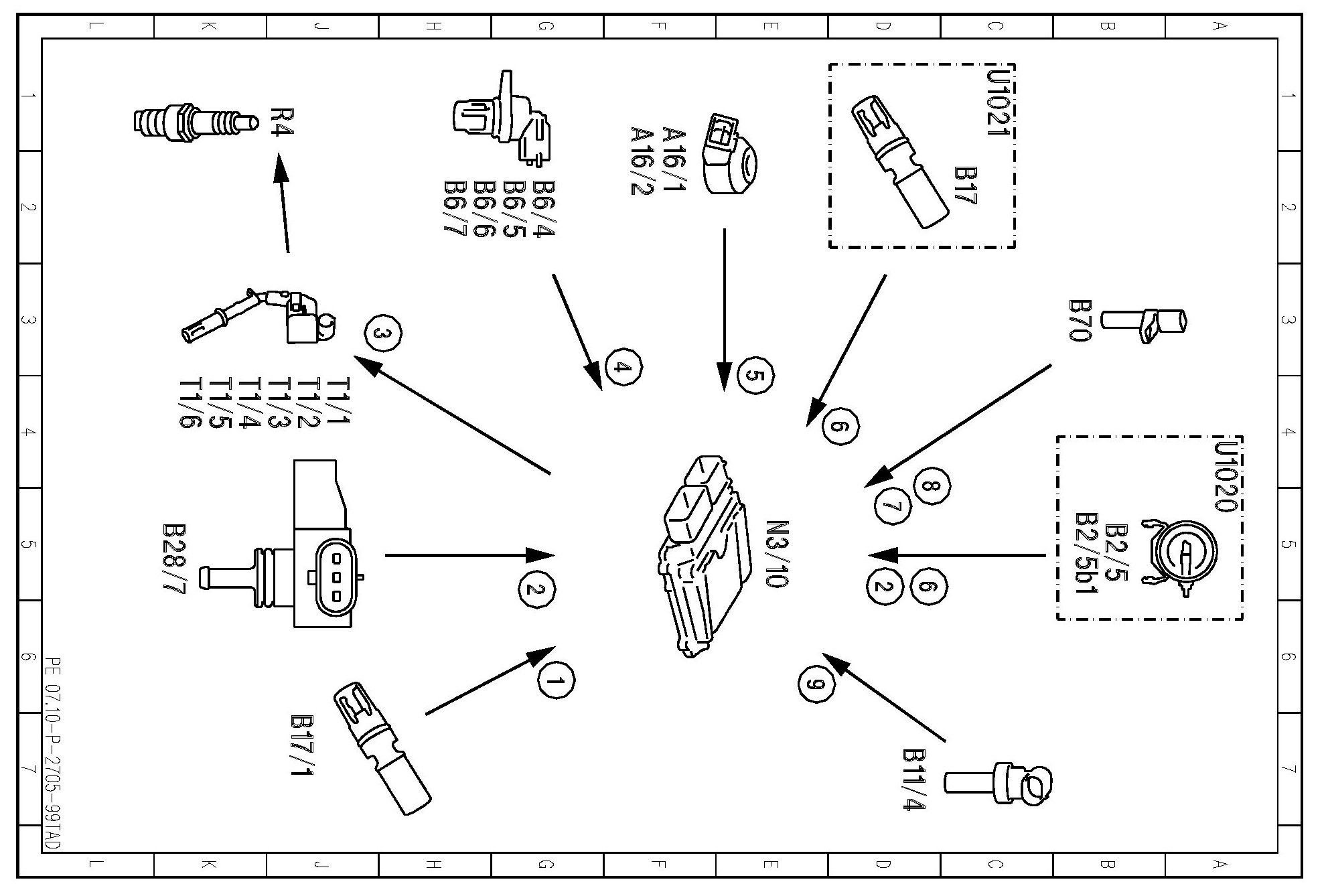

PE07.10-P-2705TAD Electrical Function Schematic For Ignition System

PE07.10-P-2705TAD Electrical Function Schematic For Ignition System

ENGINES 276 in MODEL 172

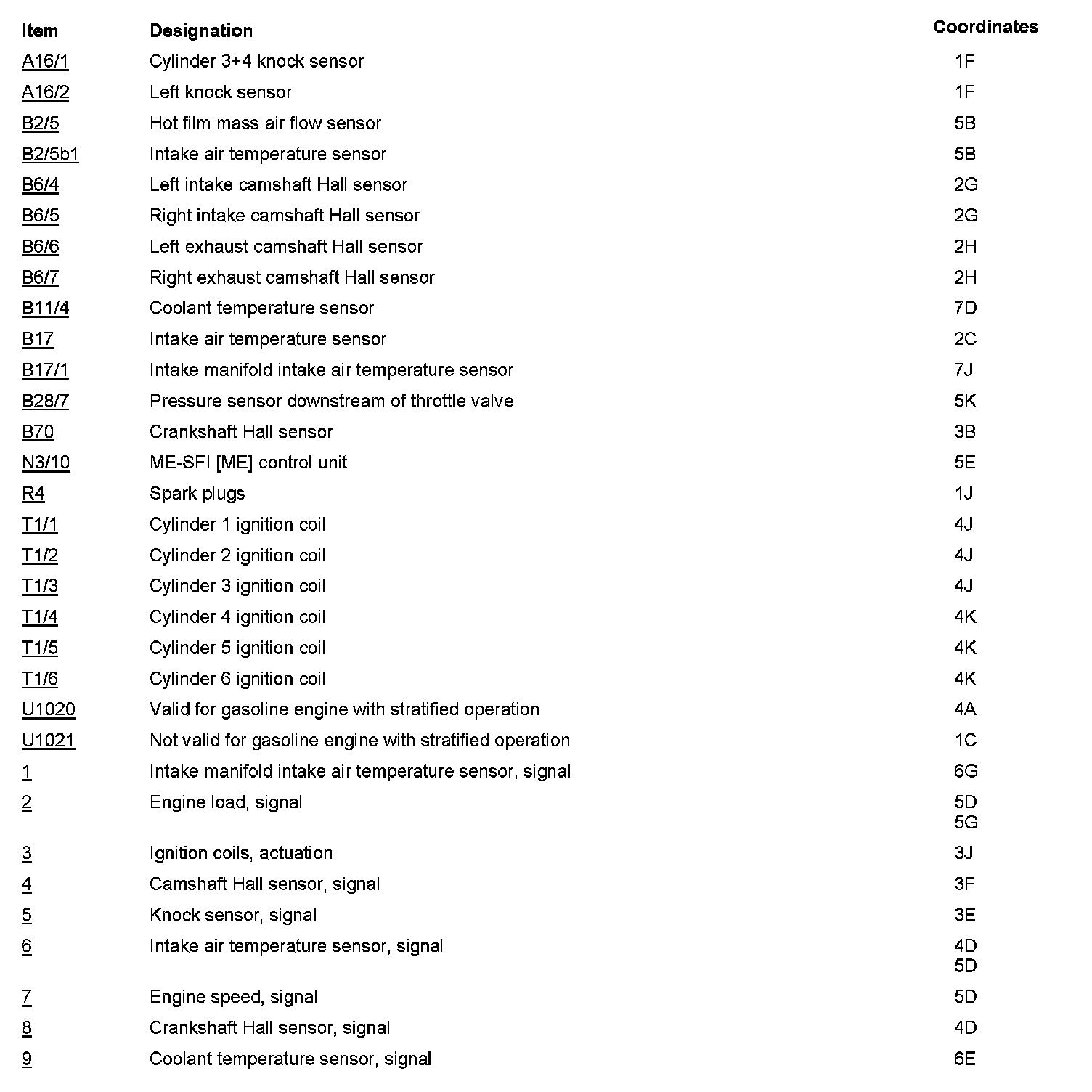

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
