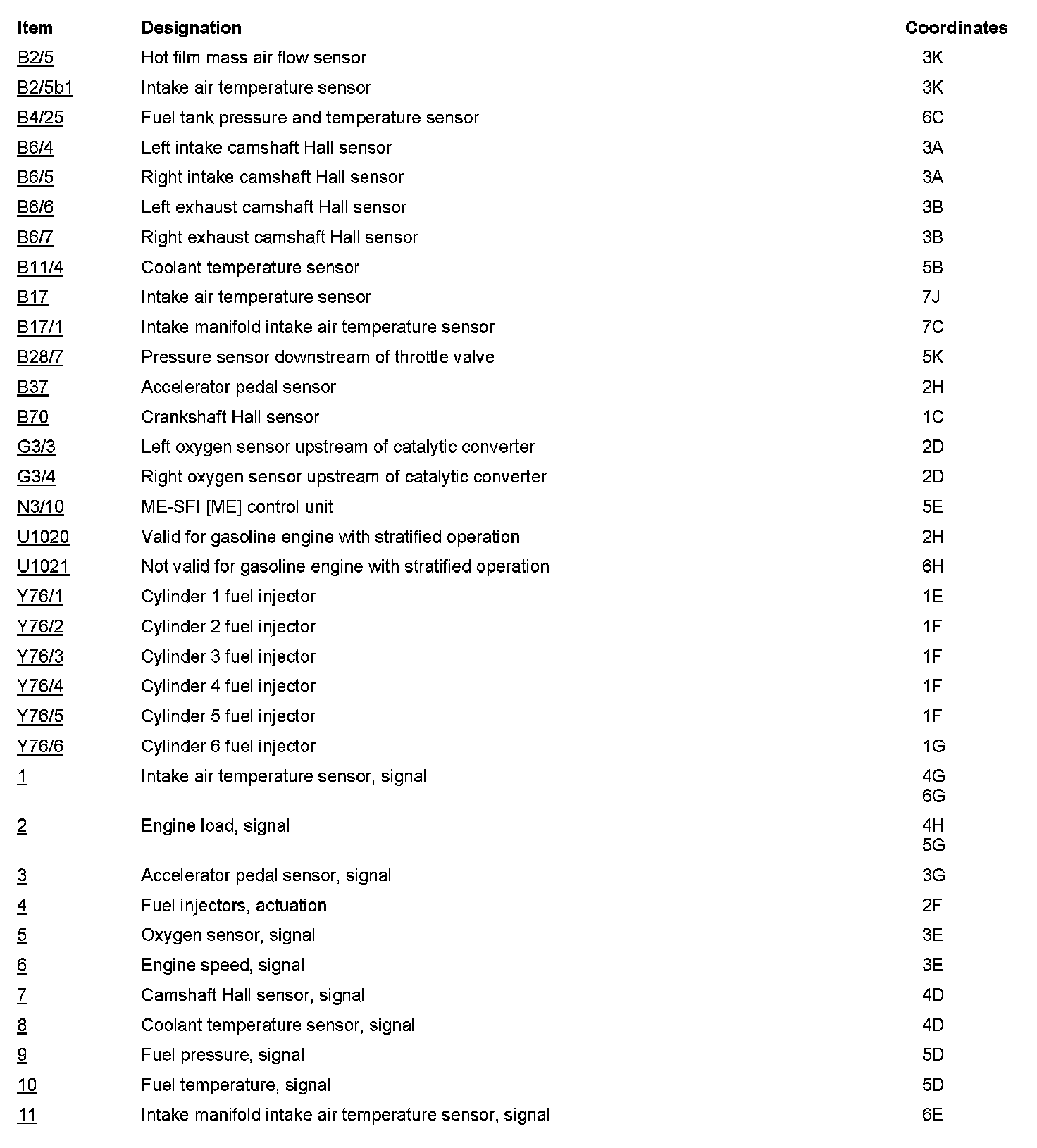

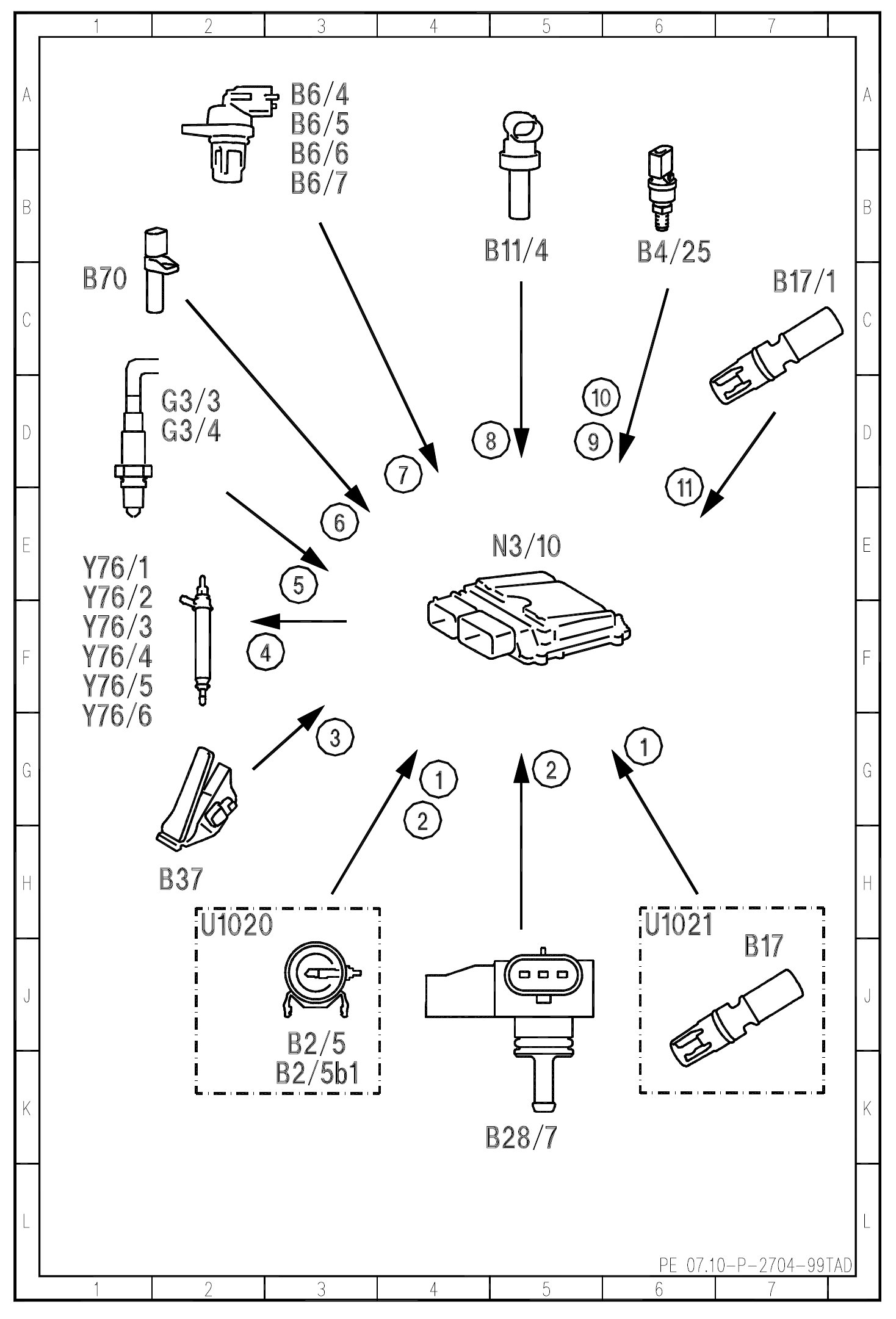

PE07.10-P-2704TAD Electrical Function Diagram For Injection Control

PE07.10-P-2704TAD Electrical Function Diagram For Injection Control

ENGINES 276 in MODEL 172

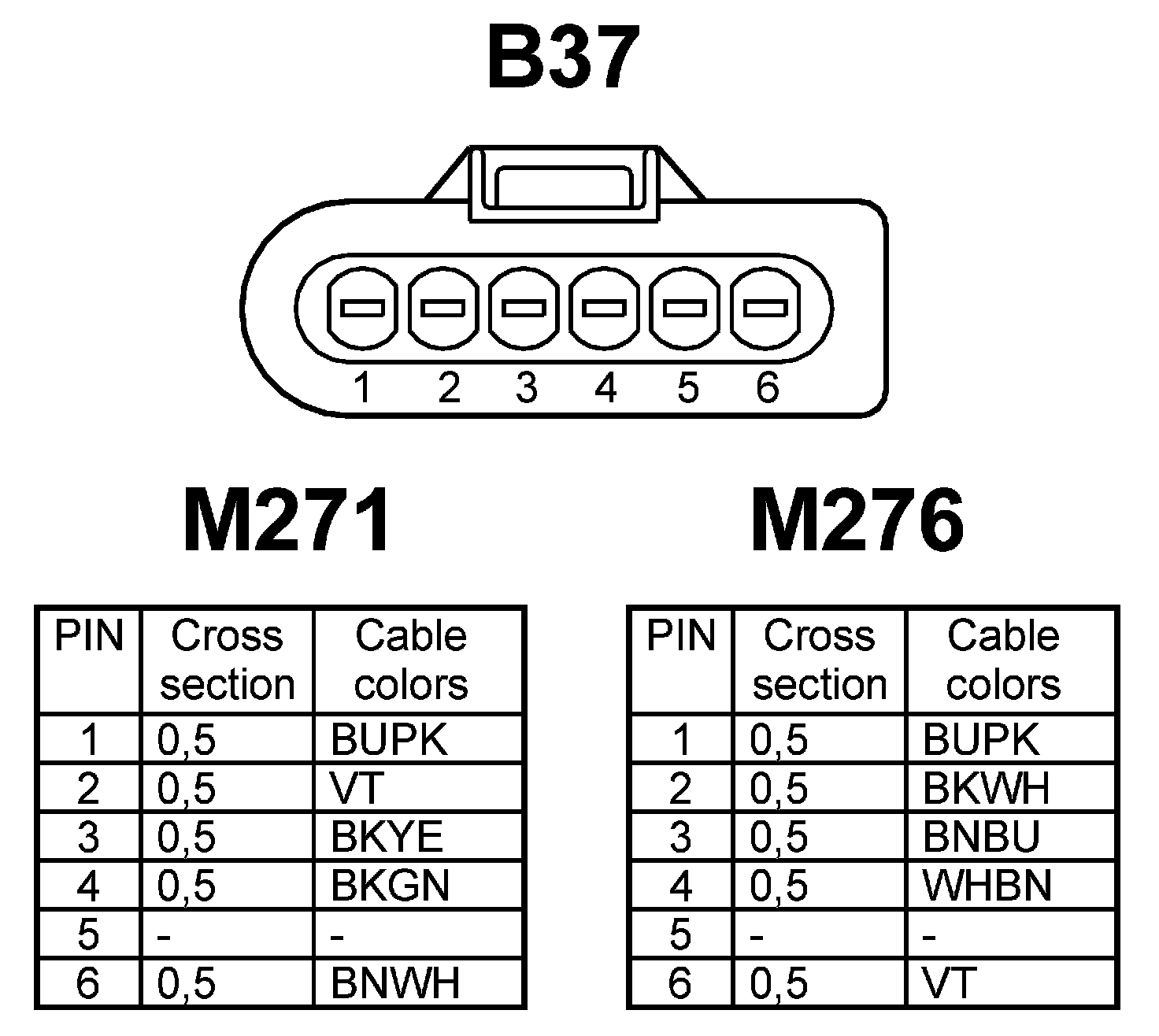

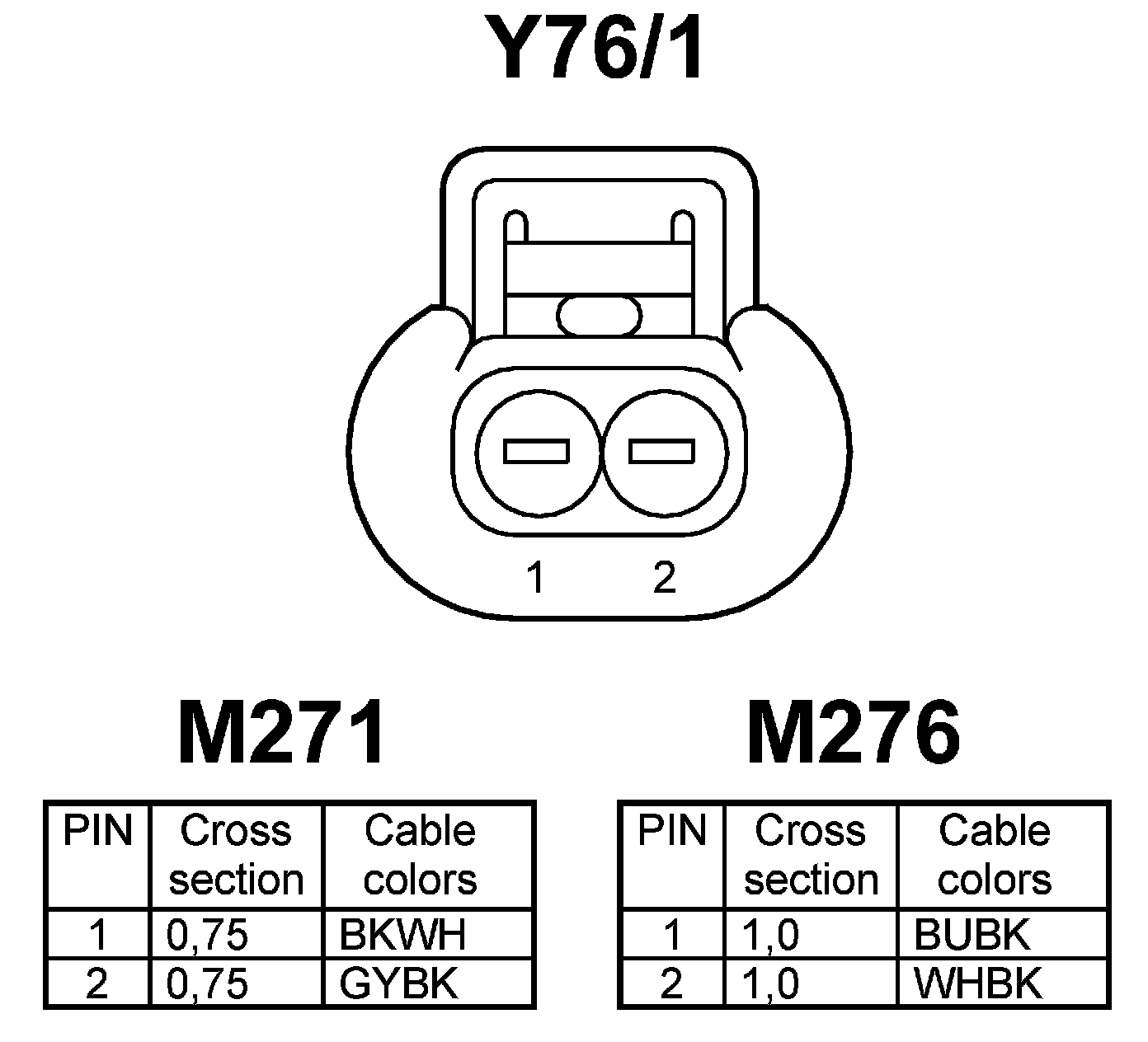

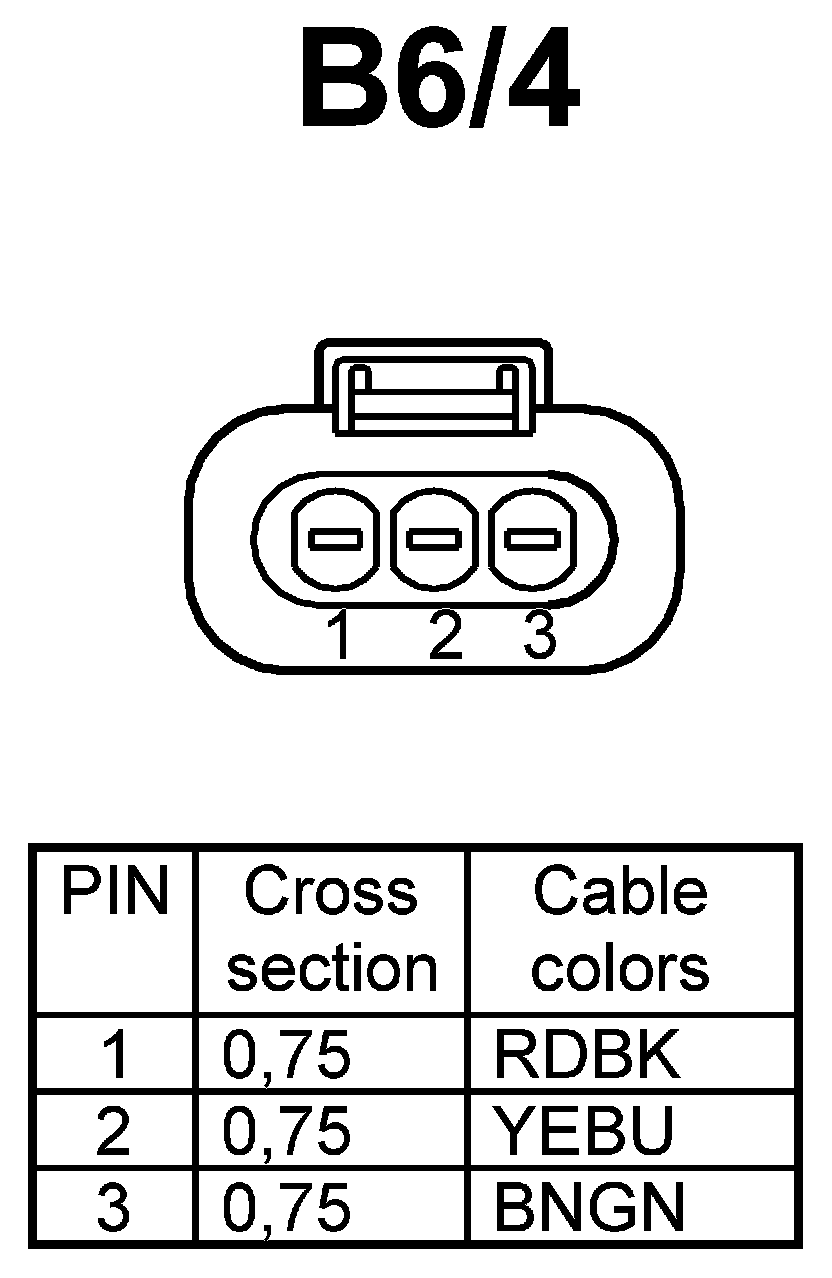

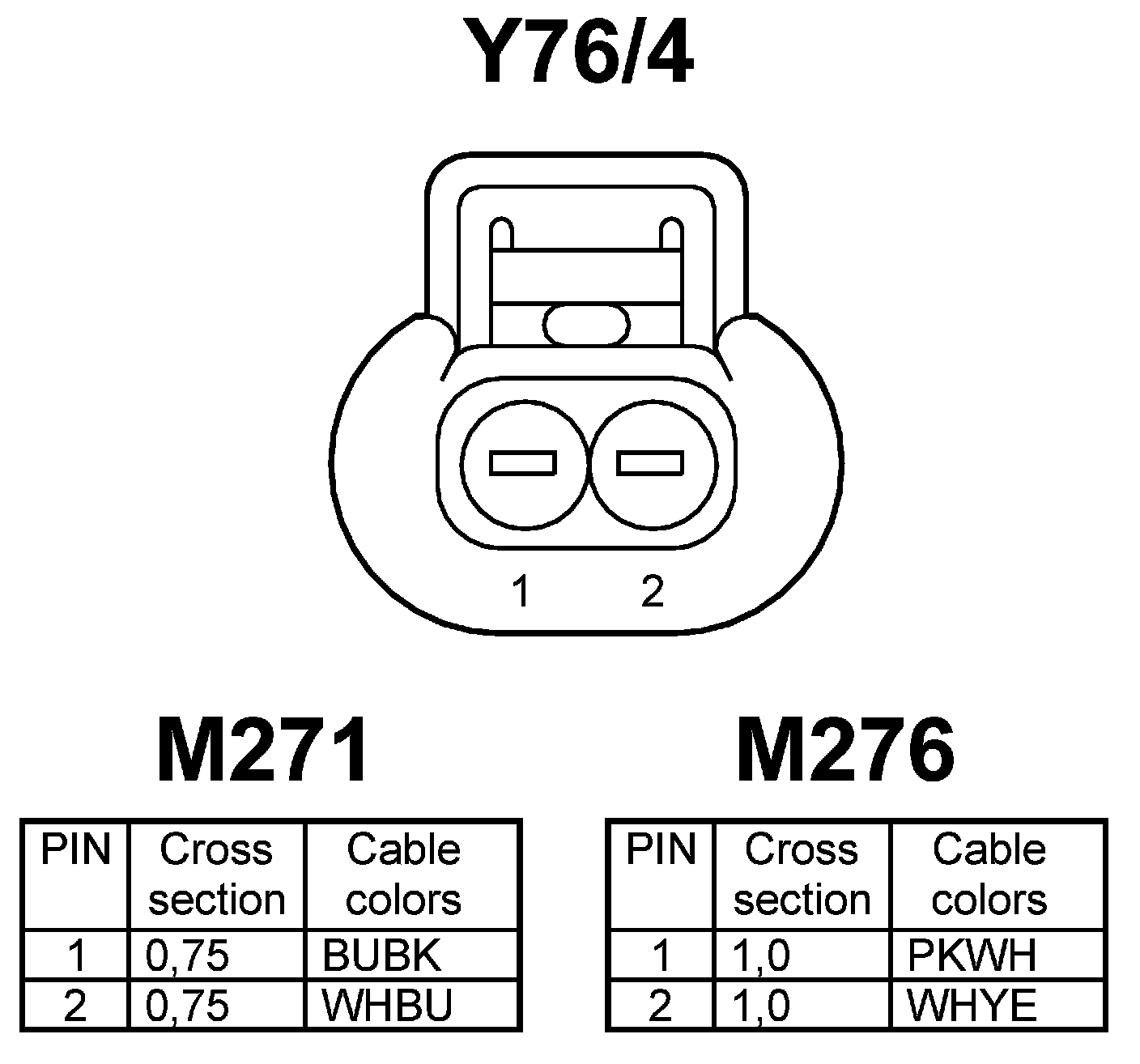

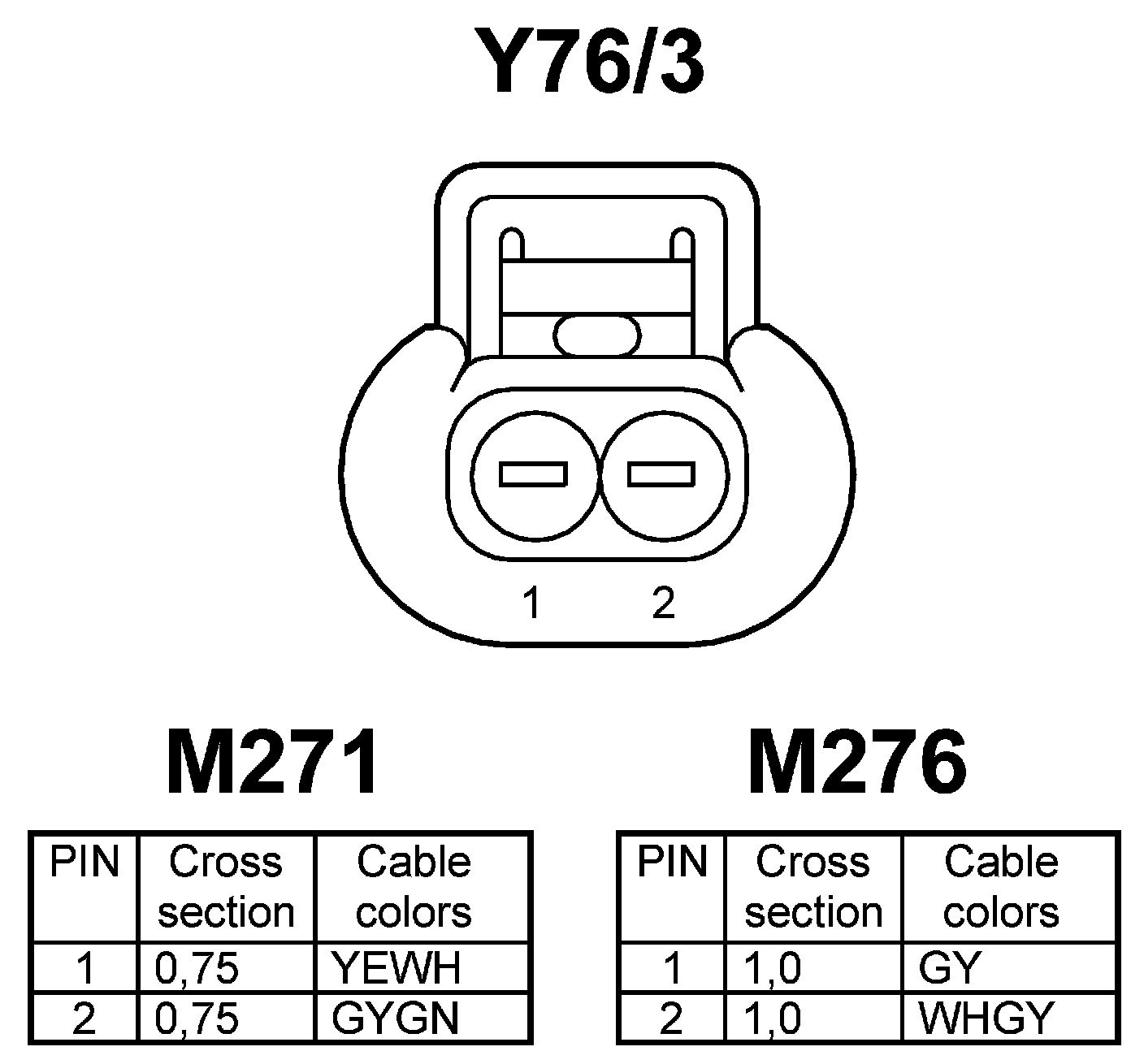

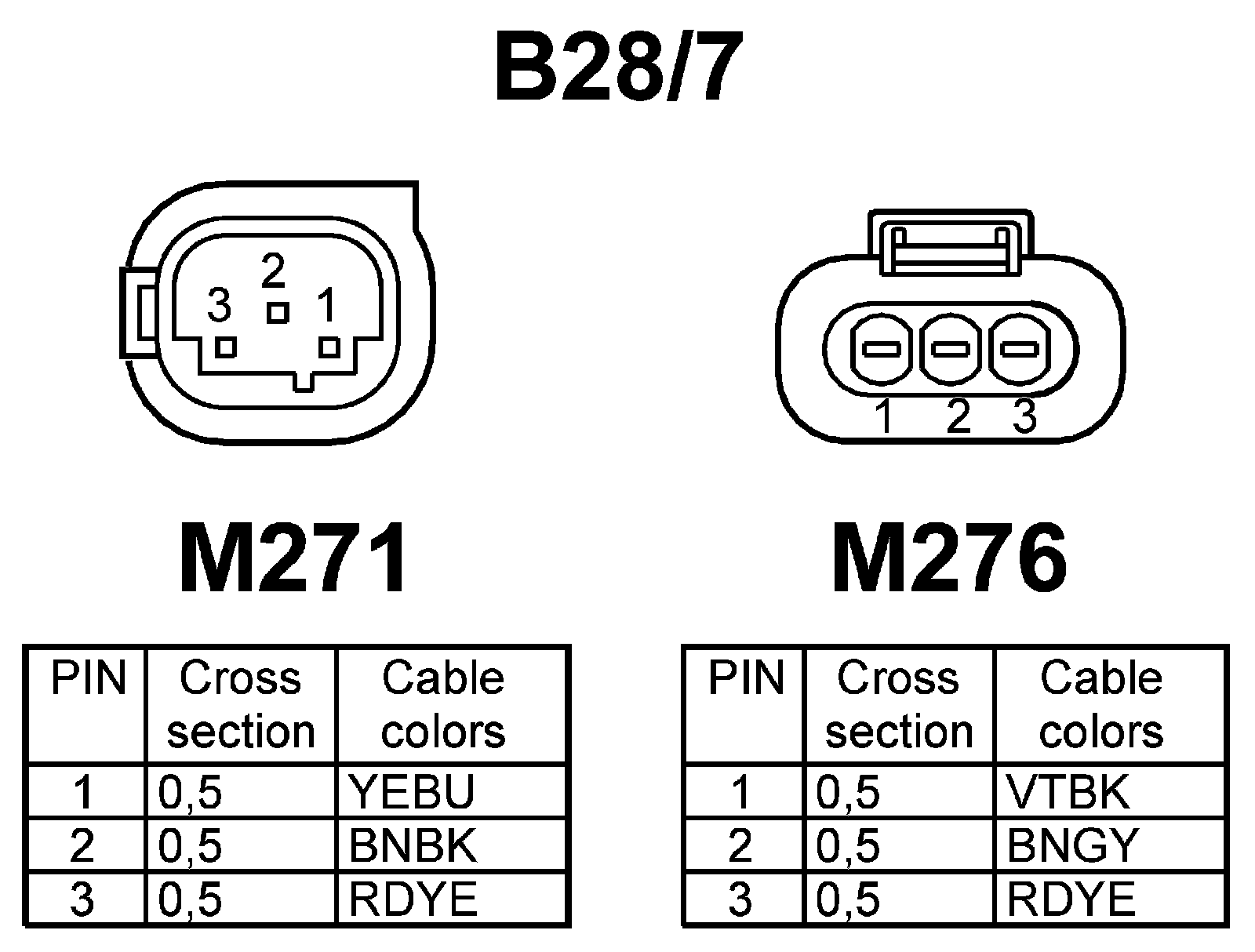

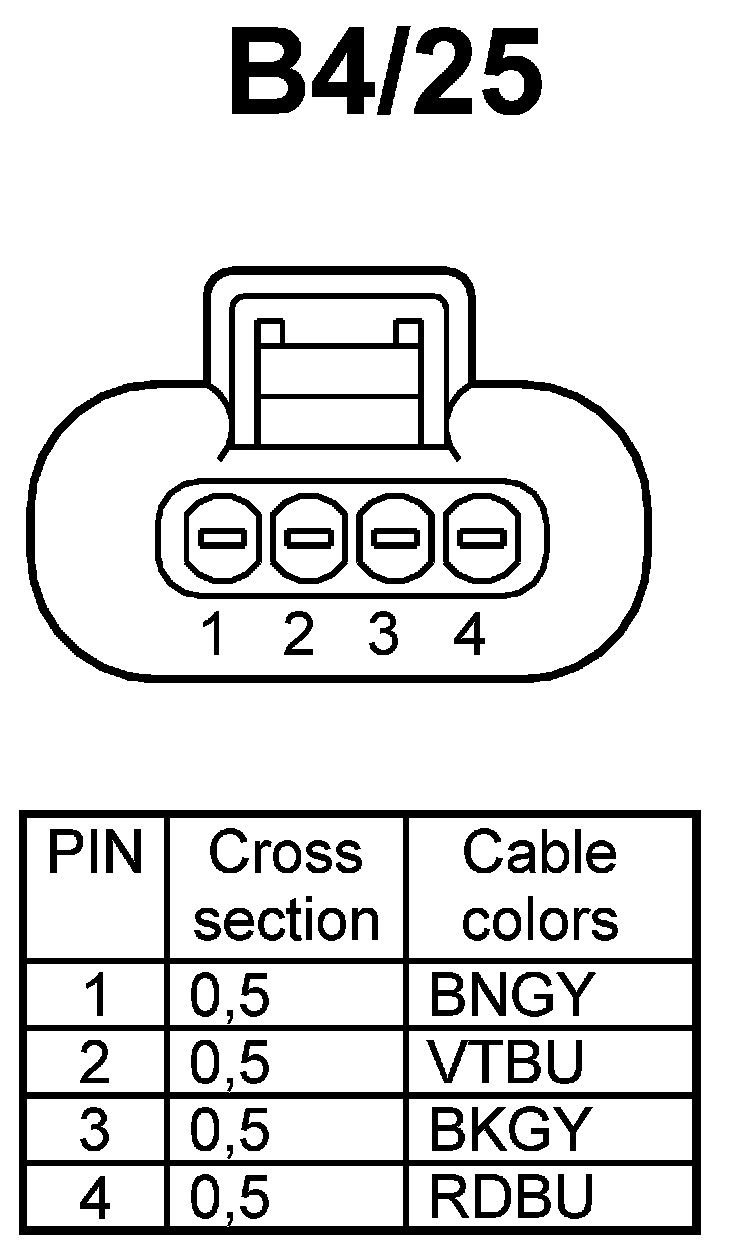

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
