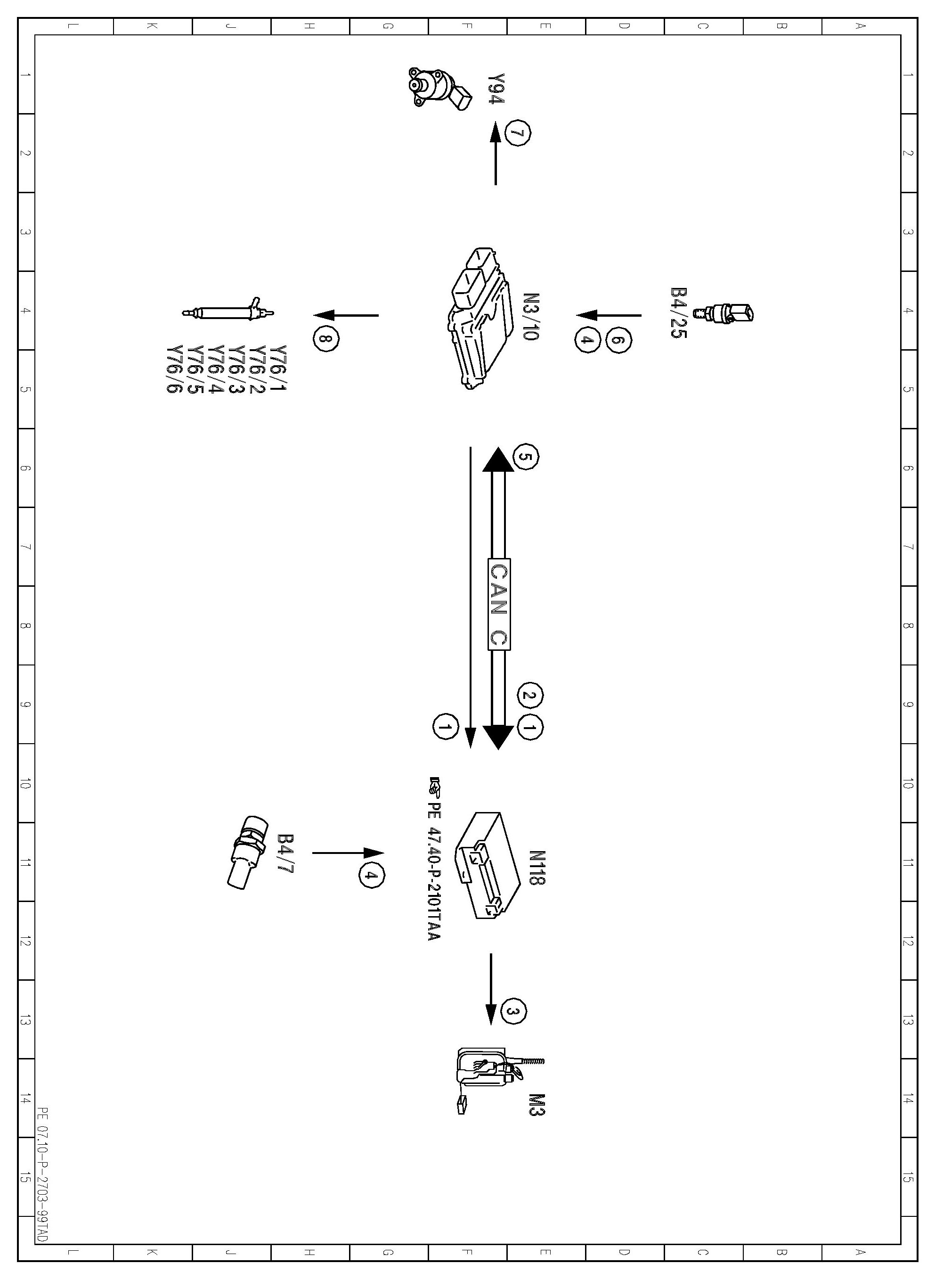

PE07.10-P-2703TAD Electrical Function Schematic For Fuel Supply

PE07.10-P-2703TAD Electrical Function Schematic For Fuel Supply

ENGINES 276 in MODEL 172






















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
