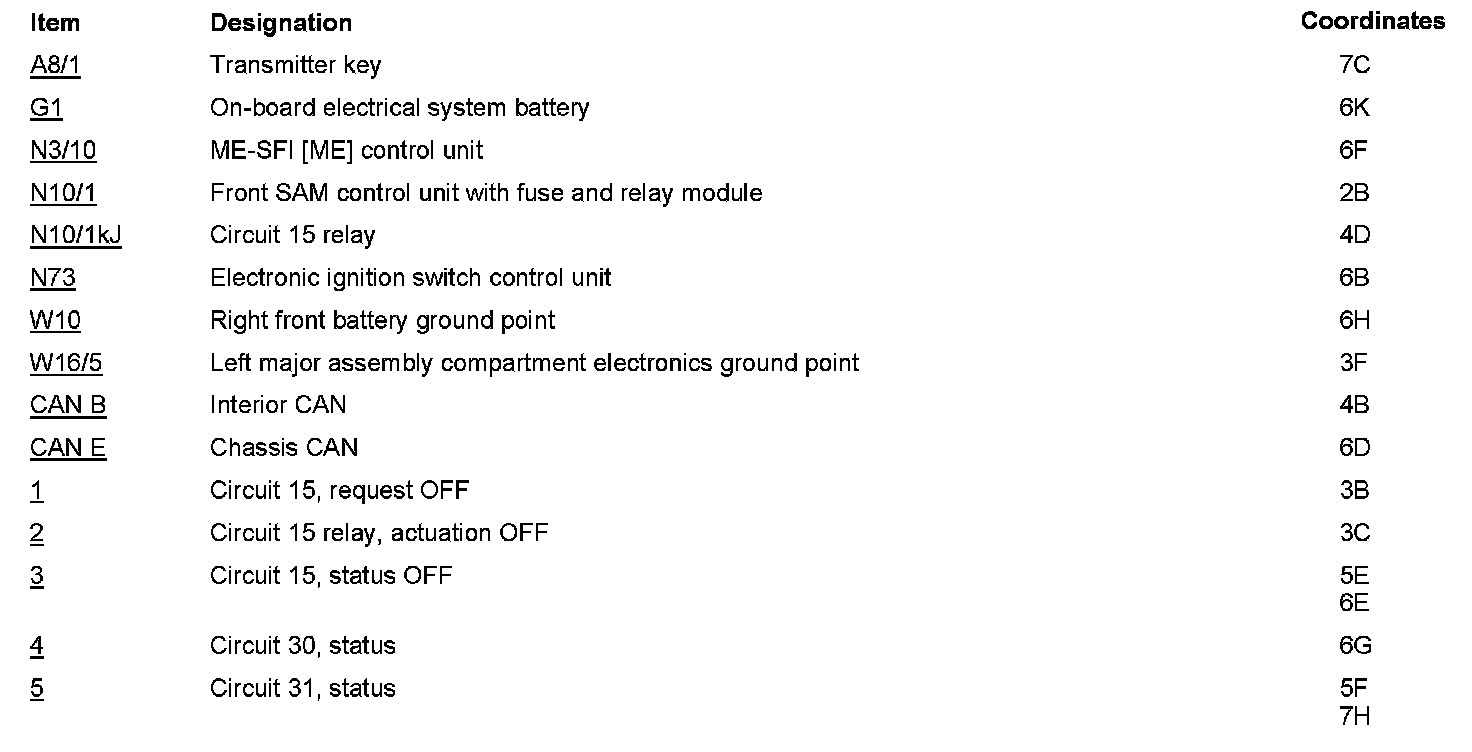

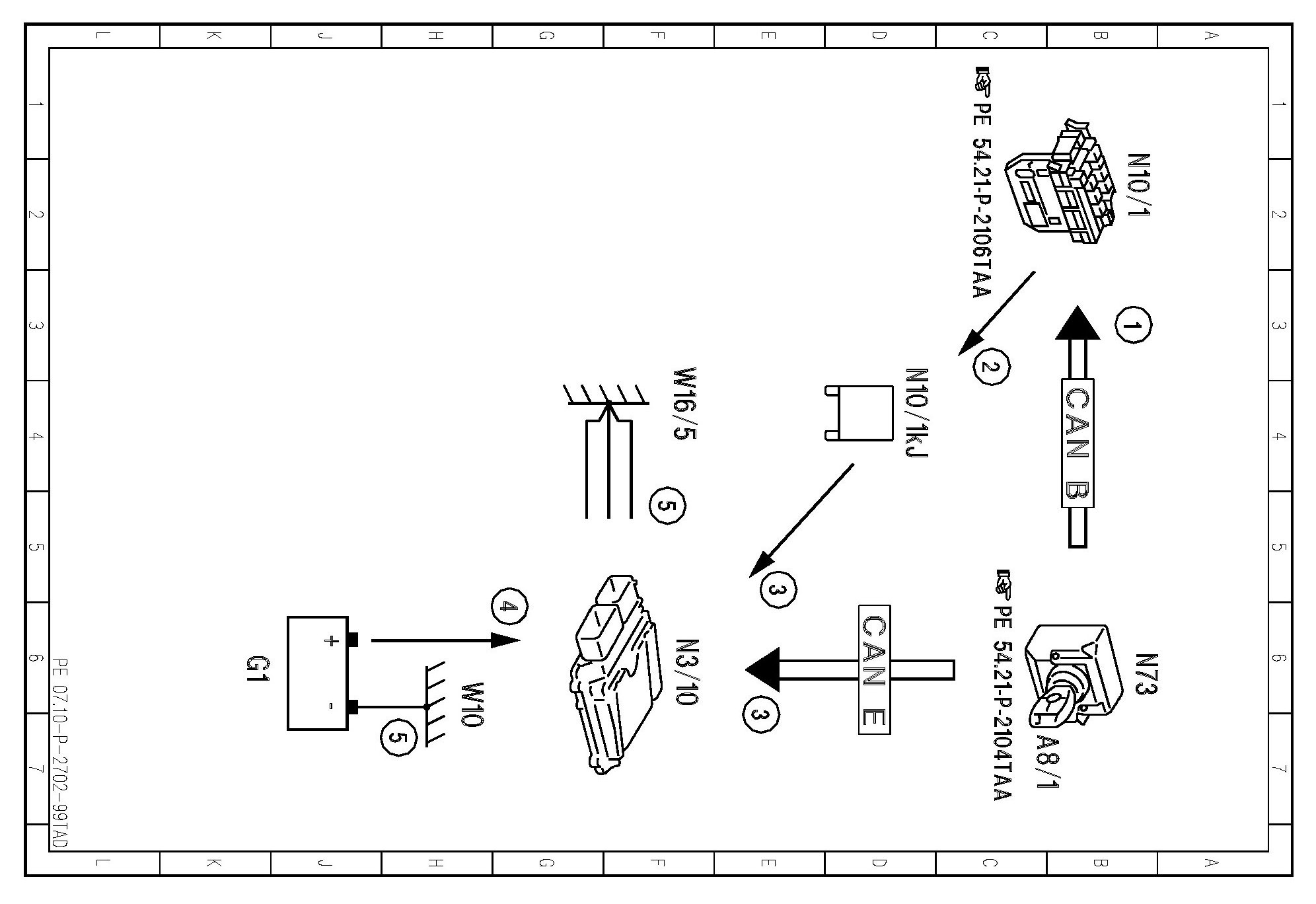

PE07.10-P-2702TAD Electrical Function Diagram For Ignition OFF

PE07.10-P-2702TAD Electrical Function Diagram For Ignition OFF

ENGINES 276 in MODEL 172

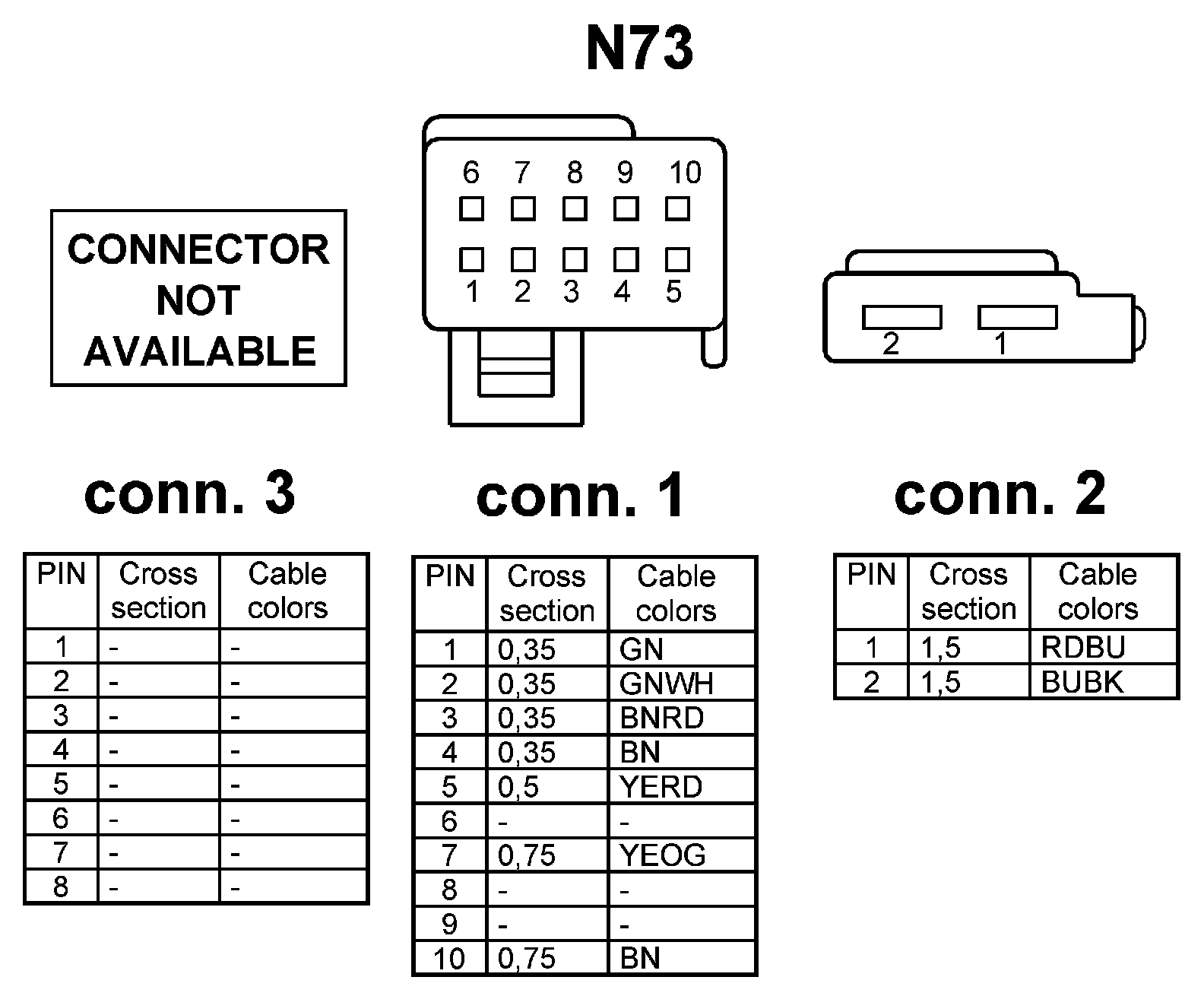

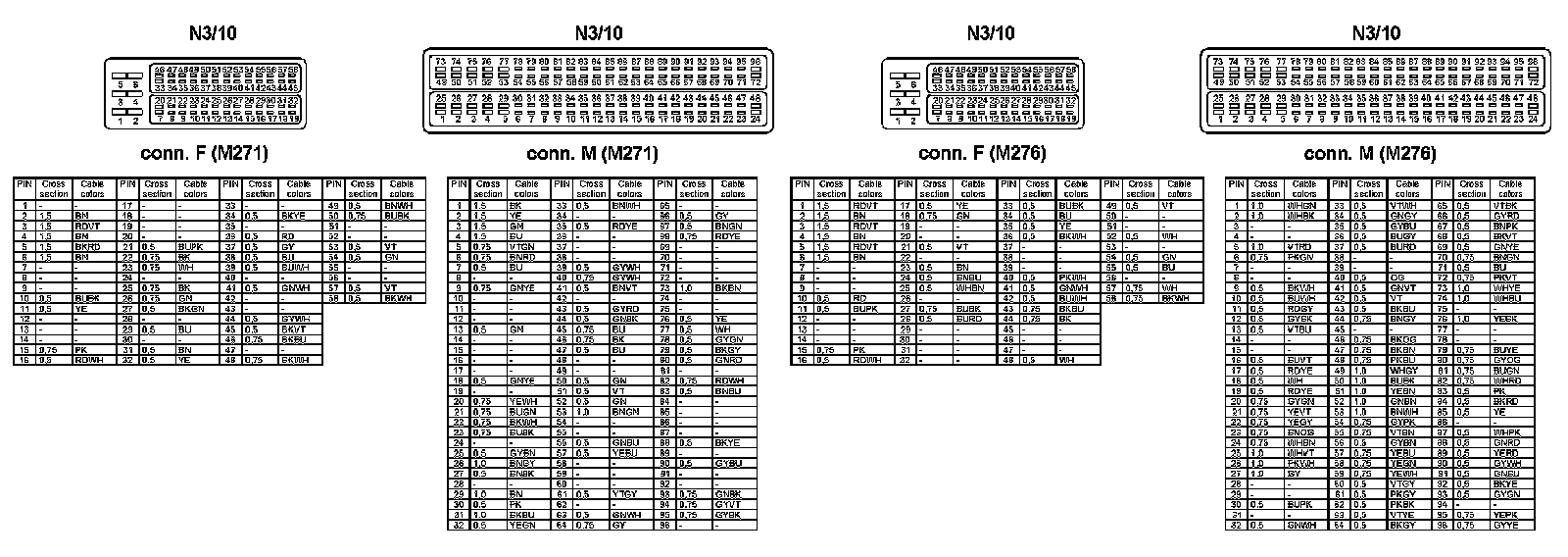

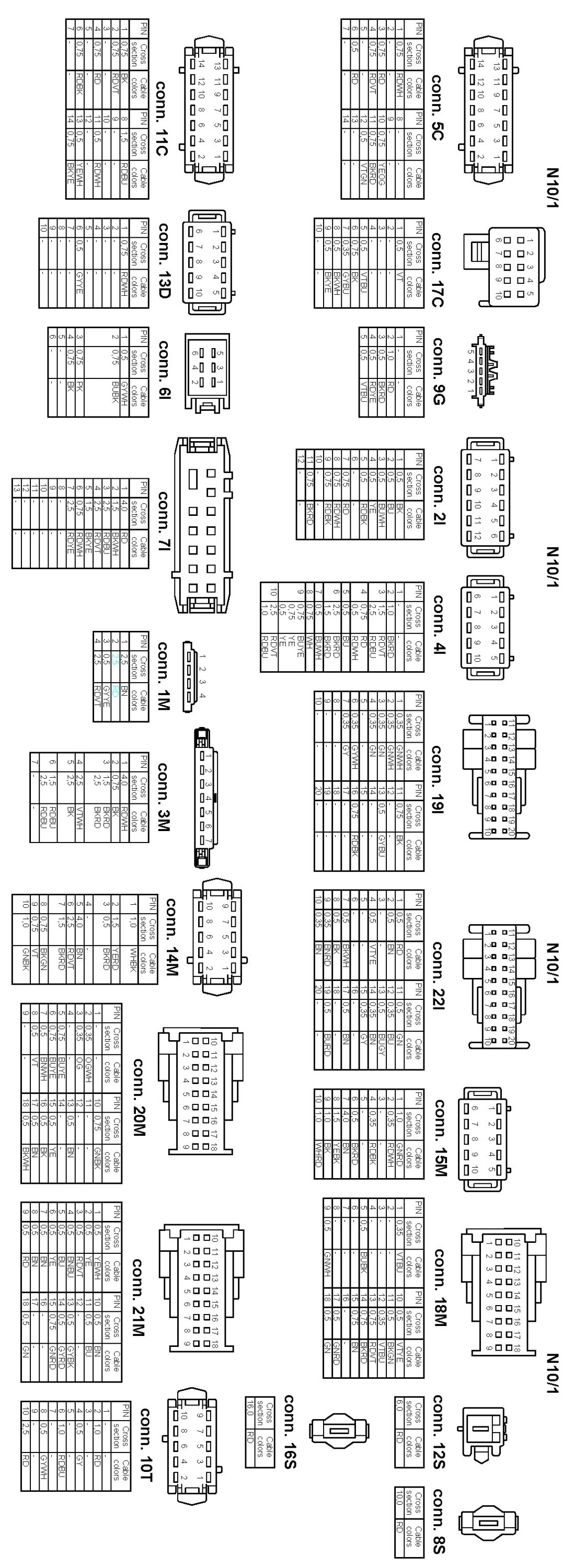

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
