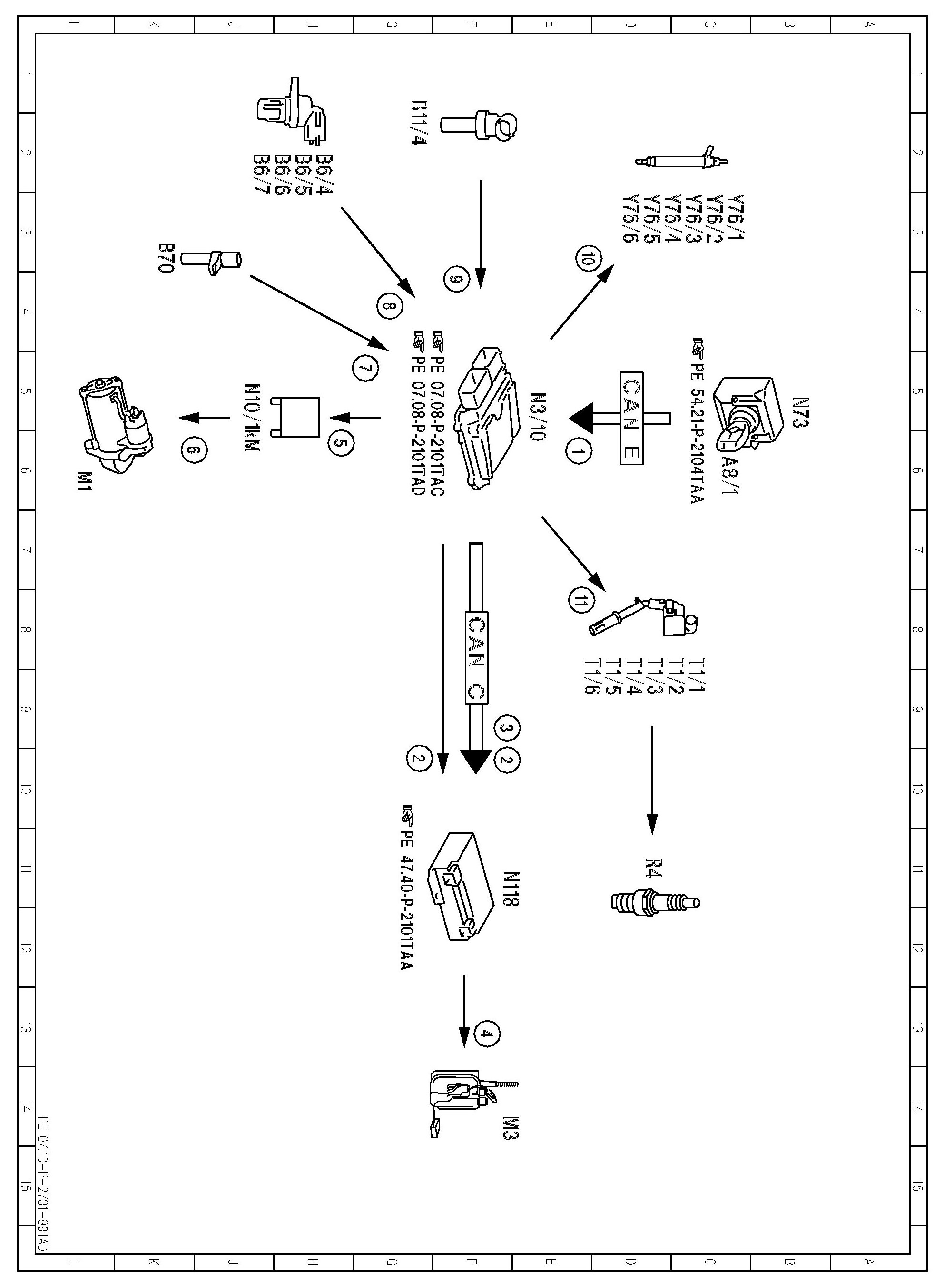

PE07.10-P-2701TAD Electrical Function Schematic For Starting

PE07.10-P-2701TAD Electrical Function Schematic For Starting

ENGINES 276 in MODEL 172

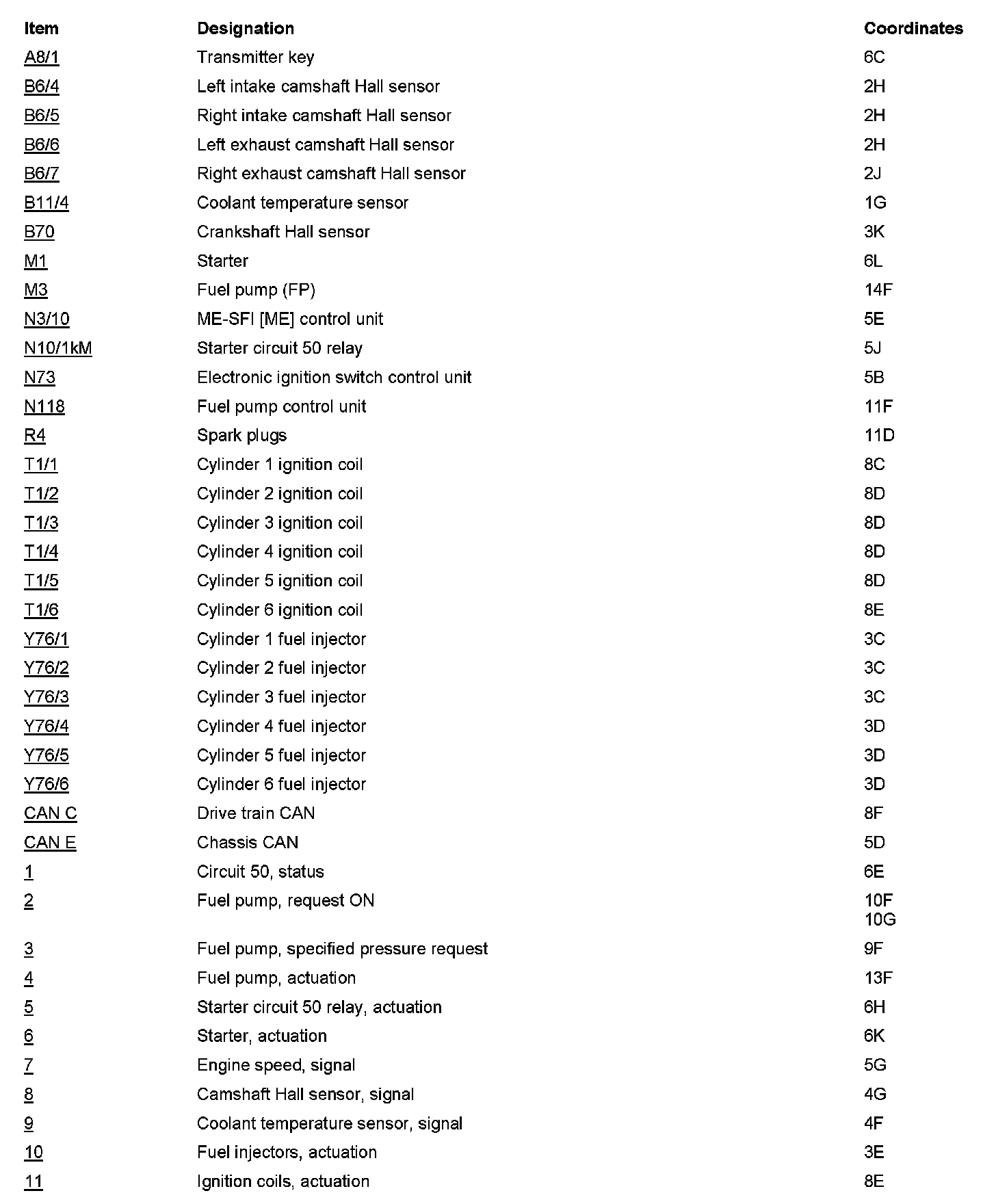

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
