Camshaft Position Sensor: Service and Repair

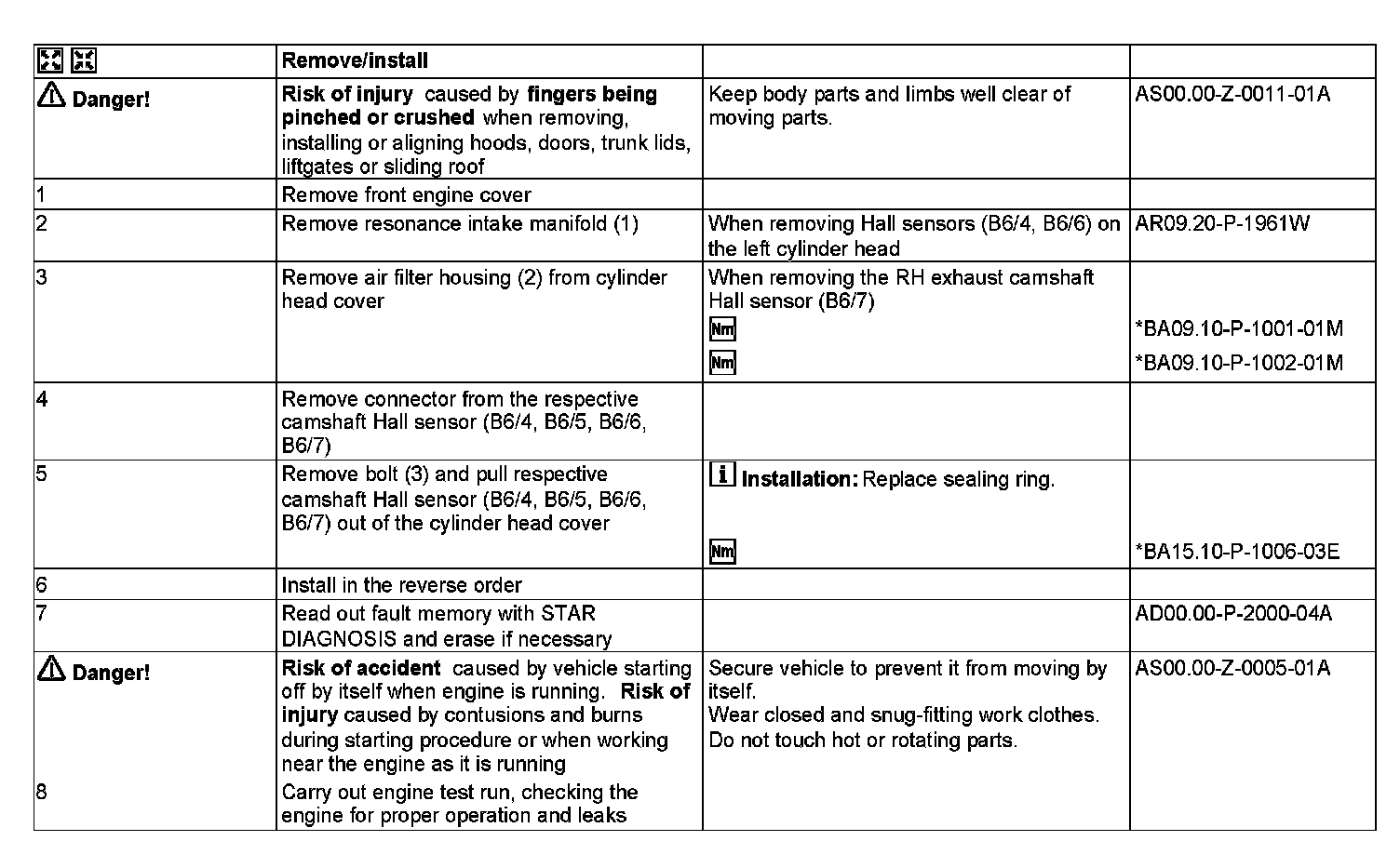

AR15.10-P-2000W Remove/Install Camshaft Hall Sensor
ENGINES 276 in MODEL 172





1 Resonance intake manifold
2 Air cleaner housing
3 Bolt
B6/4 Left intake camshaft Hall sensor
B6/5 Right intake camshaft Hall sensor
B6/6 Left exhaust camshaft Hall sensor
B6/7 Right exhaust camshaft Hall sensor
