Oil Filter: Service and Repair

AP18.00-P-0101-06V Replace oil filter element, drain oil filter

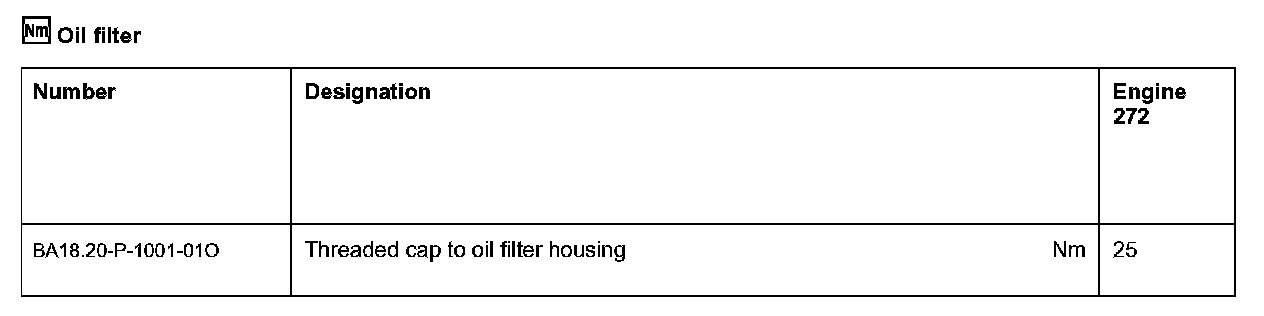

Oil filter:

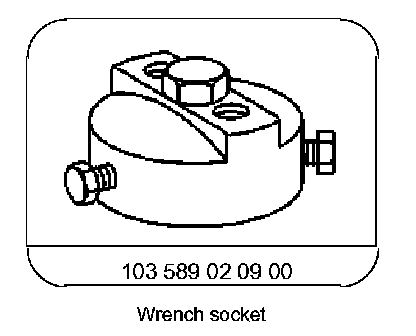

Special Tools:

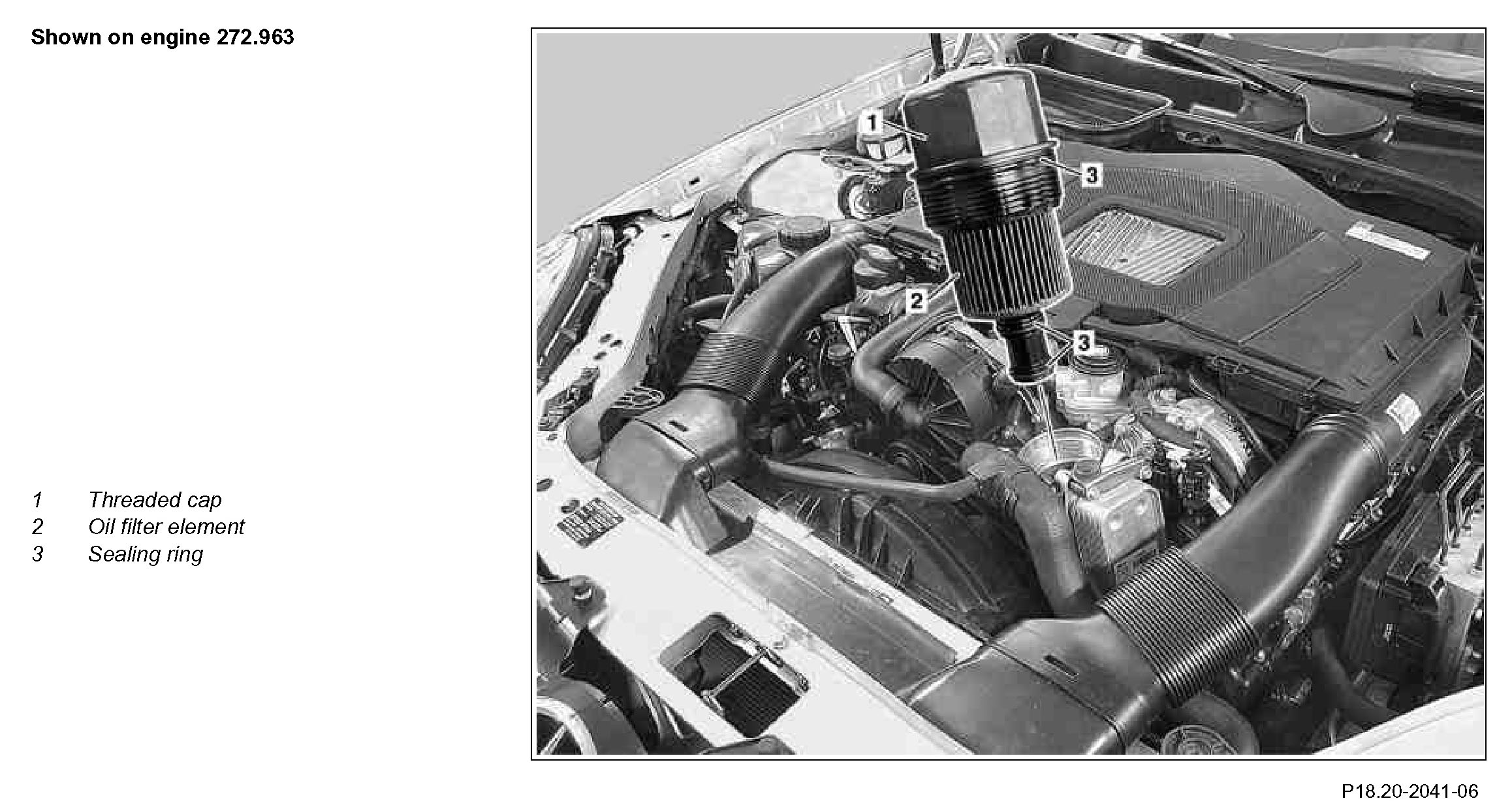

Component Identification:

Shown on engine 272.963
1 Remove front engine cover.
2 Remove screw cap (1) using socket and remove.

Use a drain pan to catch the dripping oil.

3 Remove oil filter element (2) from screw cap (1).
4 Replace sealing rings (3).
5 Push new oil filter element (2) onto screw cap (1).
6 Screw screw-cap (1) into oil filter housing and tighten.
7 Mount front engine cover after engine test run and leak tightness test.
