AR49.10-P-7100W Remove/Install Components For Exhaust System

AR49.10-P-7100W Remove/Install Components For Exhaust System
ENGINES 276 in MODEL 172





Shown on exhaust system with code (920) Gasoline direct injection with stratified charge

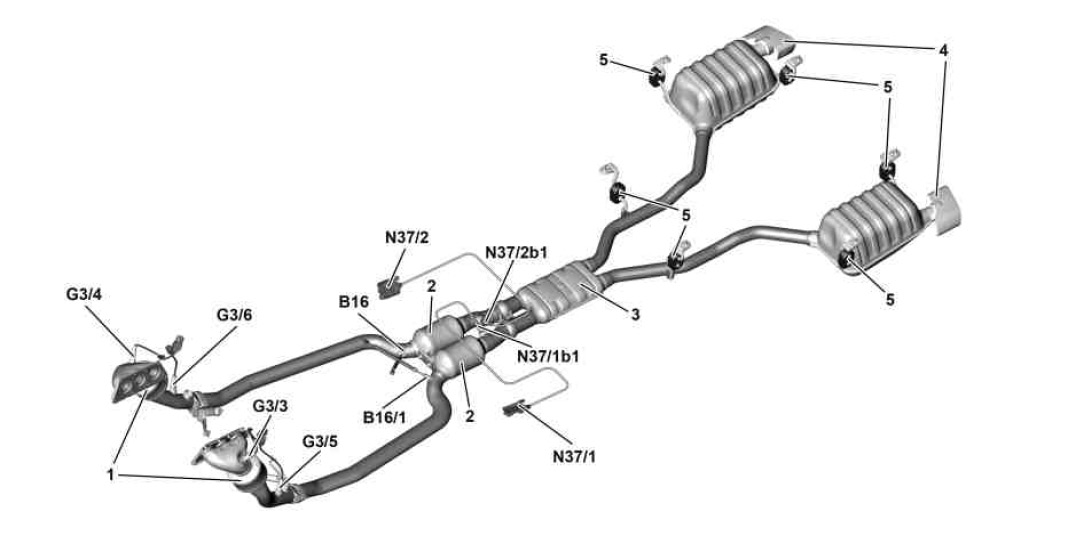

1 Exhaust manifold with catalytic converter
2 NOx storage catalytic converter
3 Center muffler
4 Exhaust tip
5 Exhaust rubber mount

B16 Temperature sensor upstream of NOx storage catalytic converter, right
B16/1 Temperature sensor upstream of NOx storage catalytic converter, left
G3/3 Left oxygen sensor upstream of catalytic converter
G3/4 Right oxygen sensor upstream of catalytic converter
G3/5 Left oxygen sensor downstream of catalytic converter
G3/6 Right oxygen sensor downstream of catalytic converter
N37/1 Left NOx sensor control unit
N37/1b1 Left NOx sensor
N37/2 Right NOx sensor control unit
N37/2b1 Right NOx sensor
