AR01.40-P-8000W Remove/Install Timing Case Cover

AR01.40-P-8000W Remove/Install Timing Case Cover
ENGINES 276 in MODEL 172

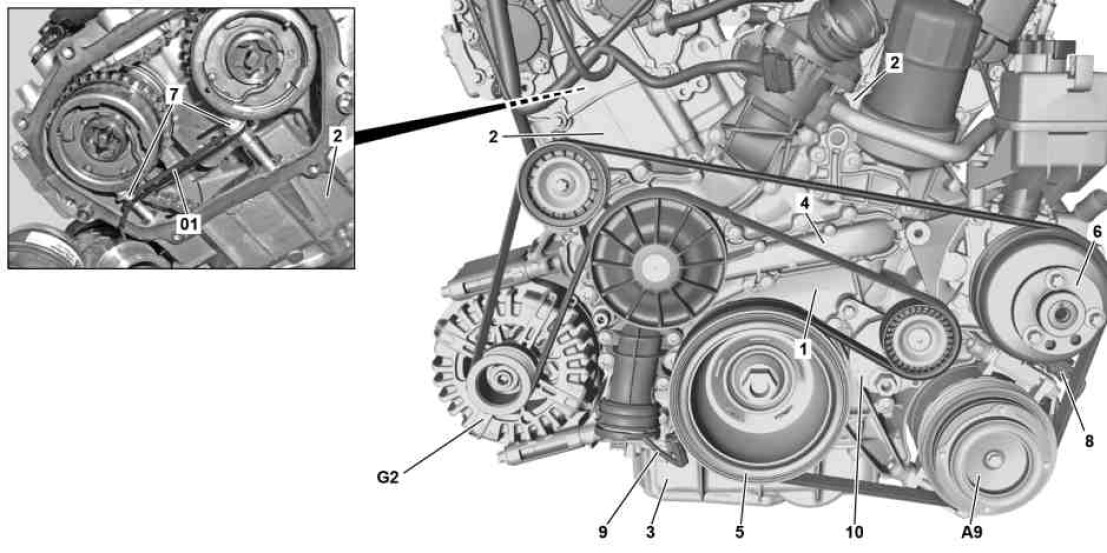

01 Cable tie
1 Timing case cover
2 Cylinder head
3 Oil pan
4 Coolant pump
5 Belt pulley/vibration damper
6 Power steering pump
7 Screw/bolts
8 Electrical line
9 Electrical line
10 Tensioning device

A9 A/C compressor
G2 Alternator

















112 589 00 25 00
Squeeze gun
