Alternator: Service and Repair



AR15.40-P-5032RMG Remove/install alternator

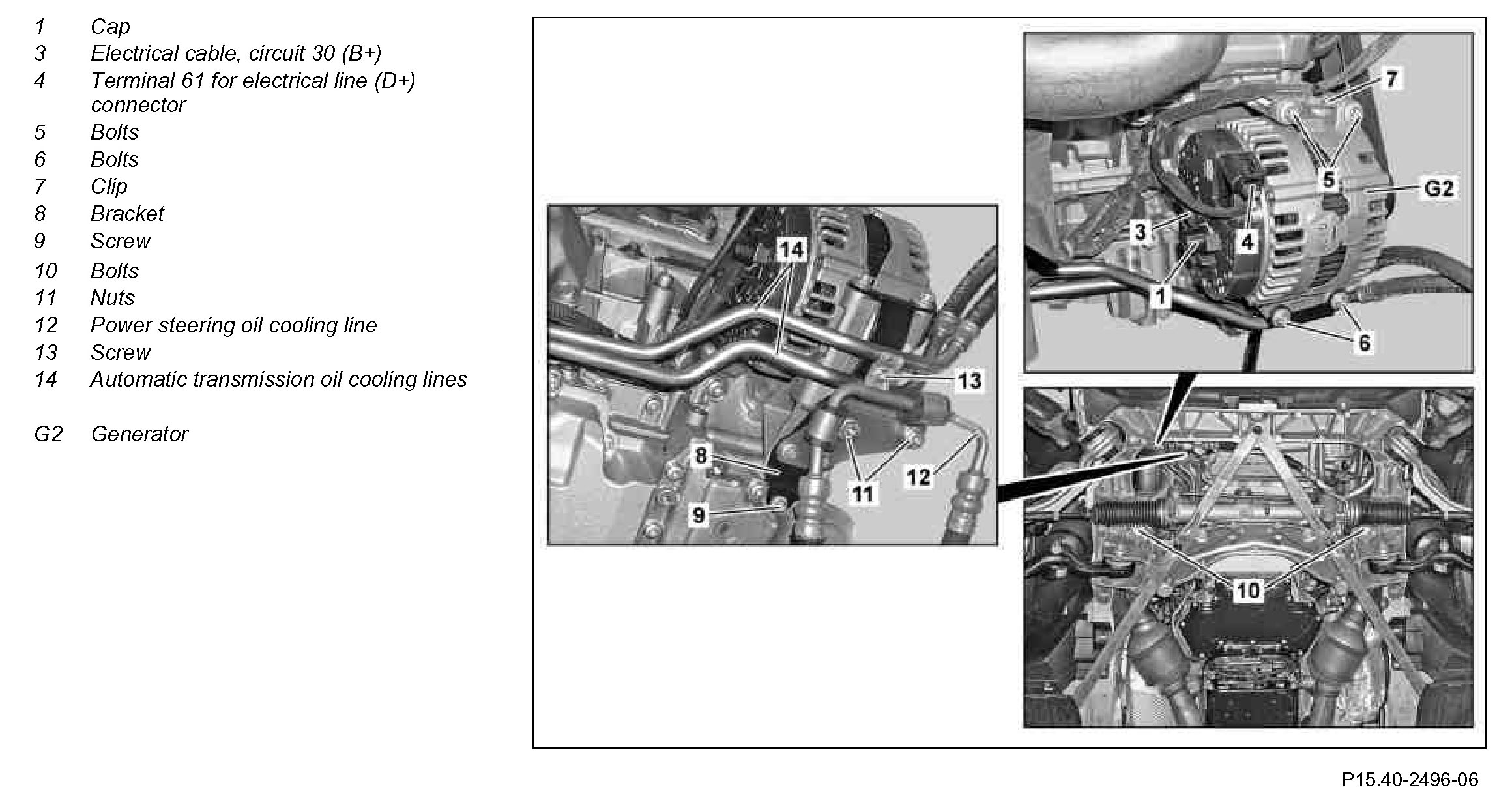

Component Identification:

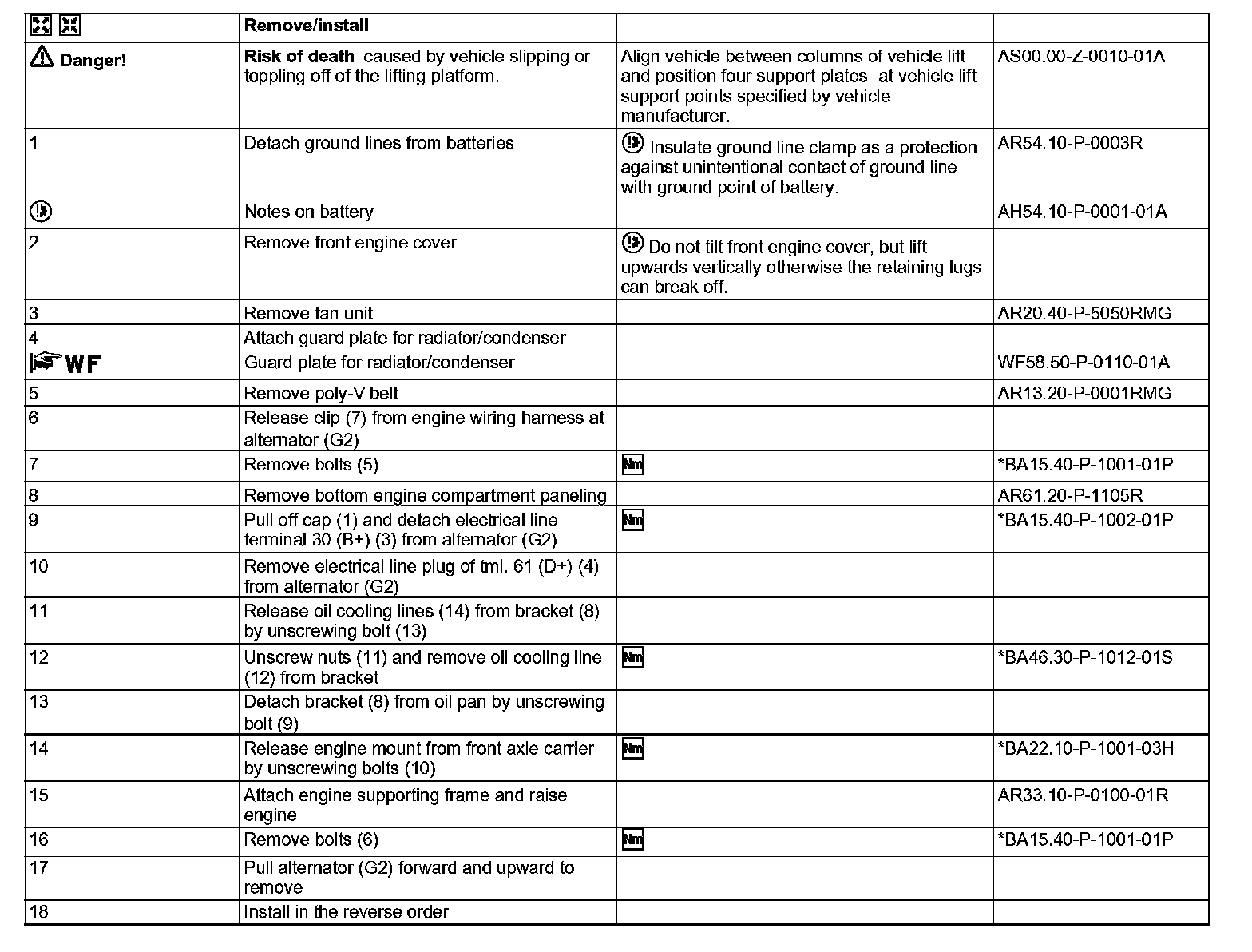

Steps 1-18:

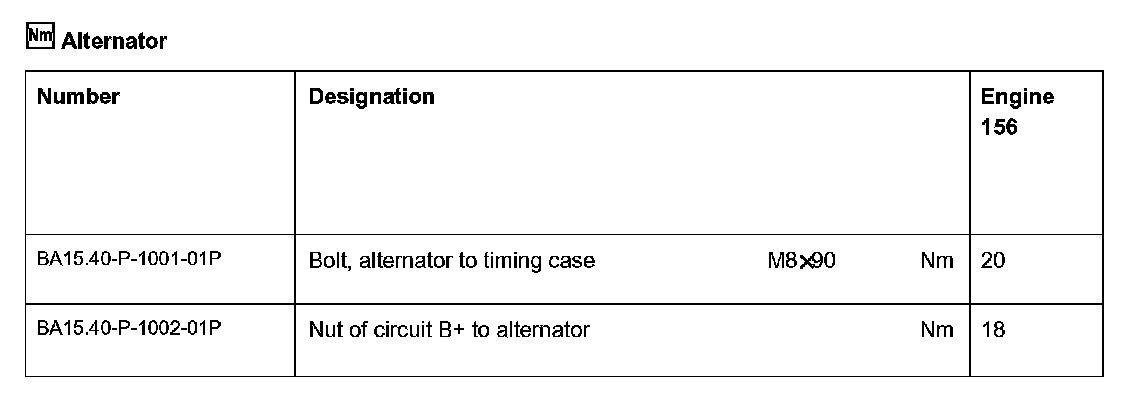

Alternator:

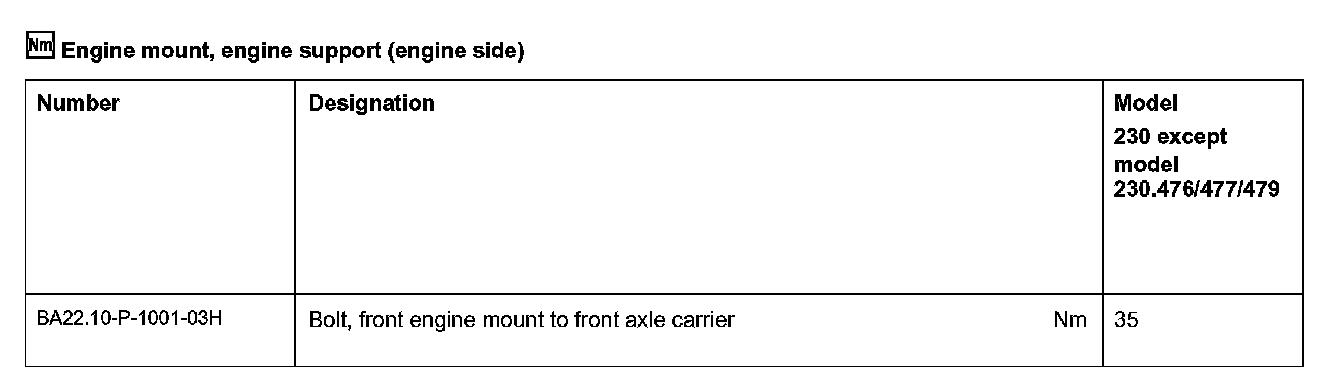

Engine mount, engine support (engine side):

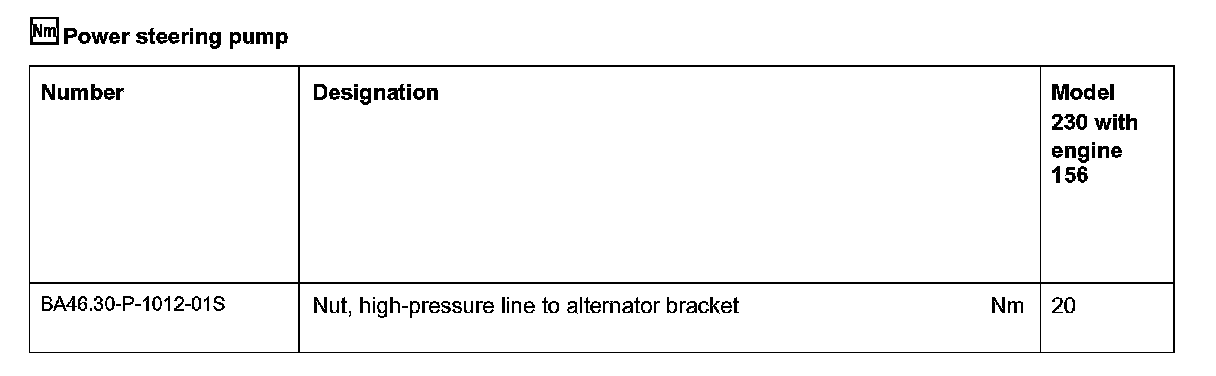

Power steering pump:
