Air Diverter Valve: Service and Repair
AR14.30-P-7200RMG Remove/install air shutoff valve

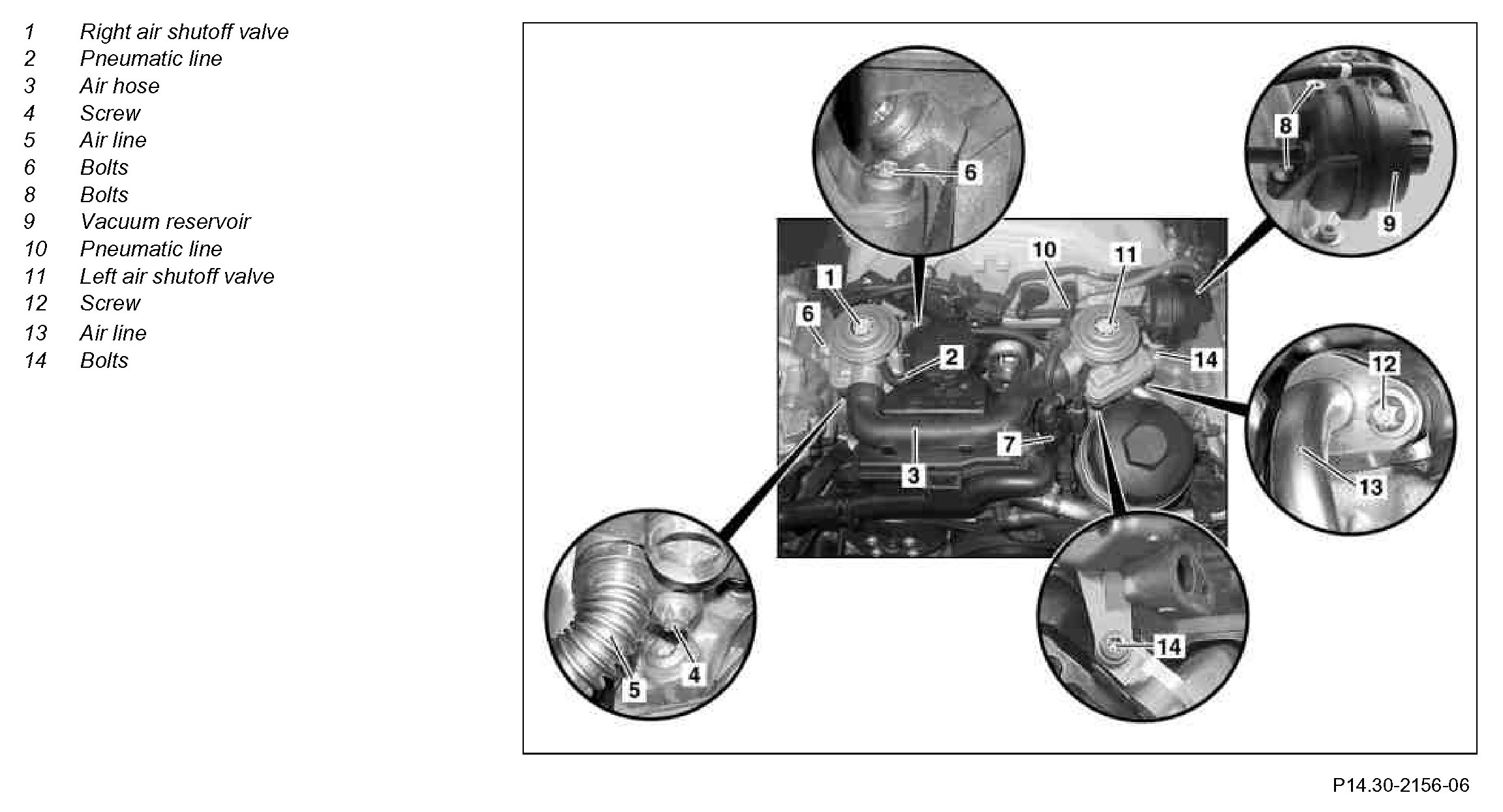

Component Identification:

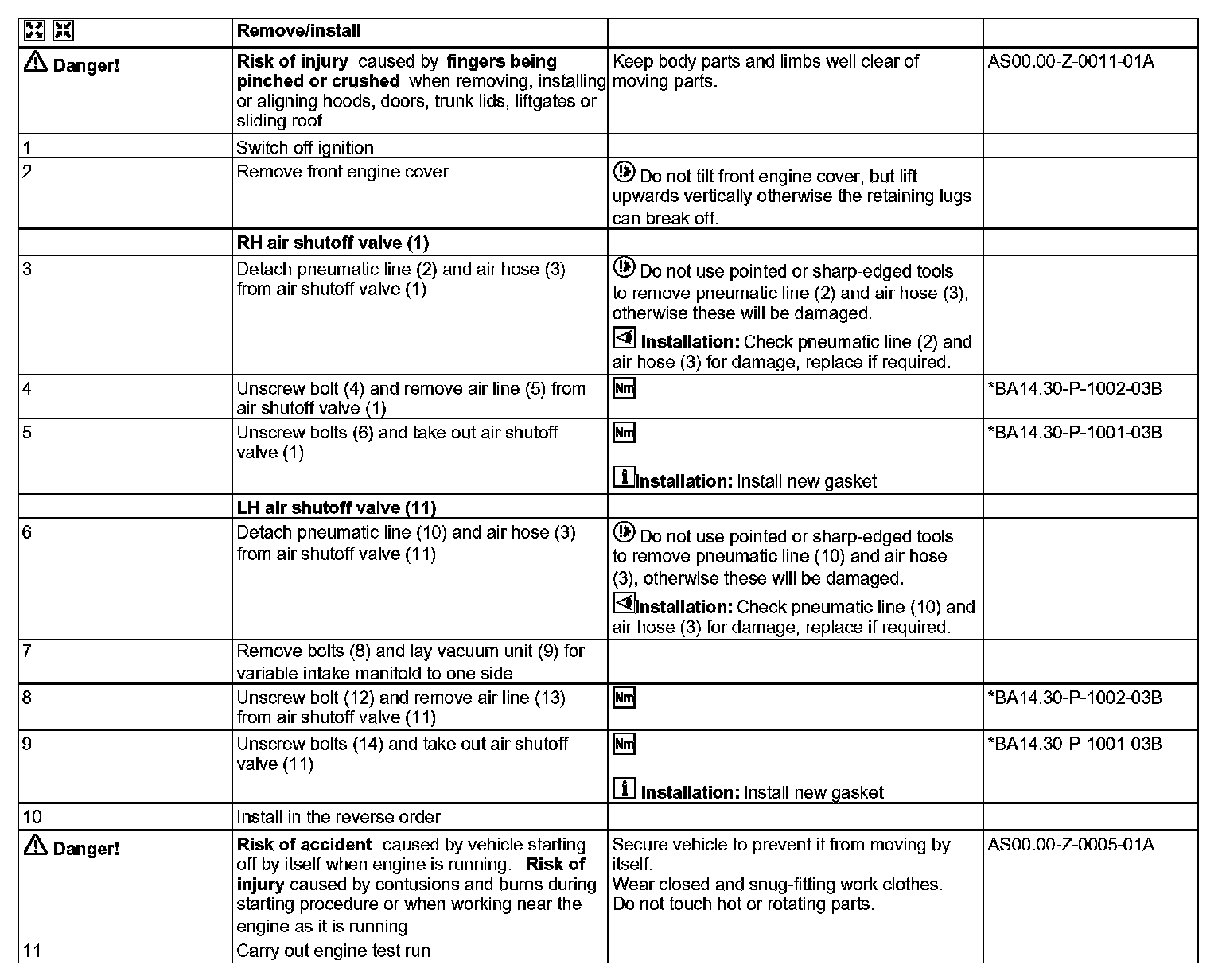

Steps 1-11:

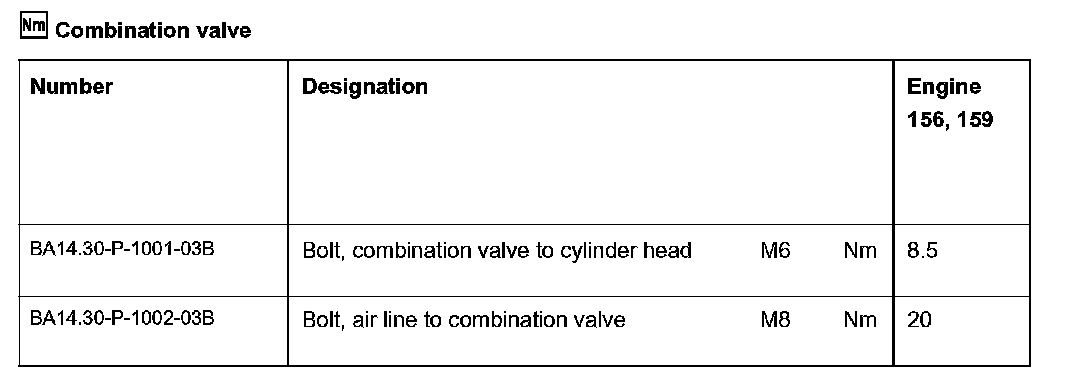

Combination valve:
