PE07.61-P-2101KT ME-SFI Fuel Injection and Ignition System Control Module, Wiring Diagram

PE07.61-P-2101KT ME-SFI Fuel Injection and Ignition System Control Module, Wiring Diagram

Engine 156 in Model 230
- as of model year 2010

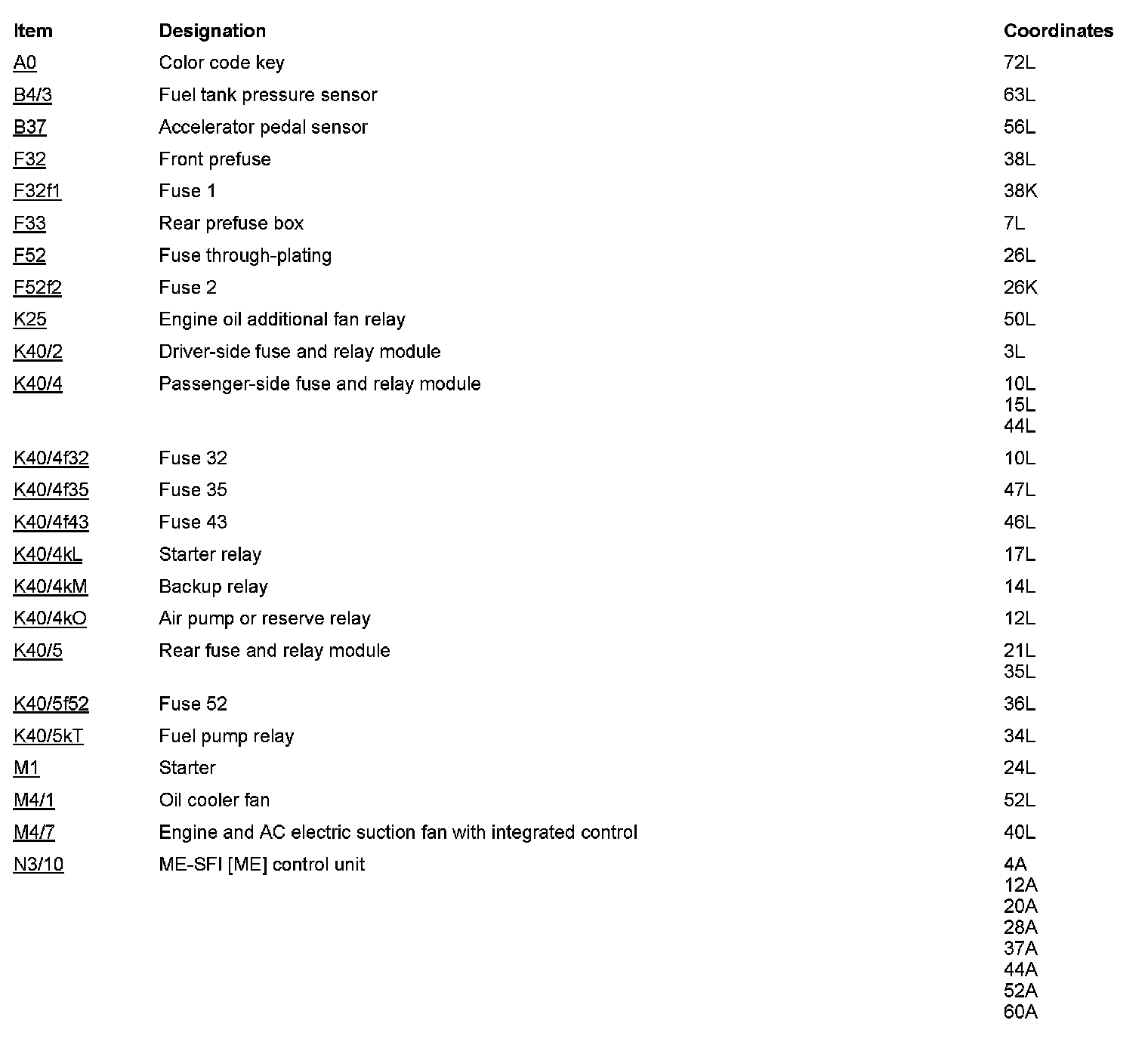

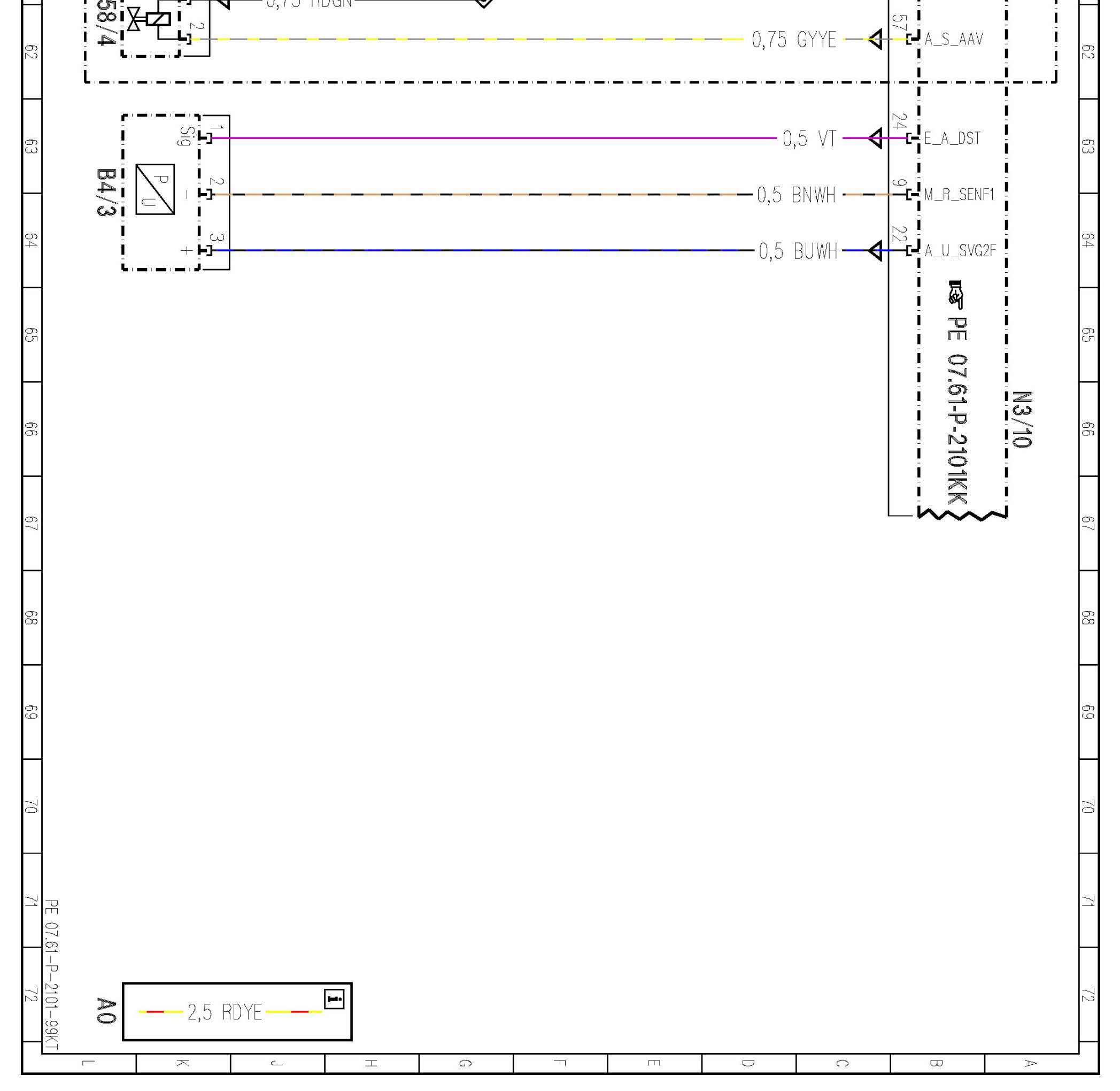

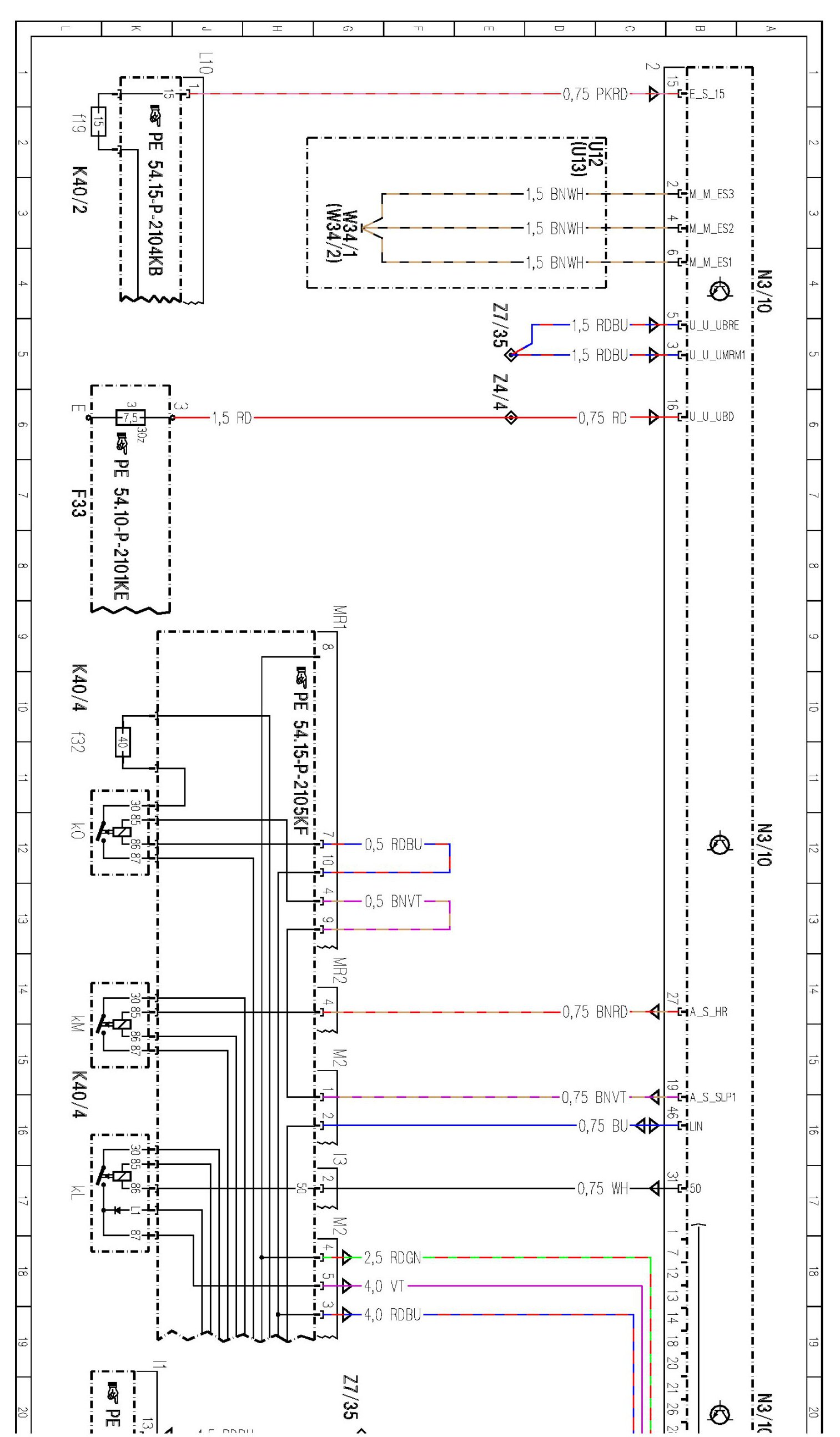

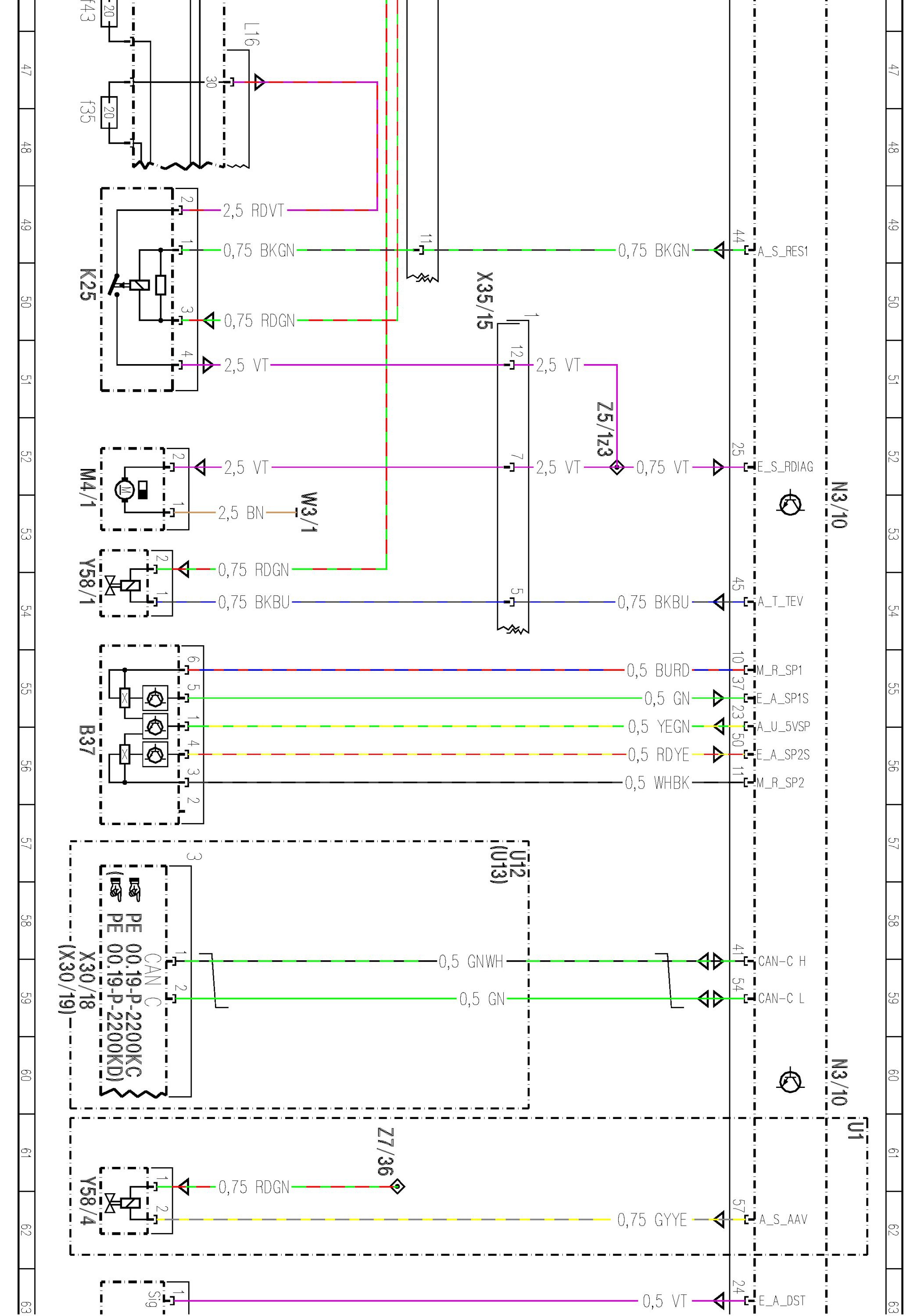

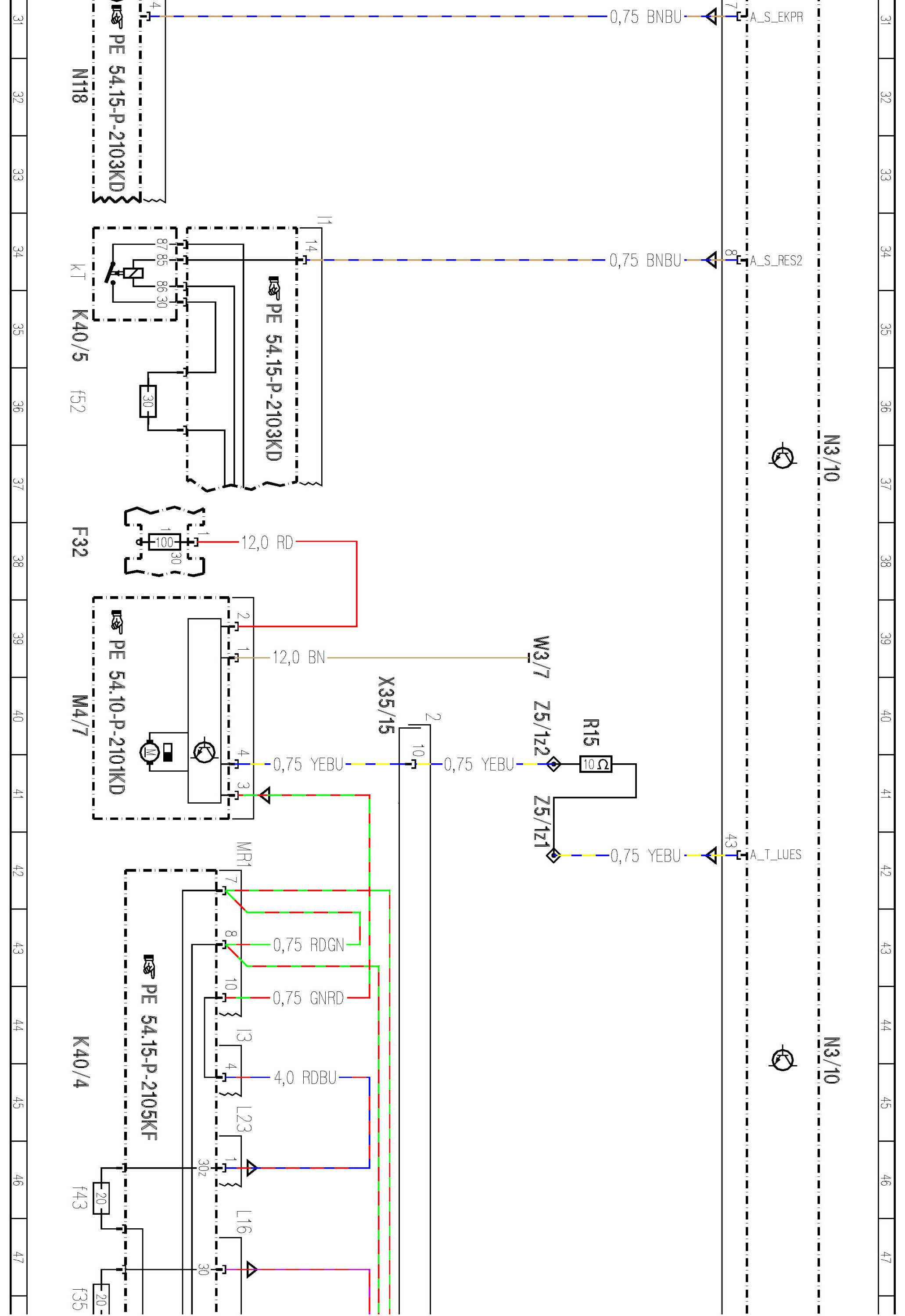

- Control unit N3/10, Sheet 1, Vehicle side






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
