PE07.61-P-2101KK ME-SFI Fuel Injection and Ignition System Control Module, Wiring Diagram

PE07.61-P-2101KK ME-SFI Fuel Injection and Ignition System Control Module, Wiring Diagram

Engine 156 in Model 230

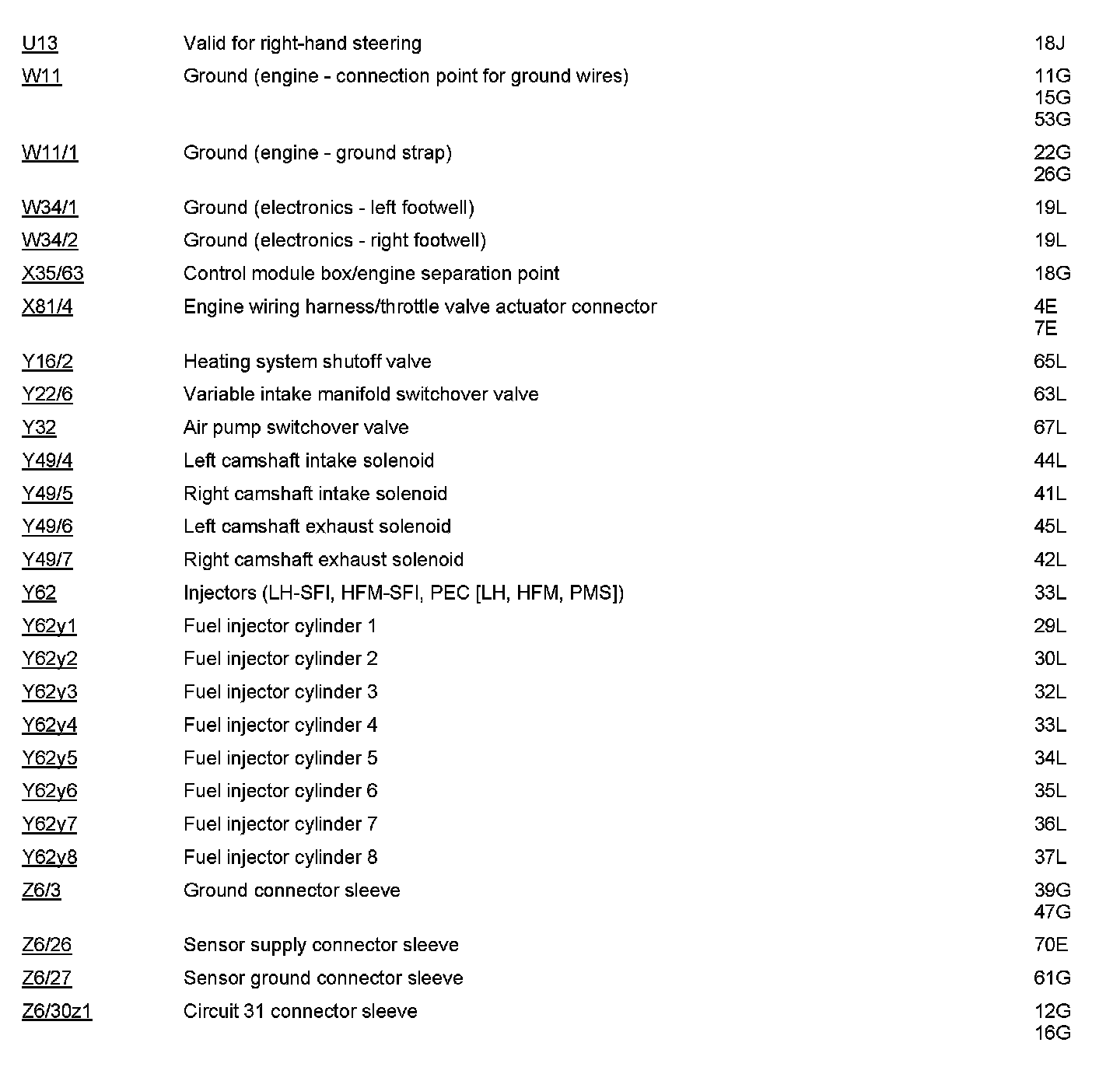

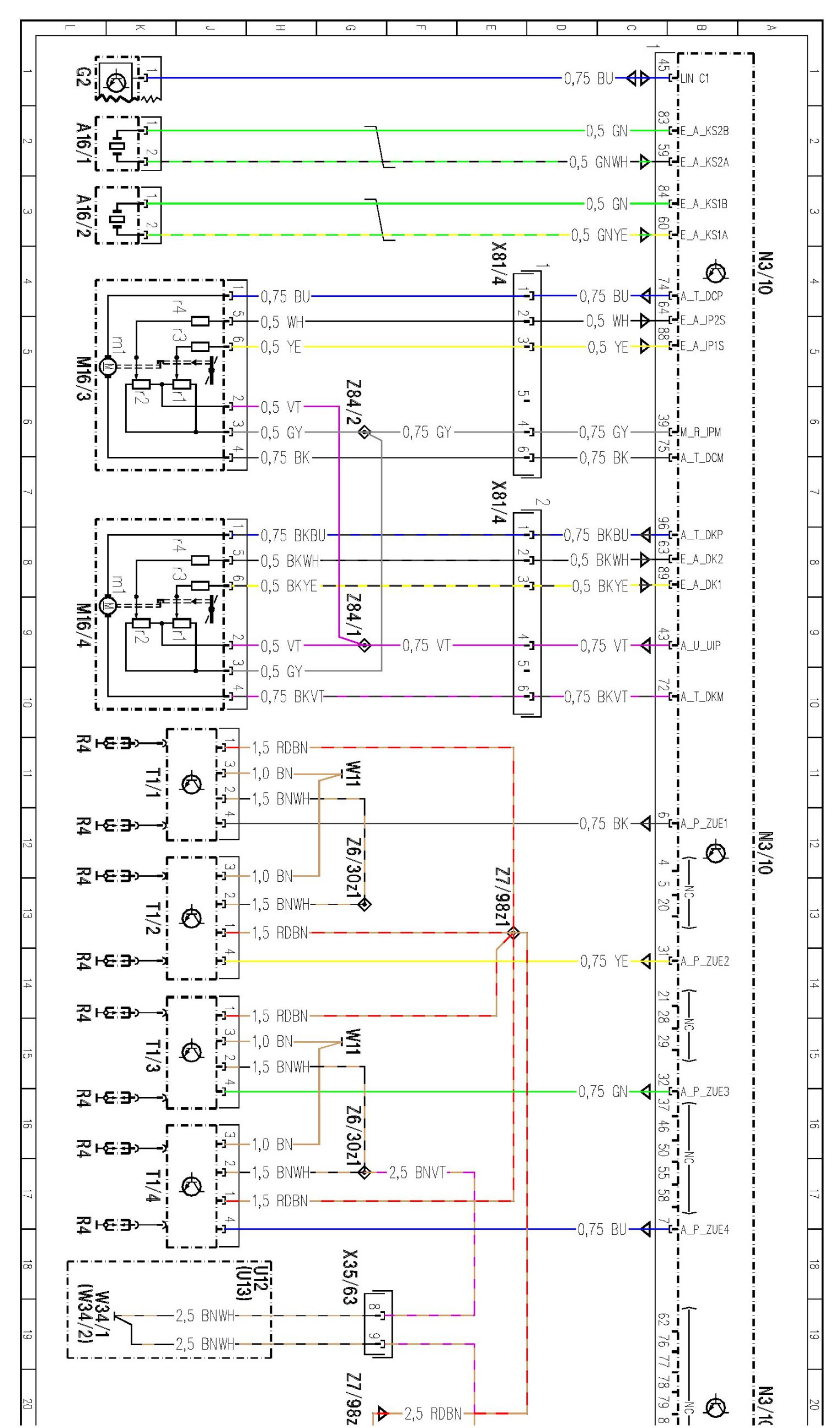

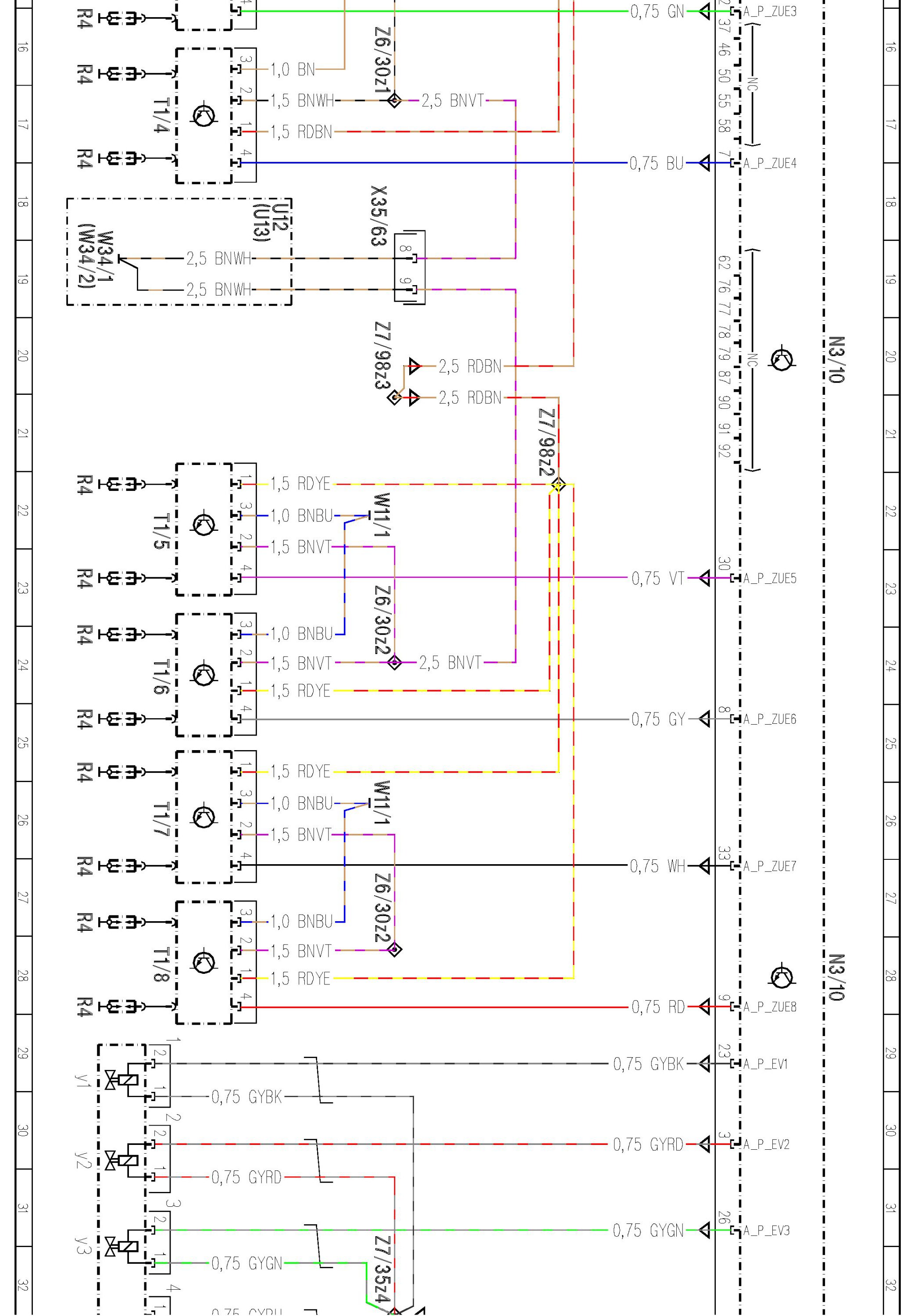

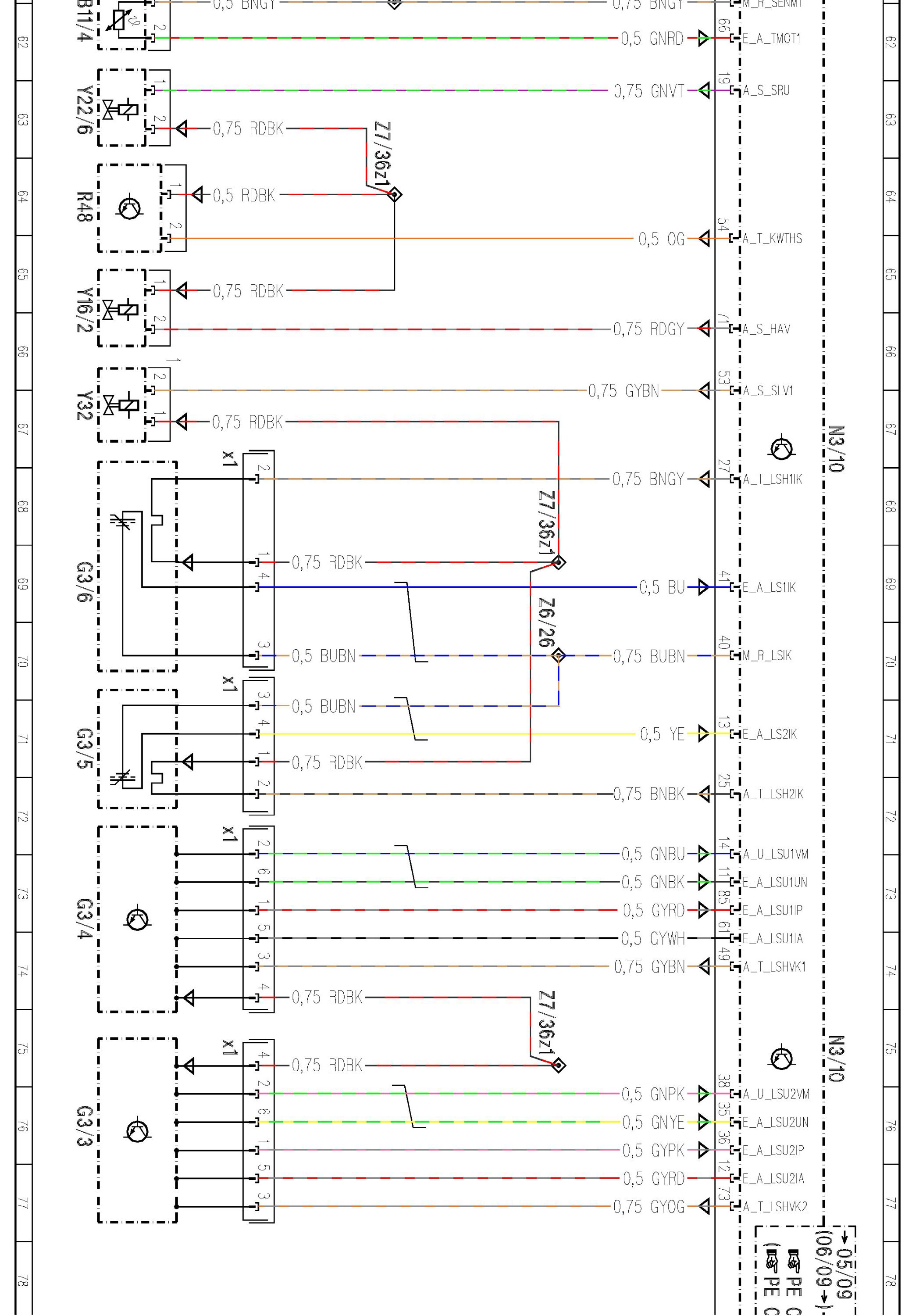

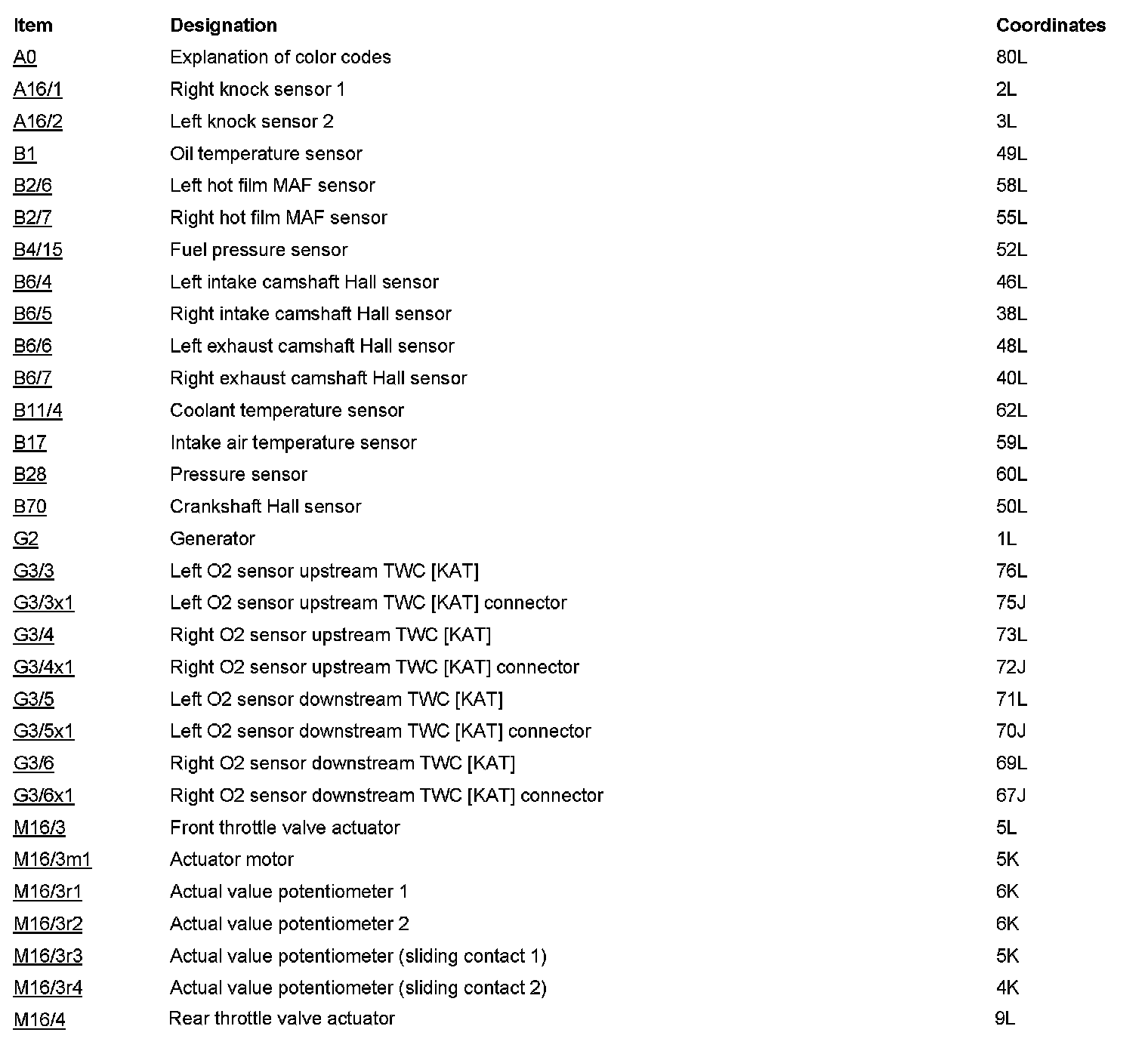

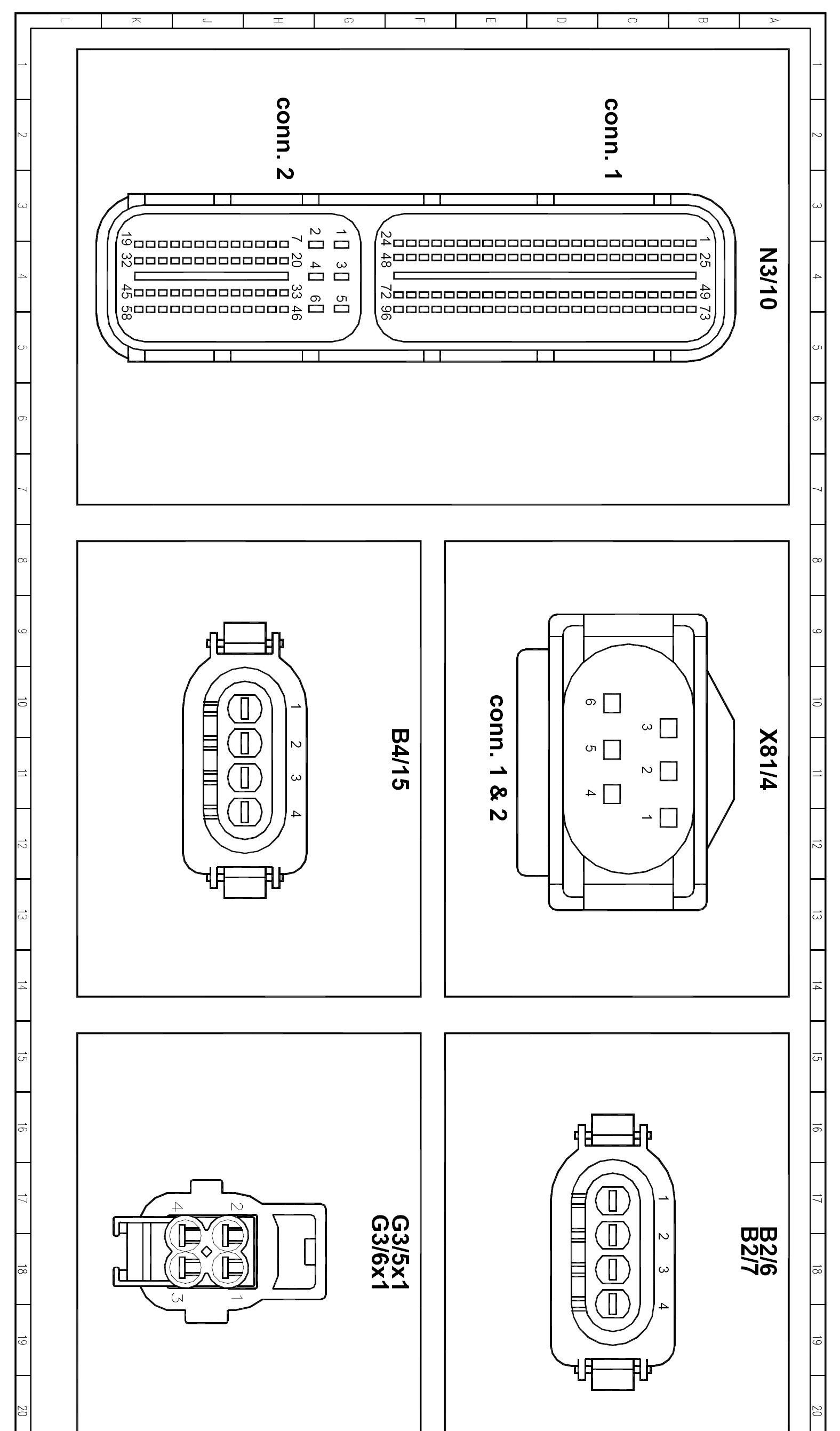

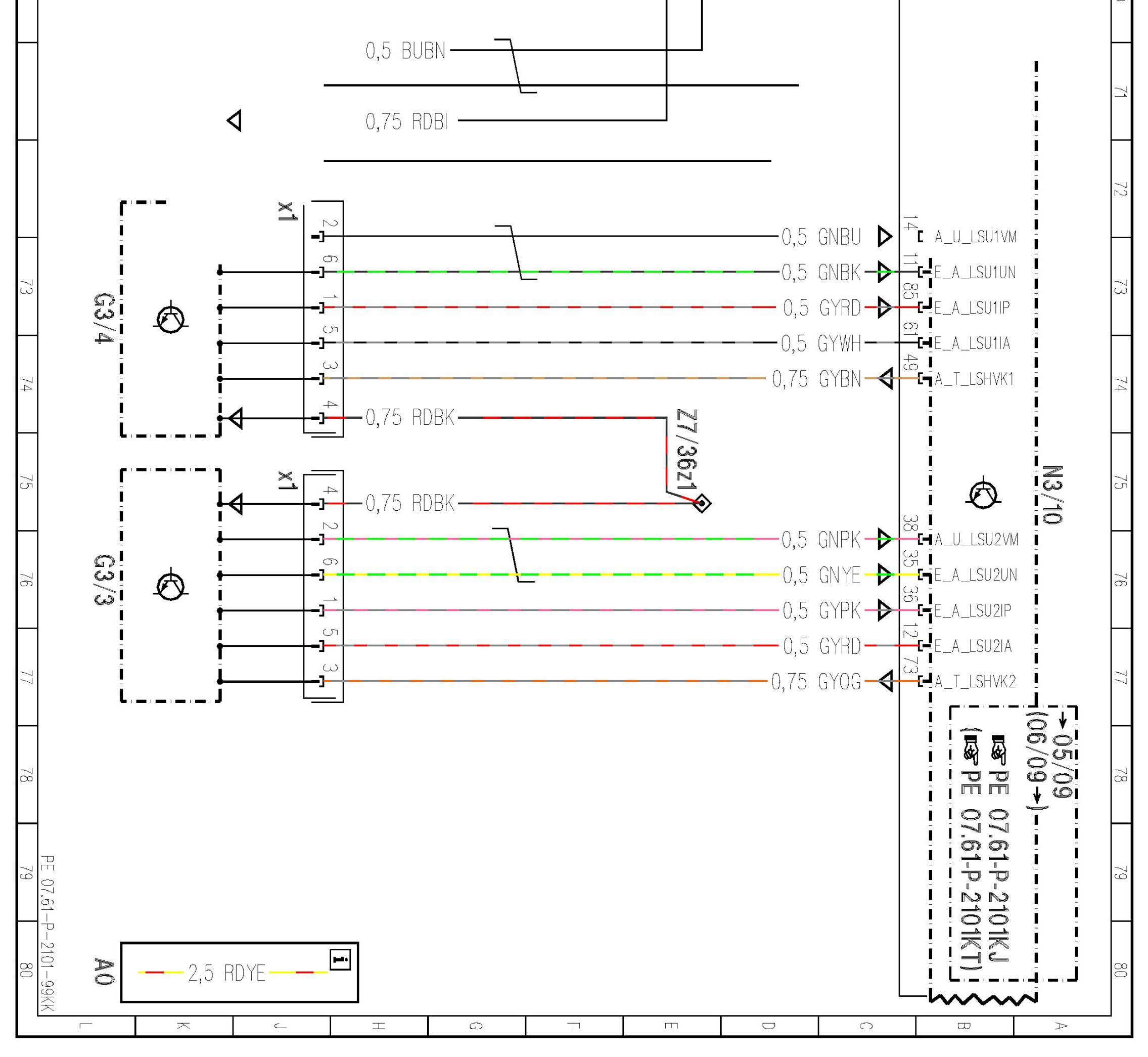

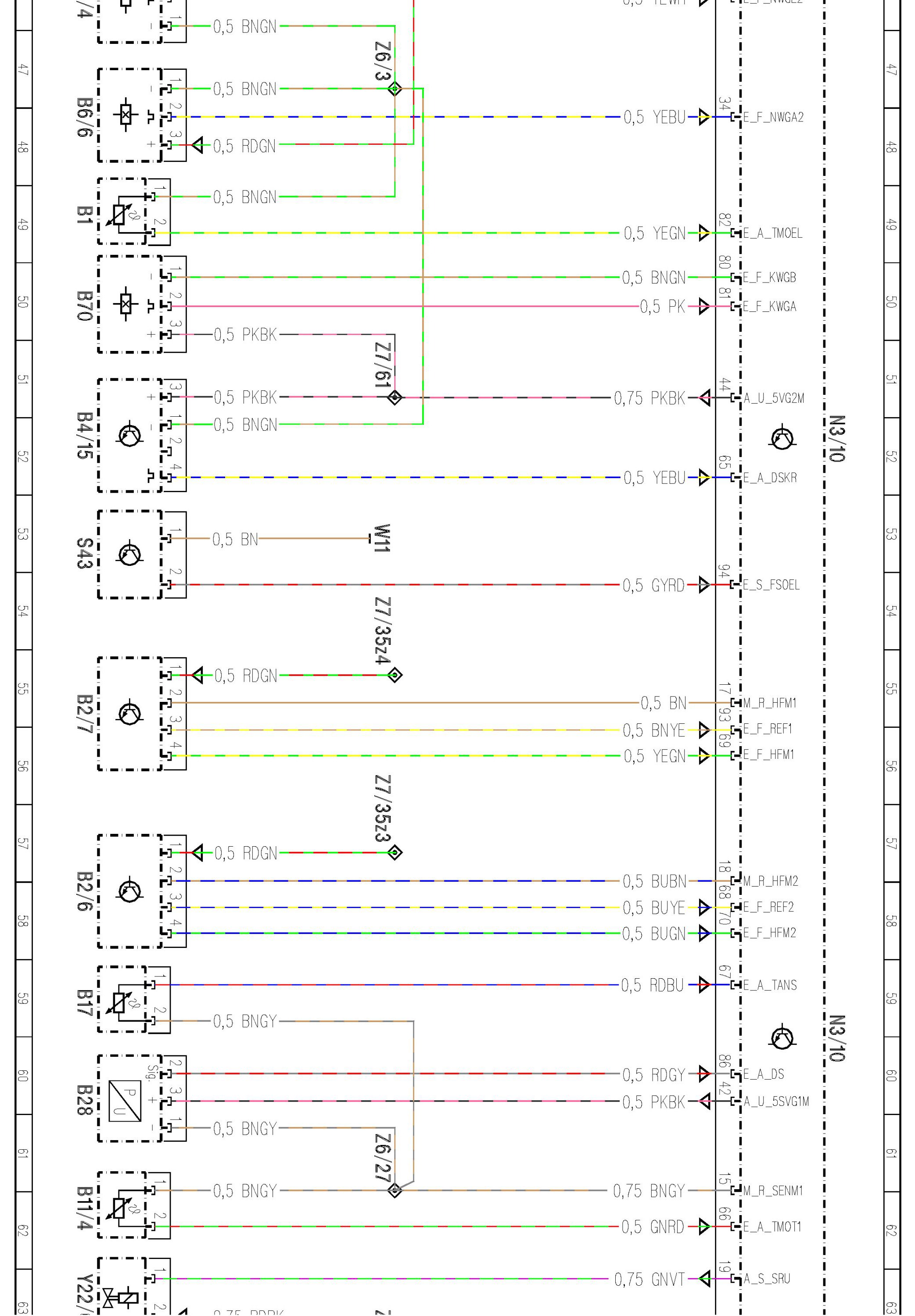

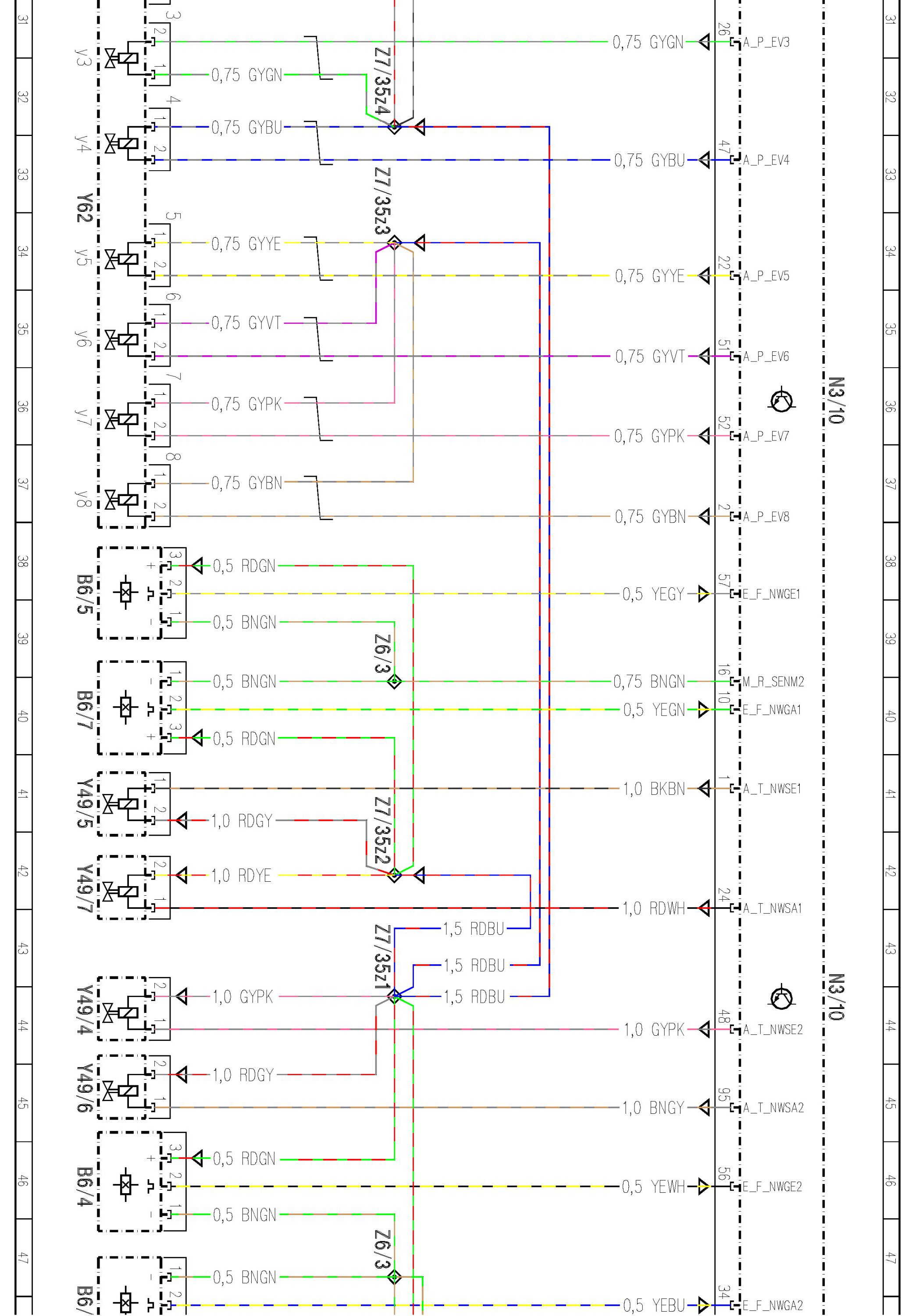

- Control unit N3/10, Sheet 2, Engine side


























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
