Oxygen Sensor: Service and Repair
AR07.52-P-5303RMG Remove/Install Heated O2 Sensor

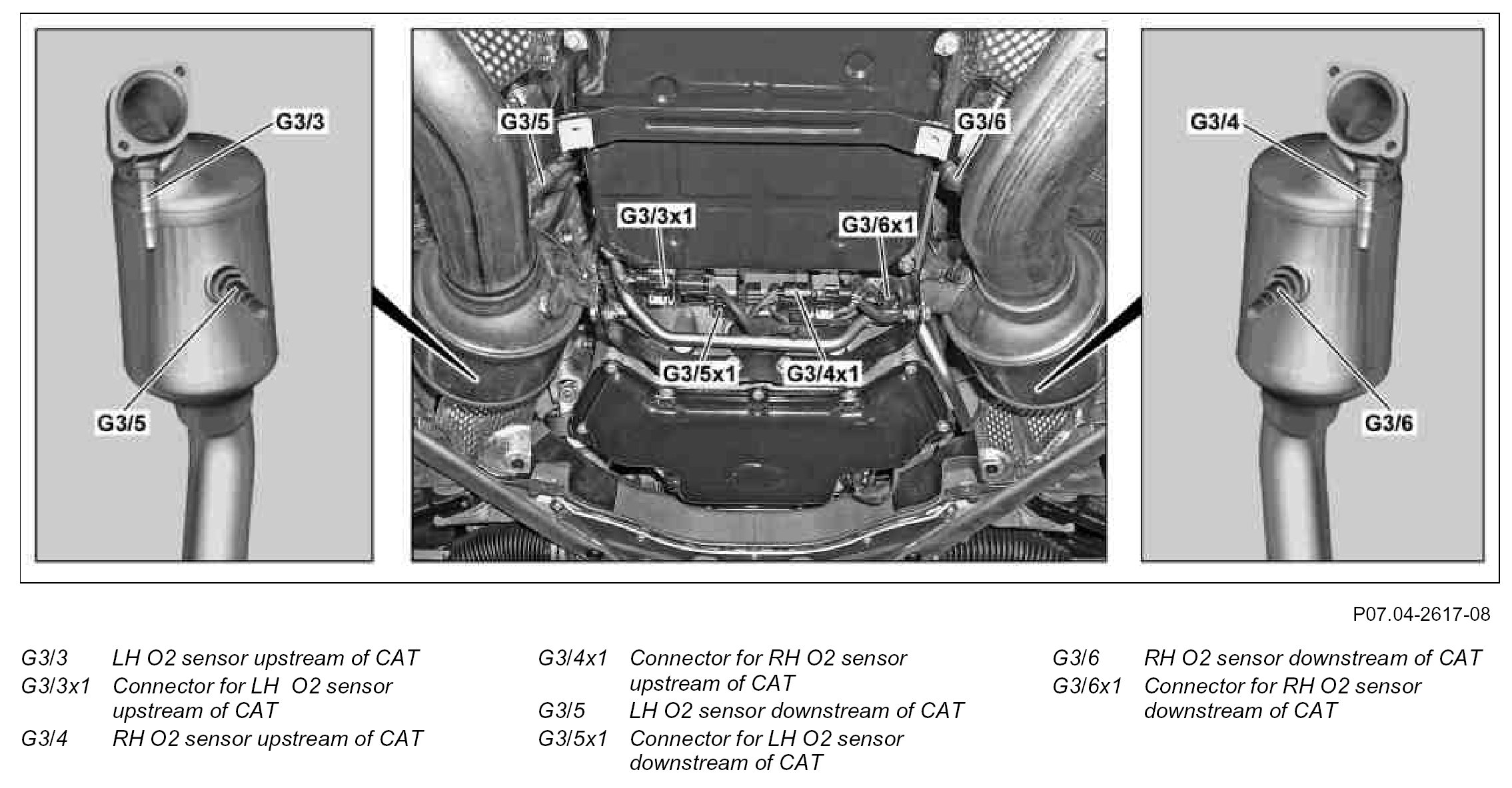

Component Identification:

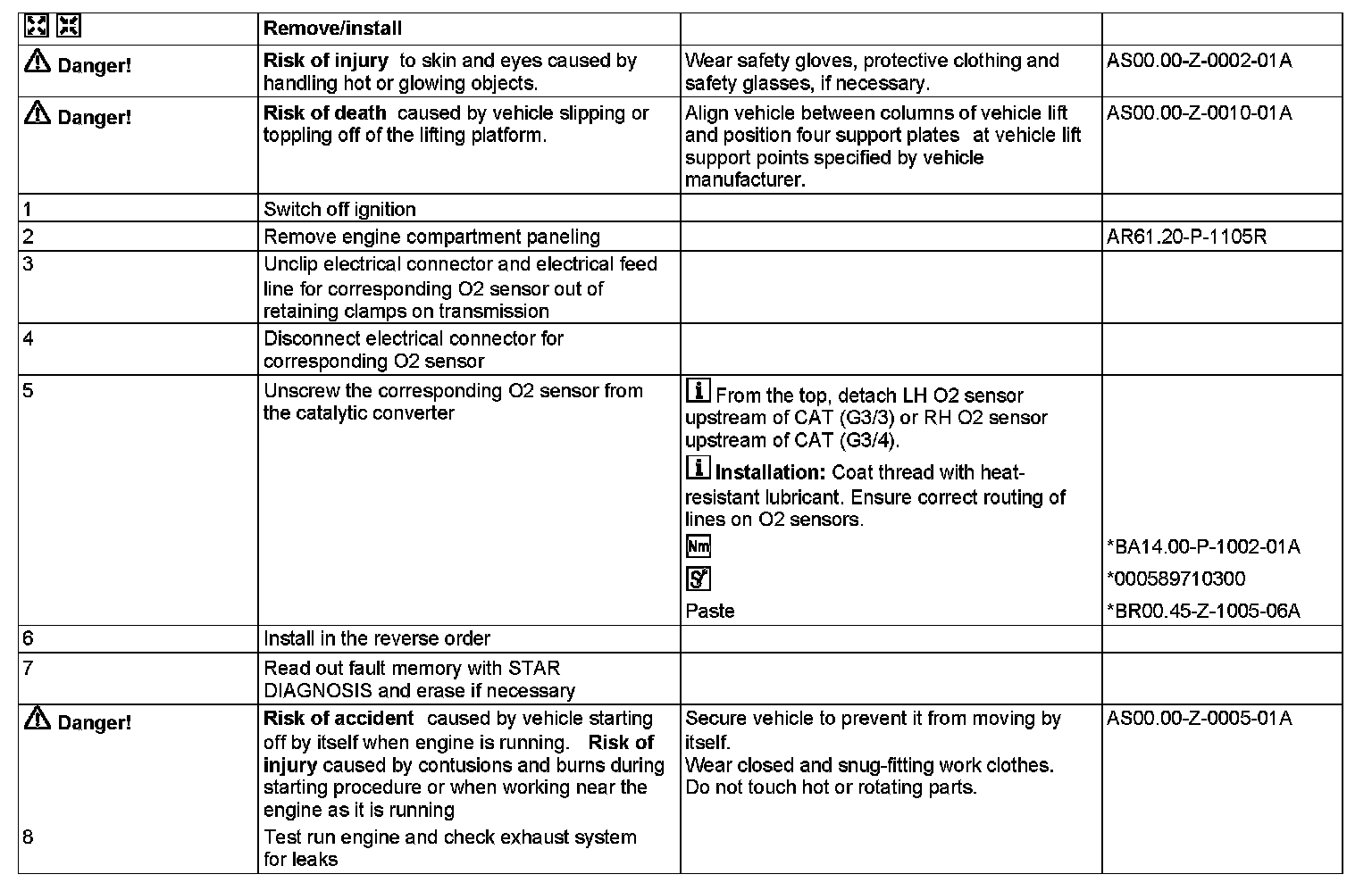

Steps 1 - 8:

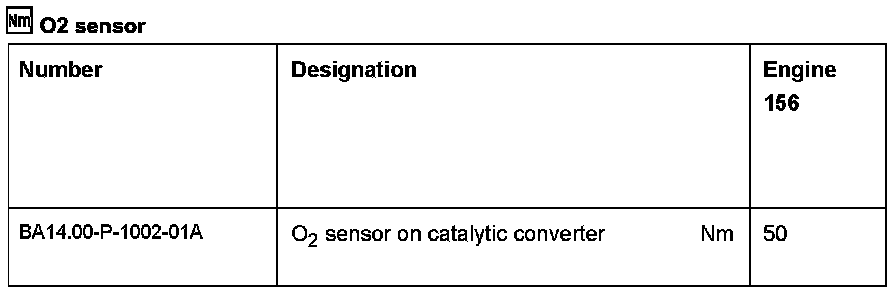

O2 Sensor:

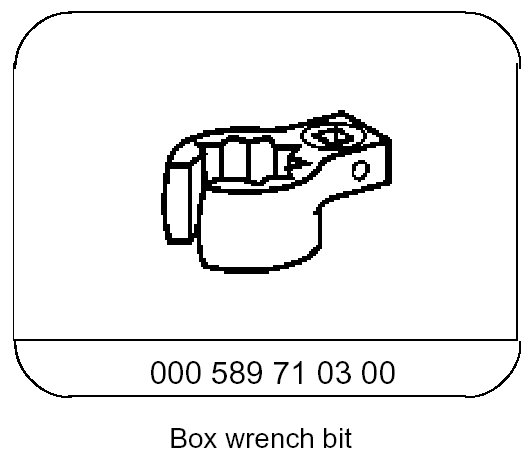

Special Tools:

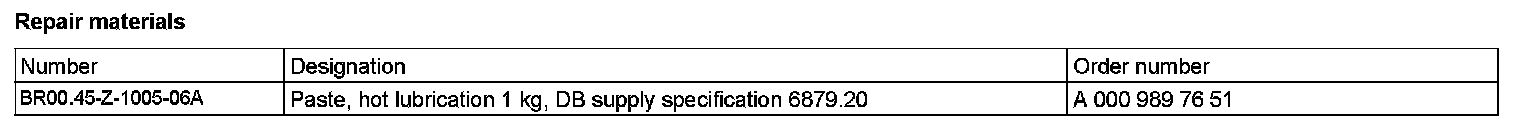

Repair Materials:
