Drive Belt: Testing and Inspection

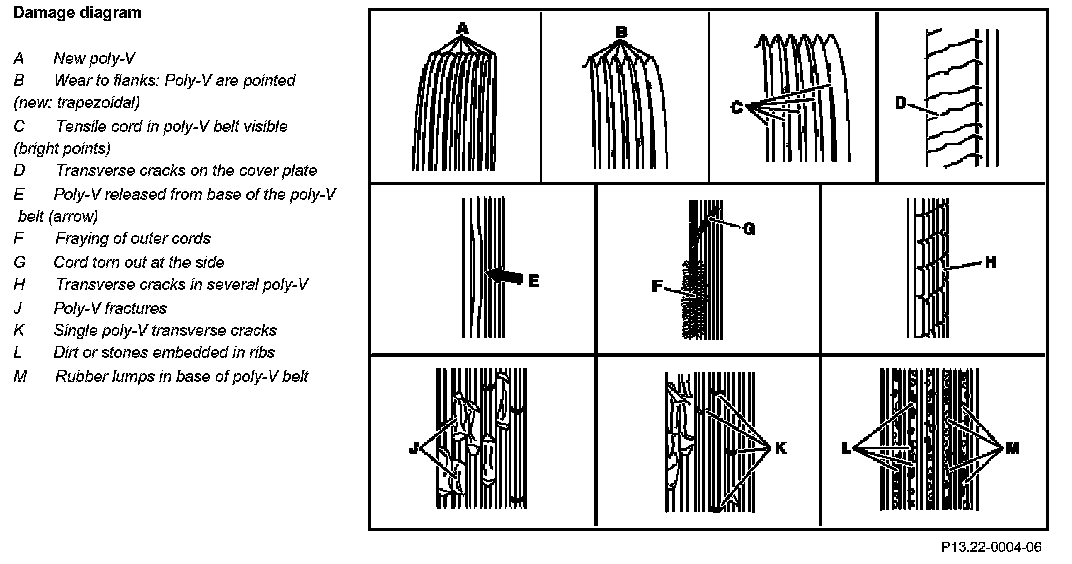

AP13.22-P-1352RX Check Visible Area Of Poly-V Belt For Wear

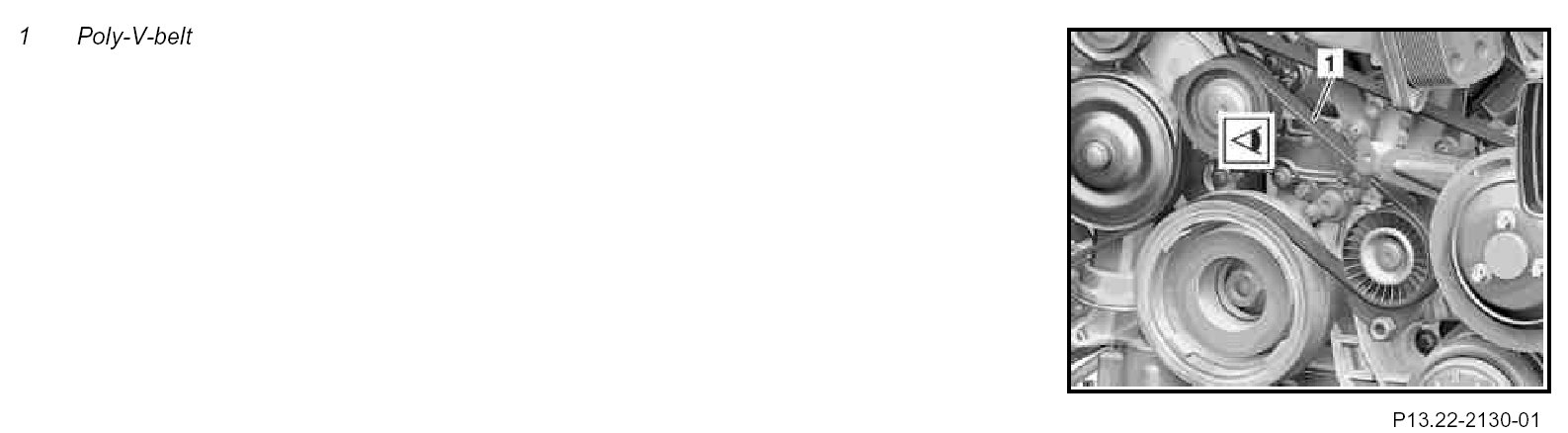

Component Identification:
Component Identification:
Steps 1 - 5:
