Mercedes Benz
>>
2012
>>
SL 63 AMG (230.470) V8-6.3L (156.981)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Ci - Do
>>

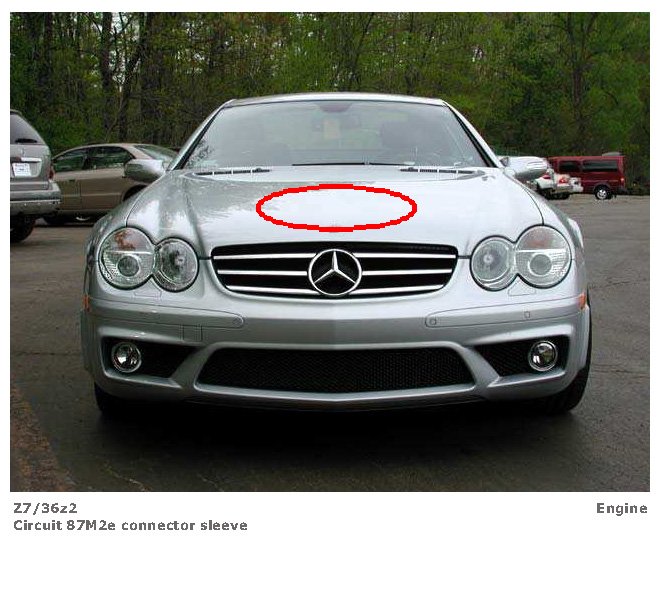

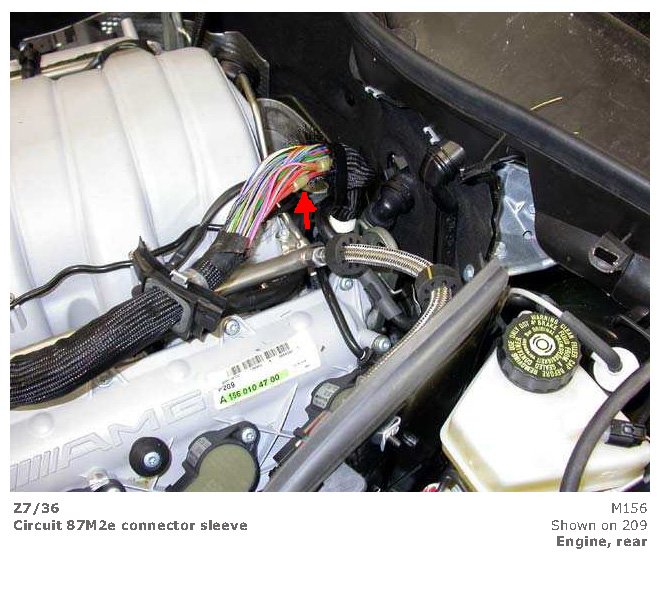

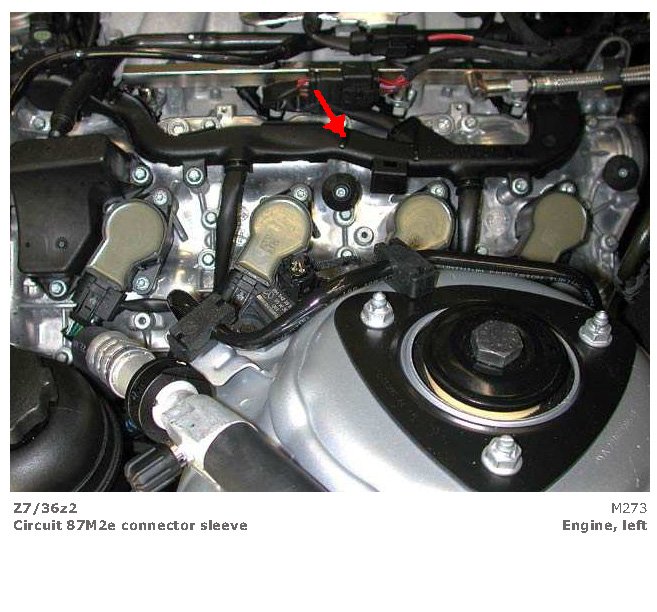

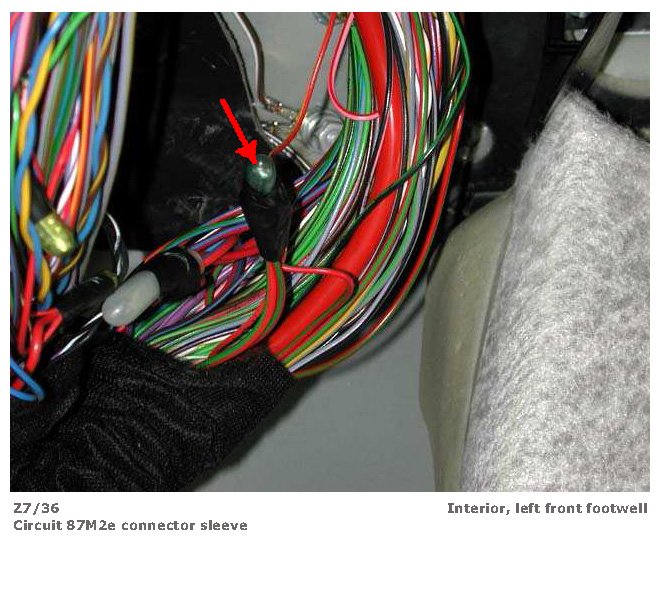

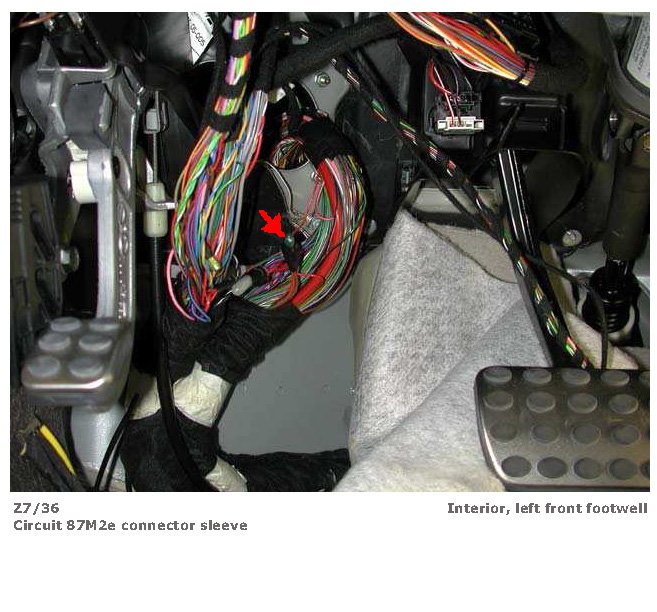

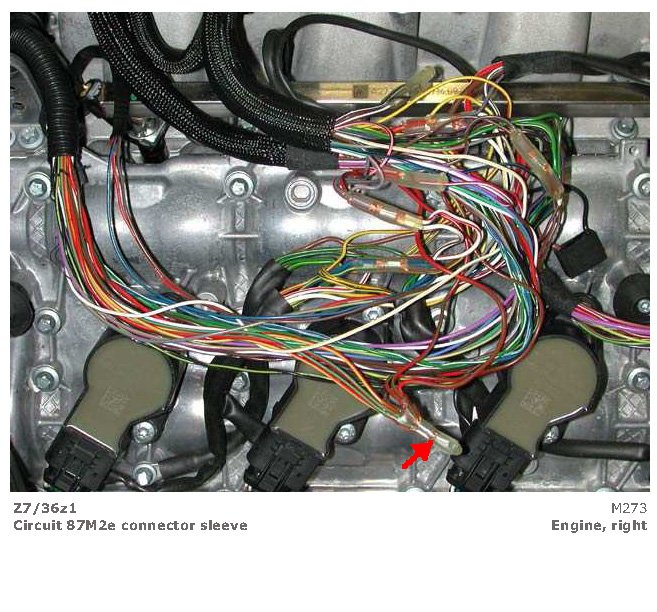

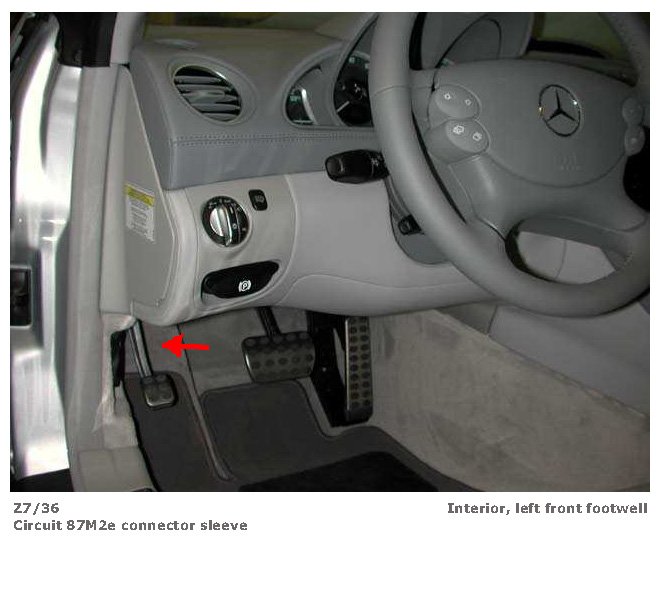

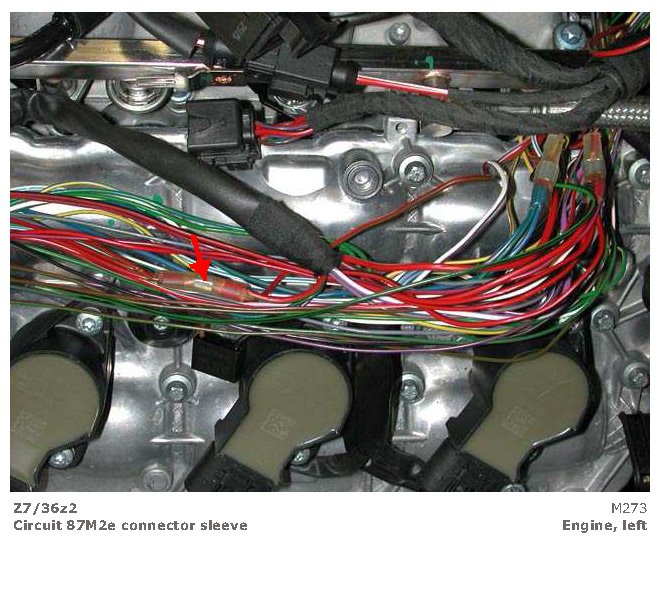

Circuit 87M2e Connector Sleeve
Circuit 87M2e Connector Sleeve
Circuit 87M2e Connector Sleeve
