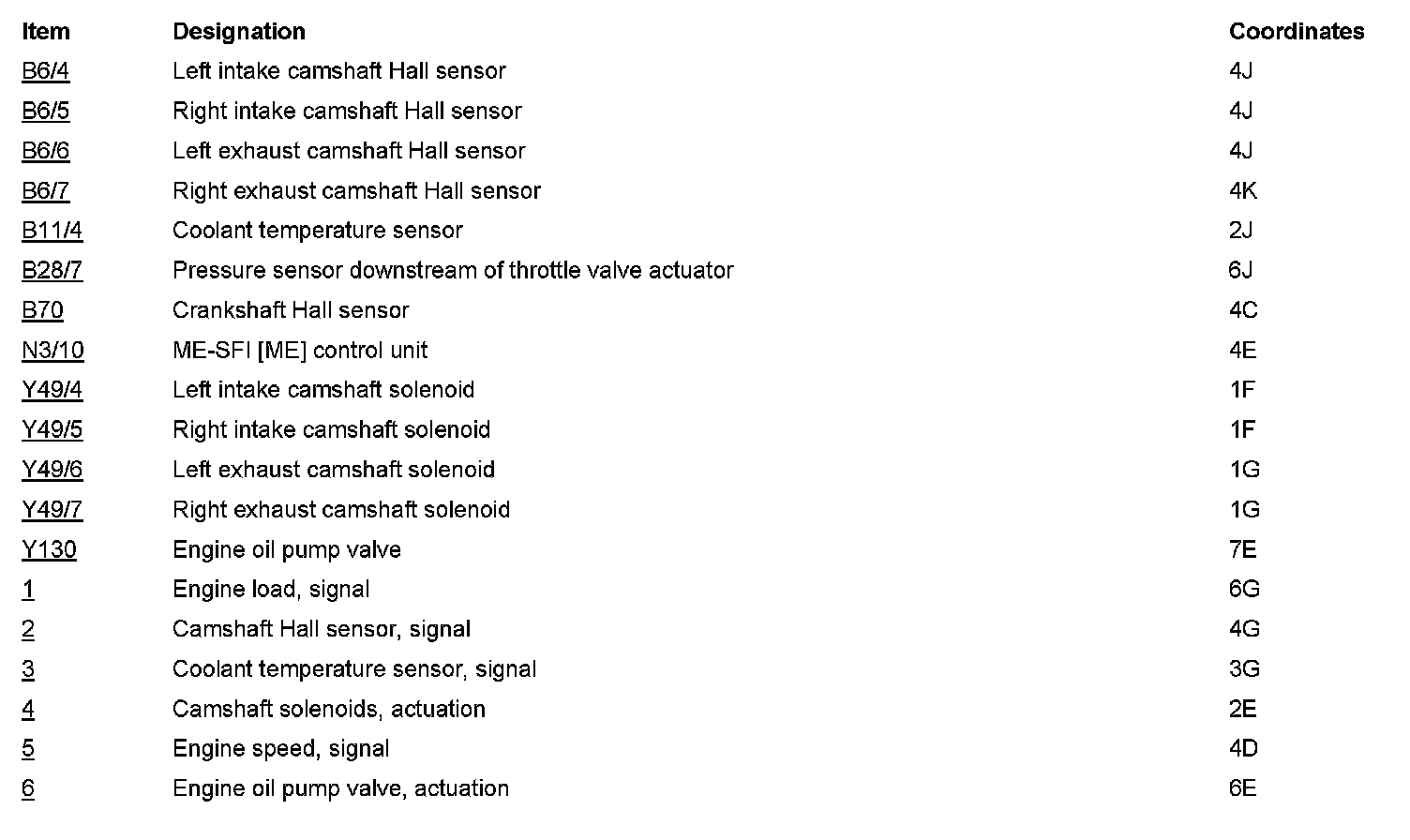

PE07.10-U-2716SAH Electrical Function Schematic For Camshaft Adjustment

PE07.10-U-2716SAH Electrical Function Schematic For Camshaft Adjustment

ENGINE 157 in MODEL 221















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
