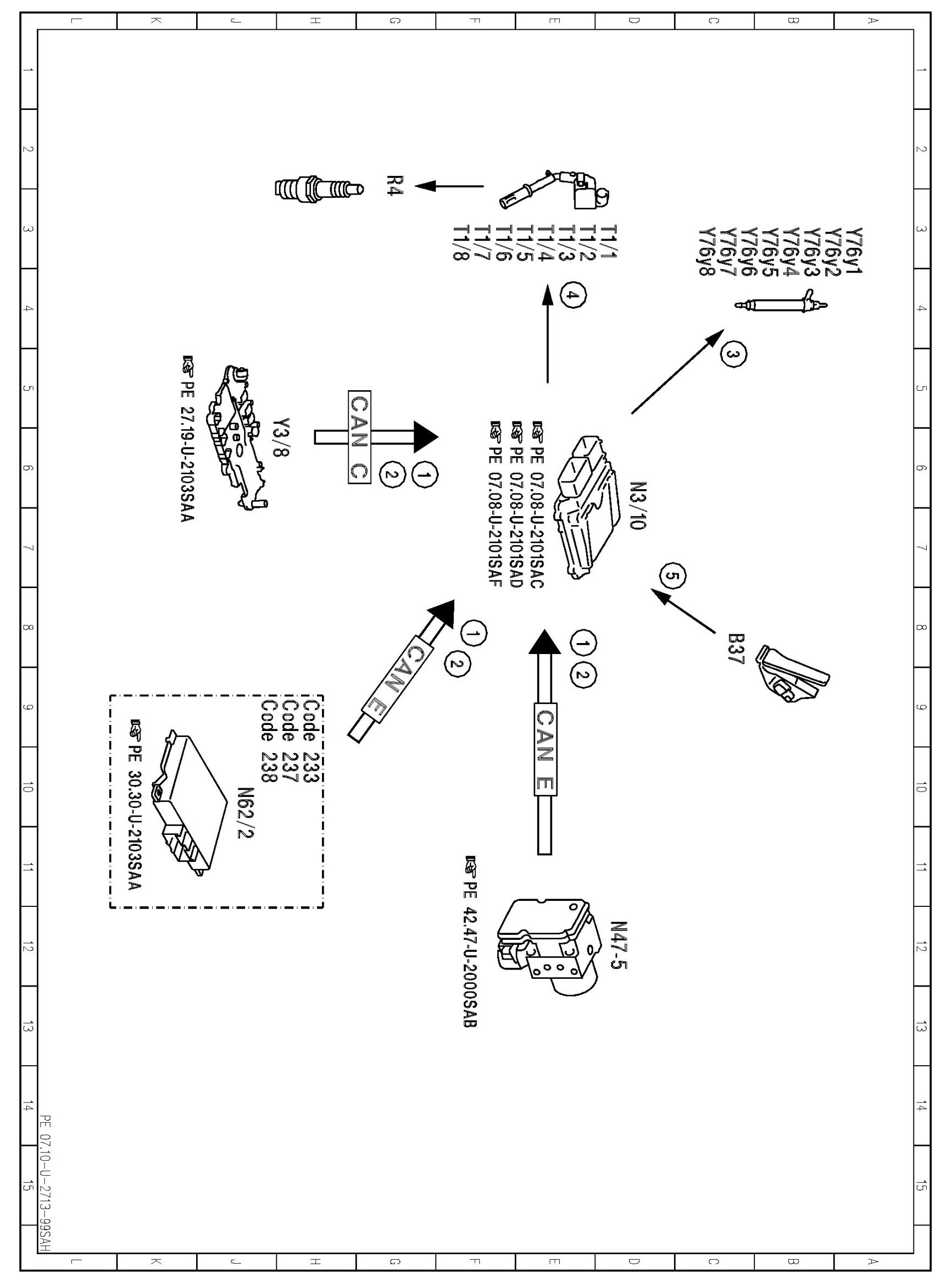

PE07.10-U-2713SAH Electrical Function Schematic For Torque Coordination

PE07.10-U-2713SAH Electrical Function Schematic For Torque Coordination

ENGINE 157 in MODEL 221



























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
